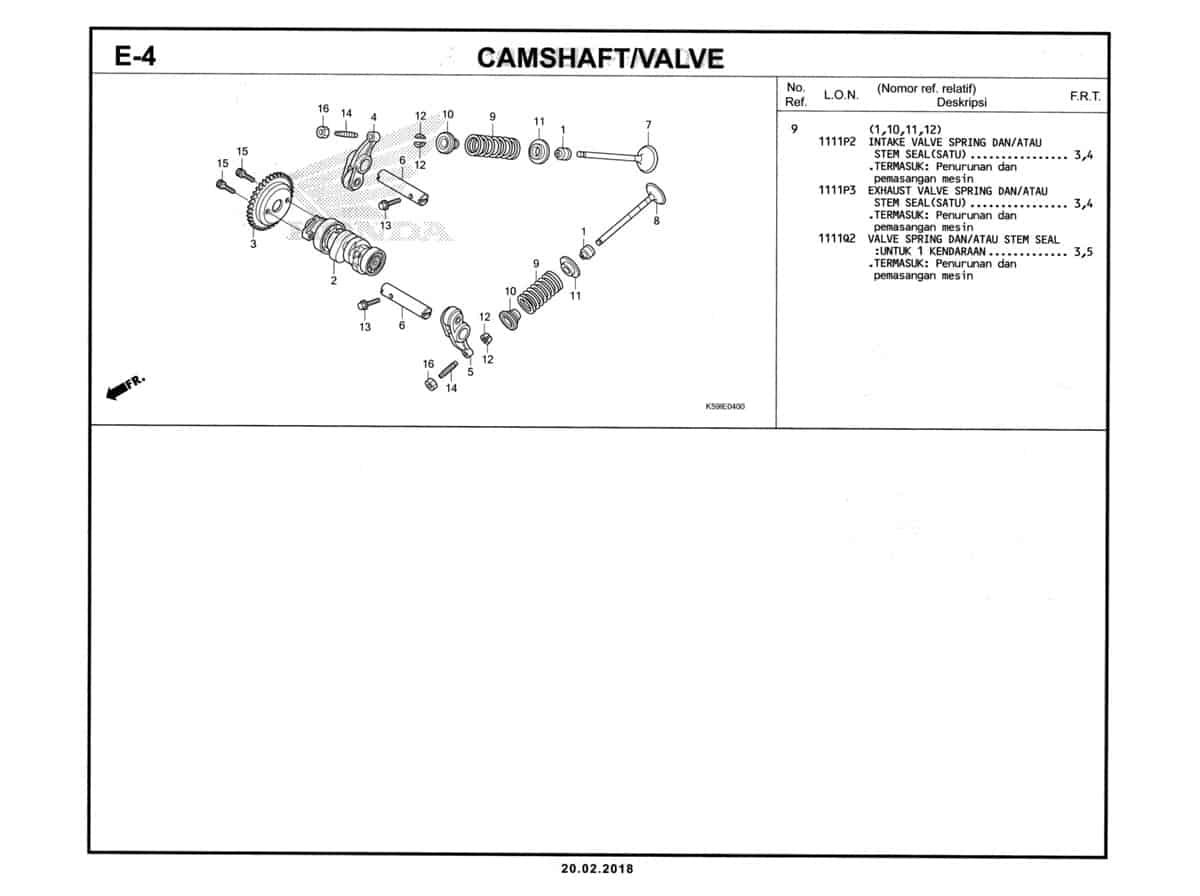

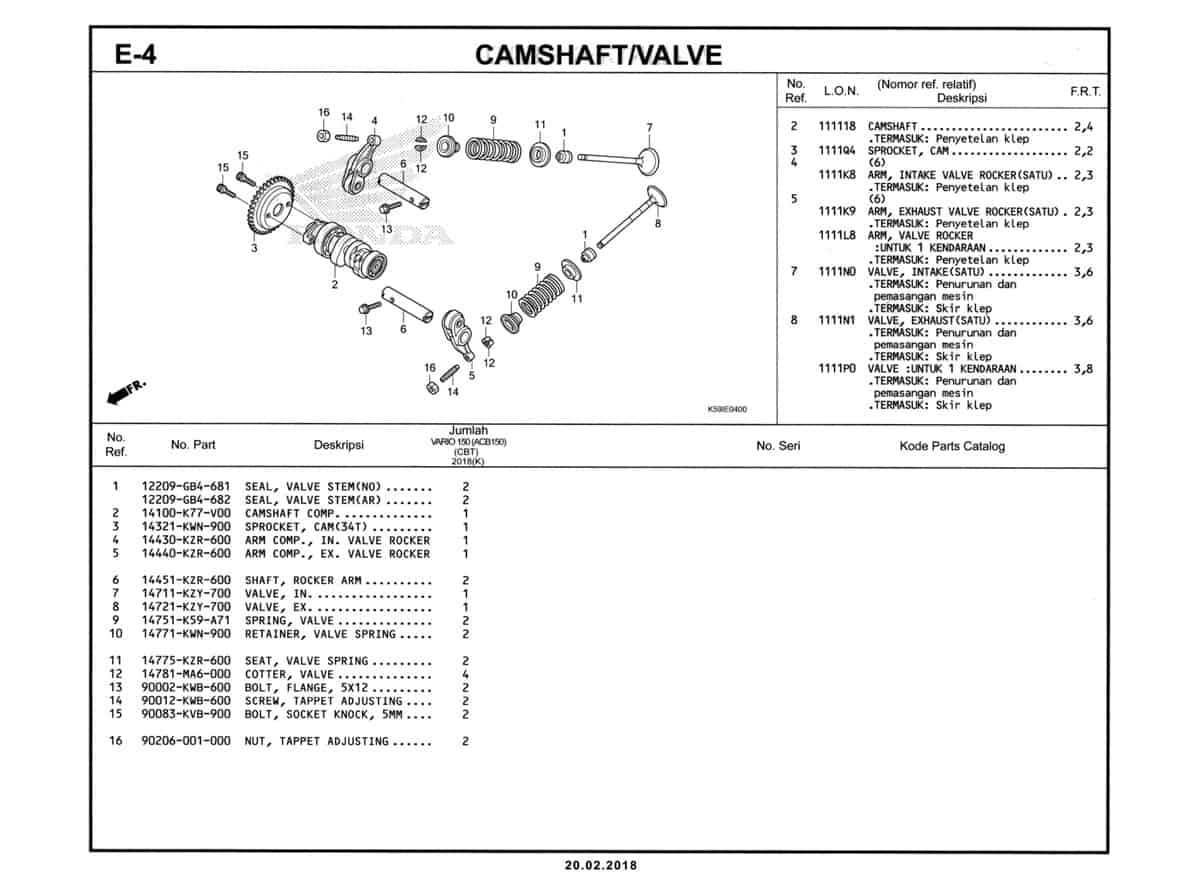

E4 – Camshaft / Valve – Katalog Honda New Vario 150 K59J

#	Informasi Produk	Visual
1	Seal Valve Stem Part Number : `12209GB4681`
1	Seal Valve Stem Part Number : `12209GB4682`
2	Shaft Comp Cam Part Number : `14100K77V00`
3	Sproket Camp Part Number : `14321KWN900`
4	Arm Comp In Valve Rocker Part Number : `14430KZR600`
5	Arm Comp Ex Valve Rocker Part Number : `14440KZR600`
6	Shaft Rocker Arm Part Number : `14451KZR600`
7	Valve, In Part Number : `14711KZY700`
8	Valve Exhaust Part Number : `14721KZY700`
9	Spring Valve Part Number : `14751K59A71`
10	Retainer Valve Spring Part Number : `14771KWN900`
10	Retainer Valve Spring Part Number : `14771KWN901`
11	Seat Valve Spring Part Number : `14775KZR600`
12	Cotter Valve Part Number : `14781MA6000`
13	Bolt Flange 5x12 Part Number : `90002KWB600`
14	Screw Tappet Adjusting Part Number : `90012KWB600`
15	Bolt Socket Knock 5mm Part Number : `90083KVB900`
16	Nut Tappet Adjust Part Number : `90206001000`
