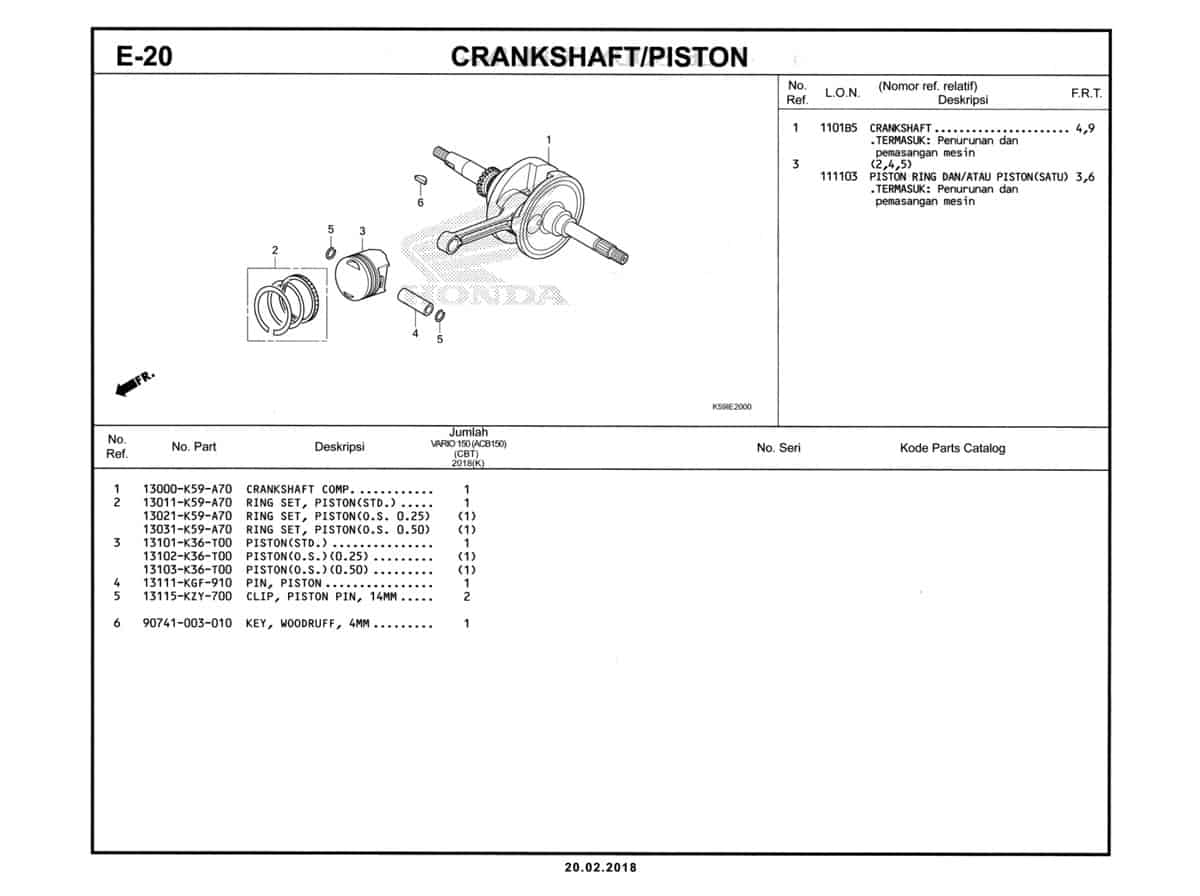

E20 – Crankshaft / Piston – Katalog Honda New Vario 150 K59J

#	Informasi Produk	Visual
1	Cranksaft Comp Part Number : `13000K59A70`
2	Ring Set Piston STD Part Number : `13011K59A70`
2	Ring Set Piston OS 0.25 Part Number : `13021K59A70`
2	Ring Set Piston OS 0.50 Part Number : `13031K59A70`
3	Piston STD Part Number : `13101K36T00`
3	Piston 0.25 Part Number : `13102K36T00`
3	Piston 0.50 Part Number : `13103K36T00`
4	Pin Piston Part Number : `13111KGF910`
4	Pin Piston Part Number : `13111KGF911`
5	Clip Piston Pin 14mm Part Number : `13115KZY700`
6	Keywoodruff 4MM Part Number : `90741003010`
