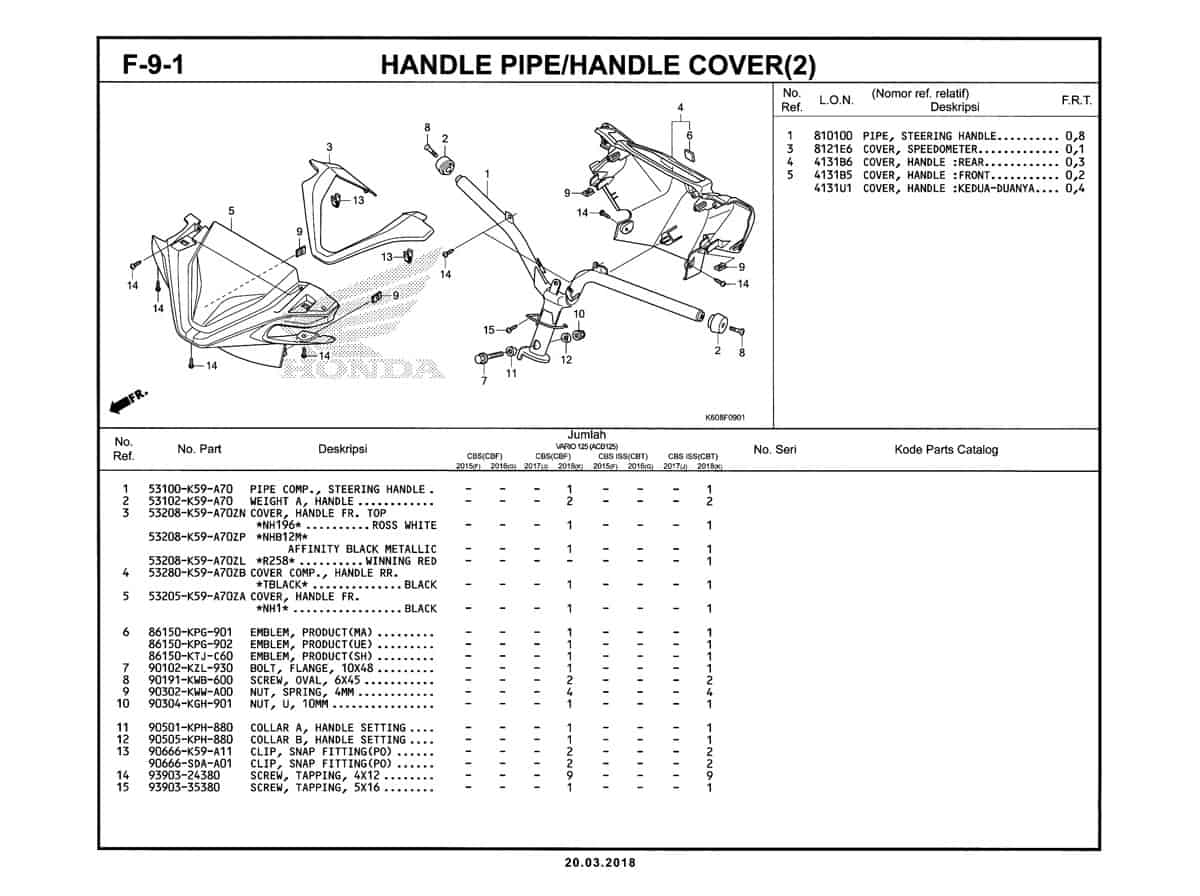

F9-1 – Handle Pipe/Handle Cover (2) – Katalog Honda New Vario 125 K60R

#	Informasi Produk	Visual
1	Pipe Comp Steering Handle Part Number : `53100K59A70`
2	Weight A Handle Part Number : `53102K59A70`
3	Cover Handle FR Top (RS WH) Part Number : `53208K59A70ZN`
3	Cover Handle FR Top (AF BL ME) Part Number : `53208K59A70ZP`
3	Cover Handle FR Top (WN RD) Part Number : `53208K59A70ZL`
4	Cover Comp Handle RR Part Number : `53280K59A70ZB`
5	Cover Handle FR Part Number : `53205K59A70ZB`
6	Emblem Wing Mark Part Number : `86150KPG901`
6	Emblem Product (UEHARA) Part Number : `86150KPG902`
6	Emblem Product Part Number : `86150KTJC60`
7	Bolt Flange DR 10X48 Part Number : `90102KZL930`
8	Screw Oval 6X45 Part Number : `90191KWB600`
9	Nut Spring 4MM Part Number : `90302KWWA00`
9	Nut Spring 4MM Part Number : `90302K97600`
10	Nut U10MM Part Number : `90304KGH901`
11	Collar A Handle Set Part Number : `90501KPH880`
12	Collar B Handle Set Part Number : `90505KPH880`
13	Clip Snap Fit(PO) Part Number : `90666K59A11`
13	Clip Snap Fit(PO) Part Number : `90666SDAA01`
14	Screw Tapping 4X12 Part Number : `9390324380`
15	Screw Tapping 5X16 Part Number : `9390335380`
