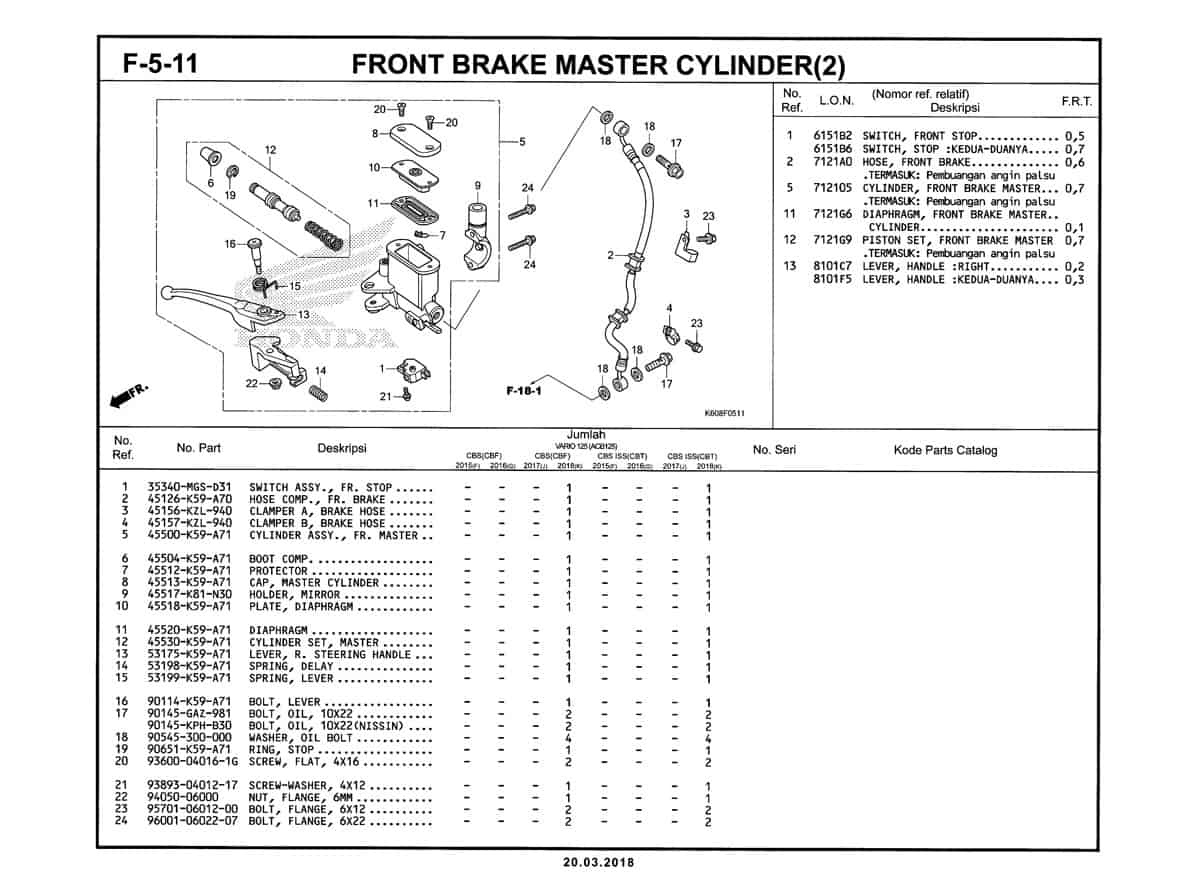

F5-11 – Front Brake Master Cylinder (2) – Katalog Honda New Vario 125 K60R

#	Informasi Produk	Visual
1	Switch FR Stop Assy Part Number : `35340MGSD31`
1	Switch FR Stop Assy Part Number : `35340KWB601`
2	Hose Comp FR Brake Part Number : `45126K59A70`
2	Hose Comp FR Brake Part Number : `45126K59A71`
3	Clamper A Brake Hose Part Number : `45156KZL940`
4	Clamper B Brake Hose Part Number : `45157KZL940`
5	M/C Air Assy Part Number : `45500K59A71`
6	Boot Comp Part Number : `45504K59A71`
7	Protector Part Number : `45512K59A71`
8	Cap Master Cylinder Part Number : `45513K59A71`
9	Holder Mirror Part Number : `45517K81N30`
10	Plate Diaphragm Part Number : `45518K59A71`
11	Diaphragm Part Number : `45520K59A71`
12	Cylinder Set Master Part Number : `45530K59A71`
13	Lever R Steering Handle Part Number : `53175K59A71`
14	Spring Delay Part Number : `53198K59A71`
15	Spring Lever Part Number : `53199K59A71`
16	Bolt Lever Part Number : `90114K59A71`
17	Bolt Oil 10X22 Part Number : `90145GAZ981`
17	Bolt Oil, 10X22 (NISSIN) Part Number : `90145KPHB30`
18	Washer Oil Bolt Part Number : `90545300000`
19	Ring Stop Part Number : `90651K59A71`
20	Screw Flat 4X16 Part Number : `93600040161G`
21	Screw Washer 4X12 Part Number : `938930401217`
22	Nut Flange 6MM Part Number : `9405006000`
23	Bolt Flange 6X12 Part Number : `957010601200`
24	Bolt Flange 6X22 Part Number : `957010602207`
