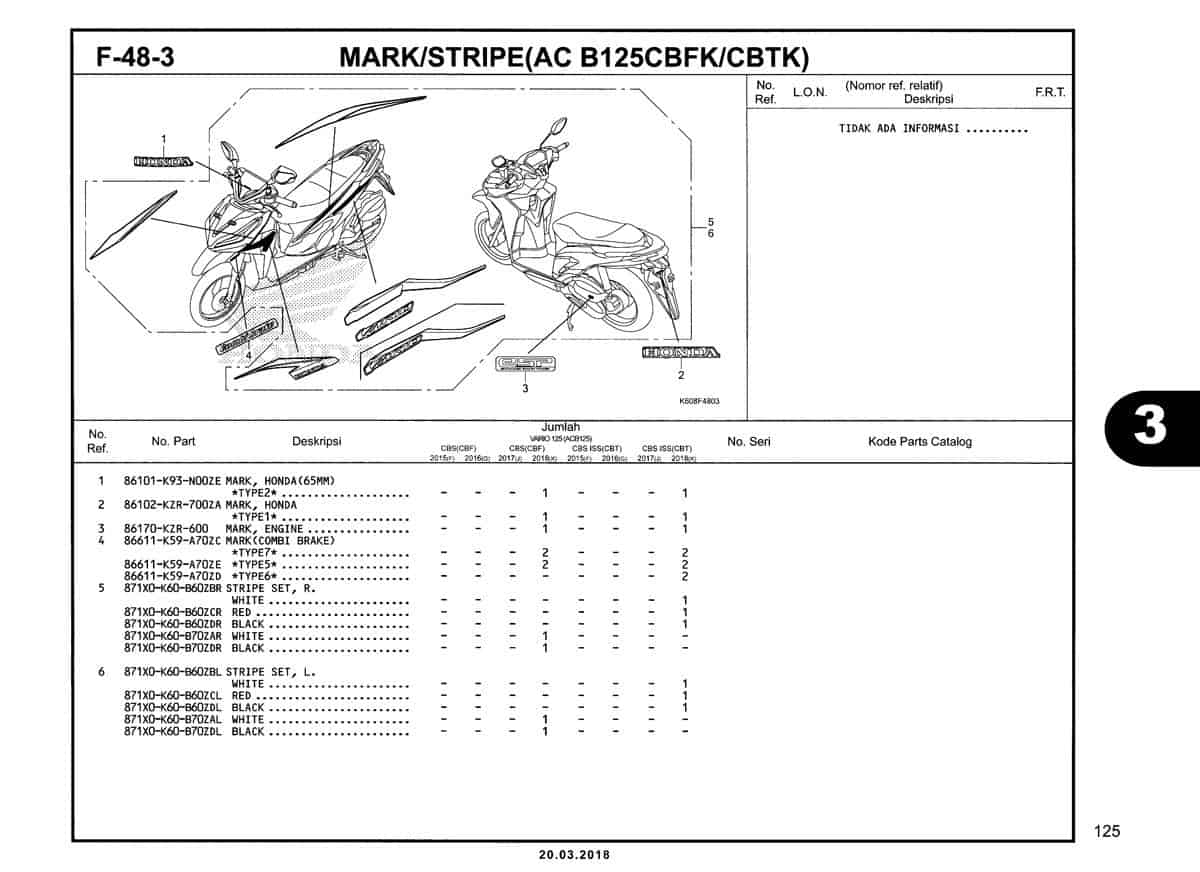

F48-3 – Mark/Stripe (ACB125CBFK/CBTK) – Katalog Honda New Vario 125 K60R

#	Informasi Produk	Visual
1	Mark, Honda 65 MM TYPE 2 Part Number : `86101K93N00ZE`
2	Mark, Honda 60MM TYPE 1 Part Number : `86102KZR700ZA`
3	Mark Engine Part Number : `86170KZR600`
4	Mark, Combi Brake TYPE 7 Part Number : `86611K59A70ZC`
4	Mark, Combi Brake TYPE 5 Part Number : `86611K59A70ZE`
4	Mark, Combi Brake TYPE 6 Part Number : `86611K59A70ZD`
5	Stripe Set ISS R (WHITE) Part Number : `871X0K60B60ZBR`
5	Stripe Set R ISS (RED) Part Number : `871X0K60B60ZCR`
5	Stripe Set R ISS (BLACK) Part Number : `871X0K60B60ZDR`
5	Stripe Set R (WHITE) Part Number : `871X0K60B70ZAR`
5	Stripe Set R (BLACK) Part Number : `871X0K60B70ZDR`
6	Stripe Set L ISS (WHITE) Part Number : `871X0K60B60ZBL`
6	Stripe Set L ISS (RED) Part Number : `871X0K60B60ZCL`
6	Stripe Set L ISS (BLACK) Part Number : `871X0K60B60ZDL`
6	Stripe Set L (WHITE) Part Number : `871X0K60B70ZAL`
6	Stripe Set L (BLACK) Part Number : `871X0K60B70ZDL`
