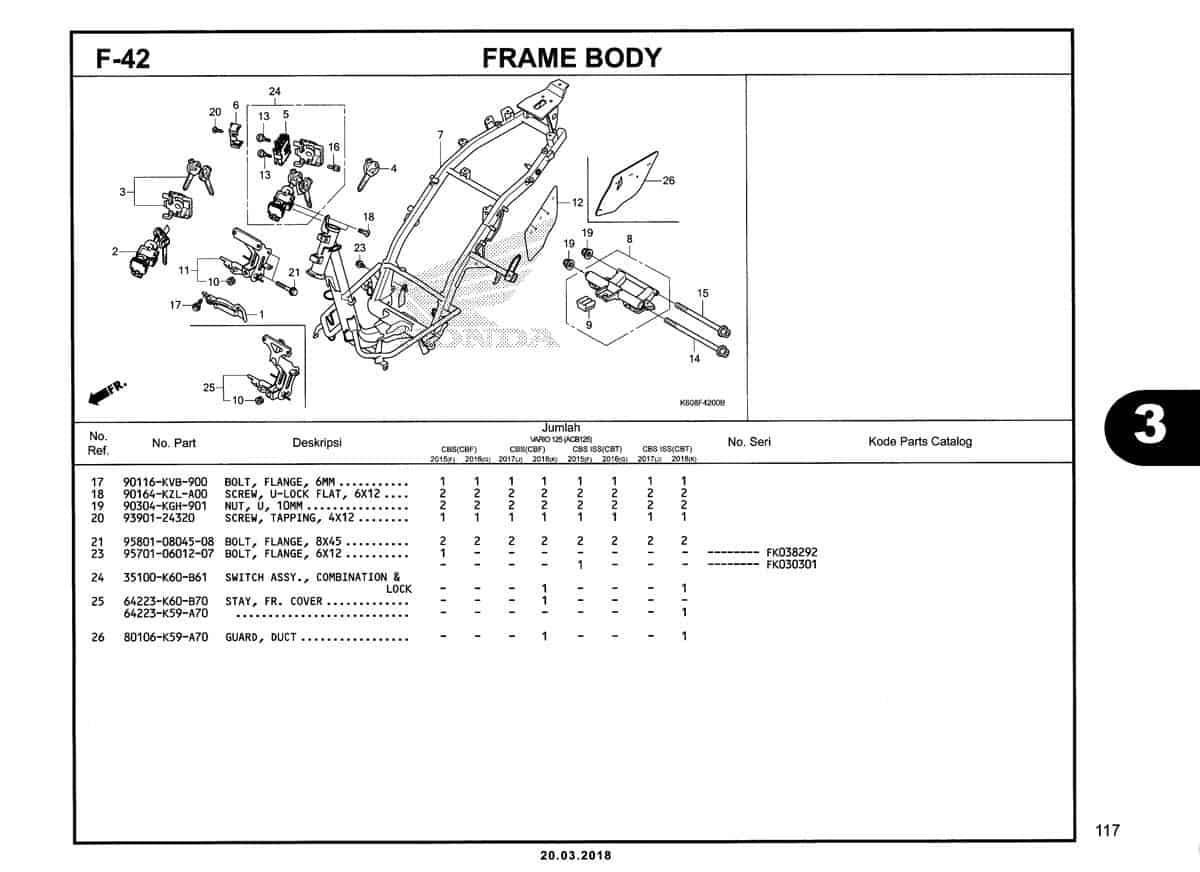

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Guard, Engine Control Unit | 30405KZR600 |
|
| 2 | Switch Assy Comb | 35101K46N01 |
|
| 2 | Switch Comp,Comb & Lock | 35101K97A01 |
|
| 3 | Shutter, Key | 35110K59A12 |
|
| 3 | Shutter, Key | 35110K60B61 |
|
| 4 | Key Blank | 35121K46N00 |
|
| 5 | Switch Assy Seat Opener | 35190K46N01 |
|
| 5 | Switch Assy Seat Opener | 35190K46N02 |
|
| 5 | Switch Assy Seat Opener | 35190K1AN01 |
|
| 6 | Cover Cable | 35191K27V01 |
|
| 7 | Frame Body | 50100K59305 | - |
| 7 | Frame Body Comp | 50100K59A70 | - |
| 8 | Link Assy Eng Hanger | 50350K59A10 |
|
| 9 | Rubber Link Stopper | 50352K59A10 |
|
| 10 | Rubber Screen Setting | 64216GJ2730 |
|
| 11 | Stay FR Cover | 64223K60T00 |
|
| 12 | Guard Duct | 80105K59A10 |
|
| 13 | Screw Screen Set | 90101MT4000 |
|
| 14 | Bolt Flange 10X270 | 90105KVY900 |
|
| 15 | Bolt Flange 10X238 | 90106GCCC50 |
|
| 16 | Bolt Socket 5X9 | 90111MR5000 |
|
| 17 | Bolt Flange 6MM | 90116KVB900 |
|
| 18 | Screw U-Lock Flat 6X12 | 90164KZLA00 |
|
| 19 | Nut U10MM | 90304KGH901 |
|
| 20 | Screw Tapping 4X12 | 9390124320 |
|
| 21 | Bolt Flange 8X45 | 958010804508 |
|
| 23 | Bolt Flange 6X12 | 957010601207 |
|
| 24 | Switch Assy Comb & Lock | 35100K60B61 |
|
| 24 | Switch Assy Comb & Lock | 35100K60B62 |
|
| 25 | Stay FR Cover | 64223K60B70 |
|
| 25 | Stay FR Cover | 64223K59A70 |
|
| 26 | Guard Duct | 80106K59A70 |
|
