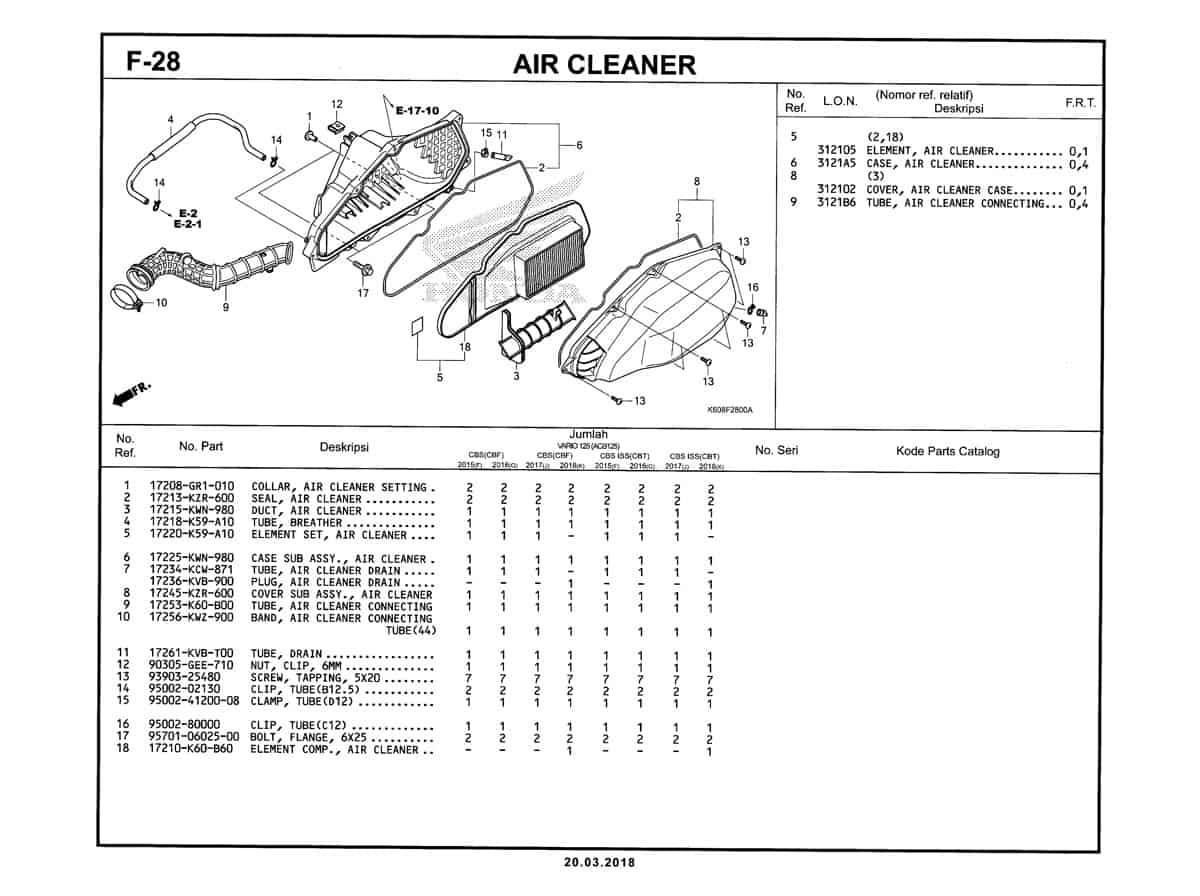

F28 – Air Cleaner – Katalog Honda New Vario 125 K60R

#	Informasi Produk	Visual
1	Collar Air/C Set Part Number : `17208GR1010`
2	Seal, Air Cleaner Part Number : `17213KZR600`
3	Duct, Air Cleaner Part Number : `17215KWN980`
4	Tube Breather Part Number : `17218K59A10`
6	Case Sub Assy Air Cleaner Part Number : `17225KWN980`
7	Plug A/C Drain Part Number : `17236KVB900`
8	Cover Sub Assy, Air Cleaner Part Number : `17245KZR600`
9	Tube A/C Connecting Part Number : `17253K60B00`
10	Band A/C Connecting Part Number : `17256KWZ900`
11	Tube Drain Part Number : `17261KVBT00`
12	Nut Clip 6MM Part Number : `90305GEE710`
13	Screw Tapping 5X20 Part Number : `9390325480`
14	Clip Tube (B12.5) Part Number : `9500202130`
15	Clamp D12 Tube Part Number : `950024120008`
16	Clip Tube (C12) Part Number : `9500280000`
17	Bolt Flange 6X25 Part Number : `957010602500`
18	Element Comp,AIR/C Part Number : `17210K60B60`
18	Element Comp,AIR/C Part Number : `17220KZR600`
