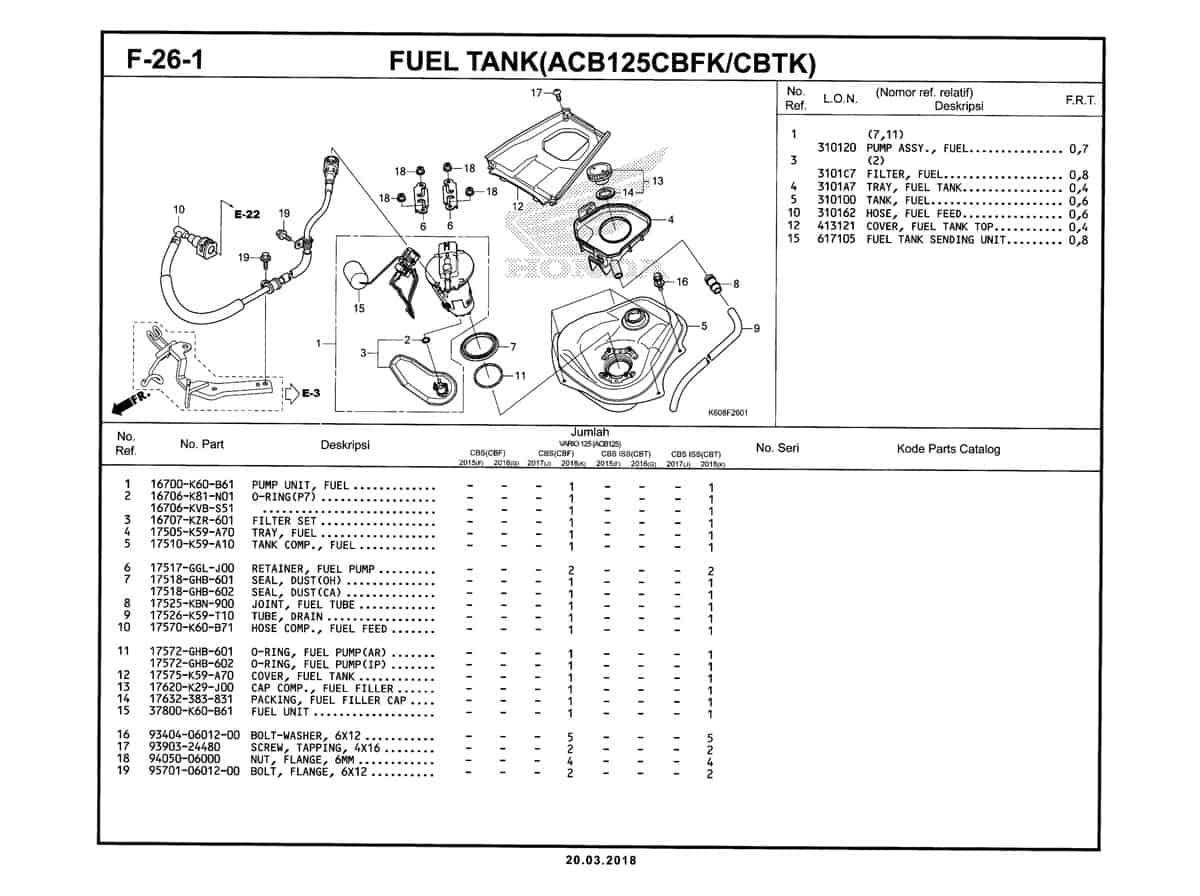

F26-1 – Fuel Tank (ACB125CBFK/CBTK) – Katalog Honda New Vario 125 K60R

#	Informasi Produk	Visual
1	Unit Assy Fuel Pump Part Number : `16700K60B61`
1	Unit Assy Fuel Pump Part Number : `16700K60B11`
2	O-Ring P7 Part Number : `16706K81N01`
2	O-Ring P7 Part Number : `16706KVBS51`
3	Filter Set Part Number : `16707KZR601`
4	Tray Fuel Part Number : `17505K59A70`
5	Tank Comp Fuel Part Number : `17510K59A10`
6	Retainer Fuel Pump Part Number : `17517GGLJ00`
7	Seal Dust Part Number : `17518GHB601`
7	Seal Dust Part Number : `17518GHB602`
8	Joint Fuel Tube Part Number : `17525KBN900`
9	Tube Drain Part Number : `17526K59T10`
10	Hose Comp Fuel Feed Part Number : `17570K60B71`
11	O-Ring Fuel Pump Part Number : `17572GHB601`
11	O-Ring Fuel Pump Part Number : `17572GHB602`
12	Cover Fuel Tank Part Number : `17575K59A70`
13	Cap Comp,Fuel Filler Part Number : `17620K29J00`
14	Packing Fuel Filler Cap Part Number : `17632383831`
15	Fuel Unit Part Number : `37800K60B61`
16	Bolt Washer 6X12 Part Number : `934040601200`
17	Screw Tapping 4X16 Part Number : `9390324480`
18	Nut Flange 6MM Part Number : `9405006000`
19	Bolt Flange 6X12 Part Number : `957010601200`
