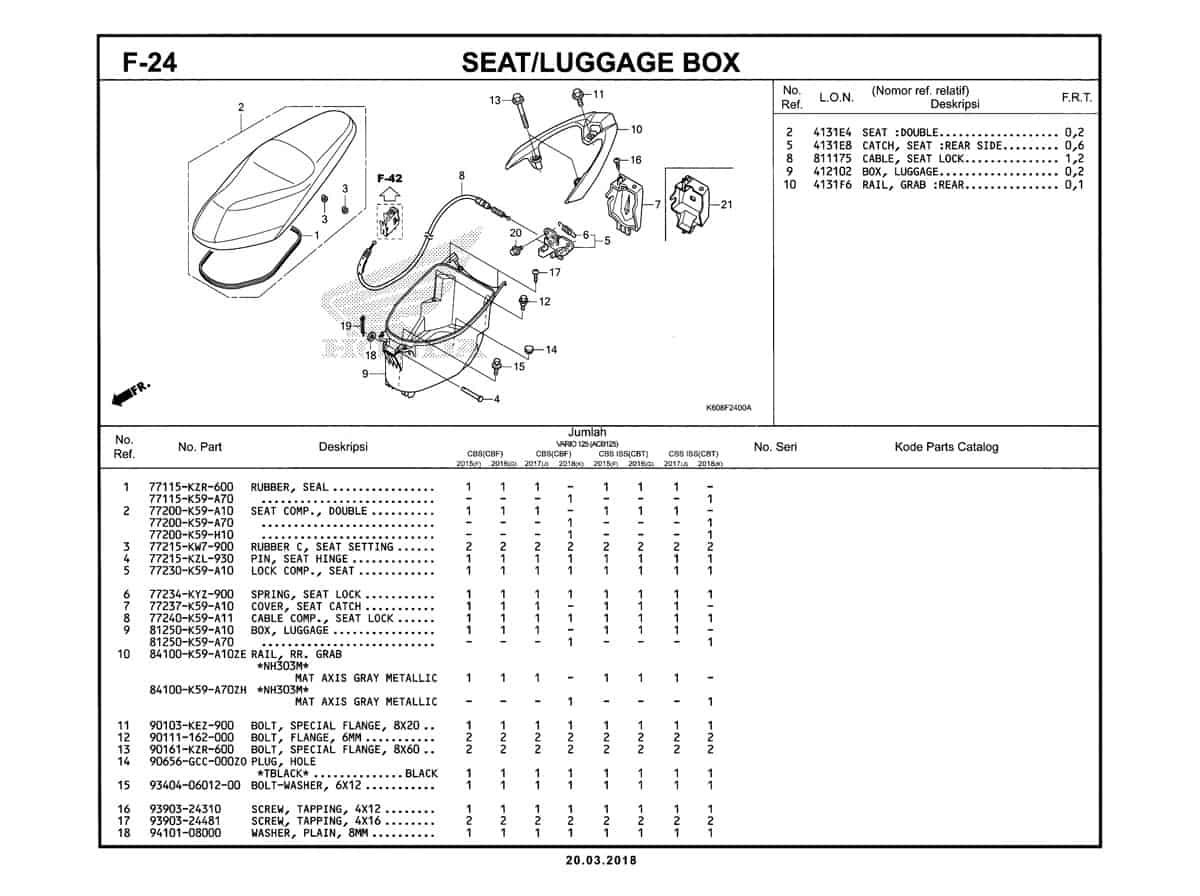

F24 – Seat/Luggage Box – Katalog Honda New Vario 125 K60R

#	Informasi Produk	Visual
1	Rubber Seal Part Number : `77115K59A70`
2	Seat Comp Double Part Number : `77200K59A70`
2	Seat Comp Double Part Number : `77200K59H10`
3	Rubber C Seat Set Part Number : `77215KW7900`
4	Pin Seat Hinge Part Number : `77215KZL930`
5	Lock Comp., Seat Part Number : `77230K59A10`
6	Spring Seat Lock Part Number : `77234KYZ900`
8	Cable Comp Seat Lock Part Number : `77240K59A11`
9	Box Luggage Part Number : `81250K59A70`
10	Rail RR Grab NH-303M Part Number : `84100K59A70ZH`
10	Rail RR Grab (MT BROWN) Part Number : `84100K59A70ZU`
10	Rail RR Grab (AF BLACK MET) Part Number : `84100K59A70ZK`
11	Bolt Special Flange 8X20 Part Number : `90103KEZ900`
12	Bolt Flange 6MM Part Number : `90111162000`
13	Bolt Special Flange 8X60 Part Number : `90161KZR600`
14	Plug Hole Part Number : `90656GCC000ZC`
14	Plug Hole Part Number : `90656GCC000ZE`
15	Bolt Washer 6X12 Part Number : `934040601200`
16	Screw Tapping 4X12 Part Number : `9390324310`
17	Screw Tapping 4X16 Part Number : `9390324480`
18	Washer Plain 8MM Part Number : `9410108000`
19	Pin Split 1.6X18 Part Number : `9420116180`
20	Bolt Flange 6X12 Part Number : `957010601200`
21	Cover Seat Catch Part Number : `77237K59A70`
