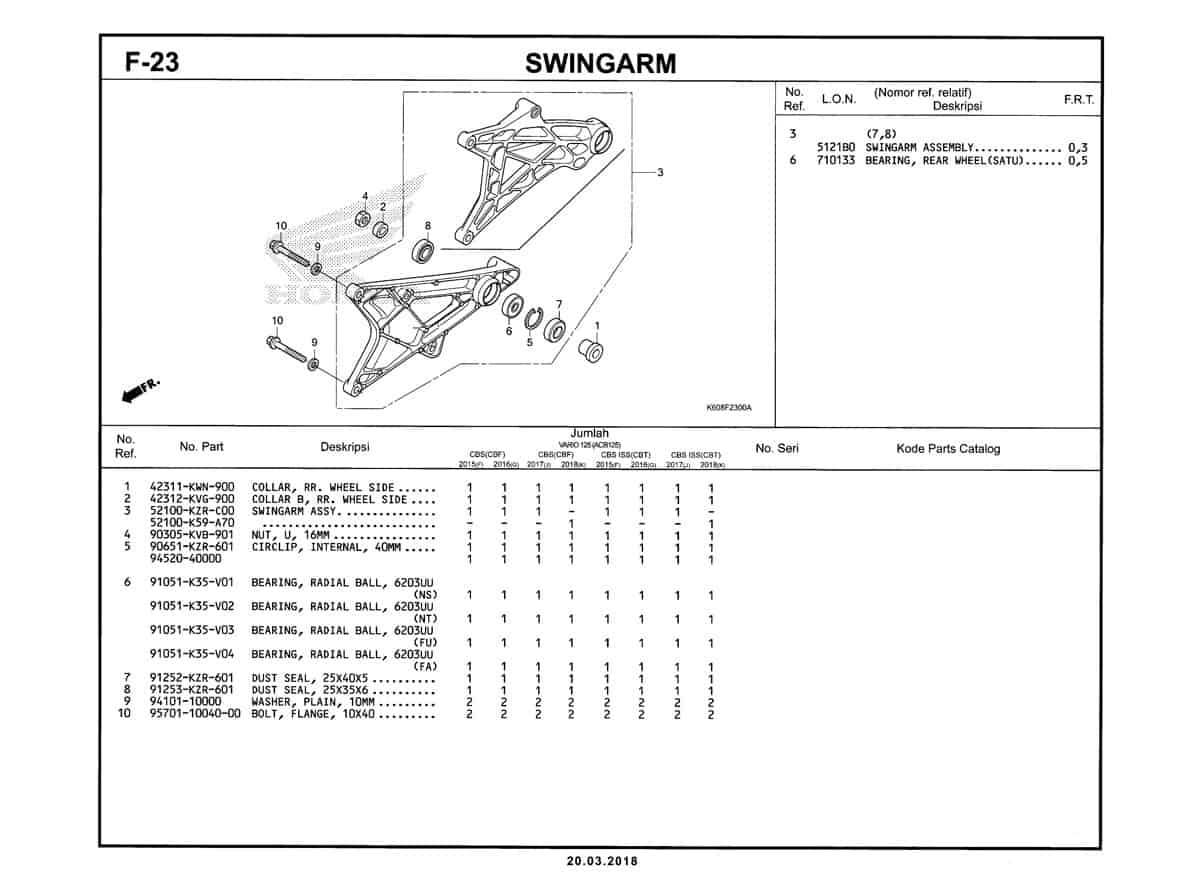

F23 – Swingarm – Katalog Honda New Vario 125 K60R

#	Informasi Produk	Visual
1	Collar RR Wheel Side Part Number : `42311KWN900`
2	Collar B, RR Wheel Side Part Number : `42312KVG900`
3	Swingarm Assy Part Number : `52100K59A70`
4	Nut U 16MM Part Number : `90305KVB901`
5	Circlip Internal 40MM Part Number : `90651KZR601`
5	Circlip Internal 40MM Part Number : `9452040000`
6	Bearing Radial Ball 6203UU Part Number : `91051K35V01`
6	Bearing Radial Ball 6203UU Part Number : `91051K35V02`
6	Bearing Ball Radial 6 Part Number : `91051K35V03`
6	Bearing Ball Radial 6 Part Number : `91051K35V04`
7	Dust Seal 25X40X5 Part Number : `91252KZR601`
8	Dust Seal 25X35X6 Part Number : `91253KZR601`
9	Washer Plain 10MM Part Number : `9410110000`
10	Bolt Flange 10X40 Part Number : `957011004000`
