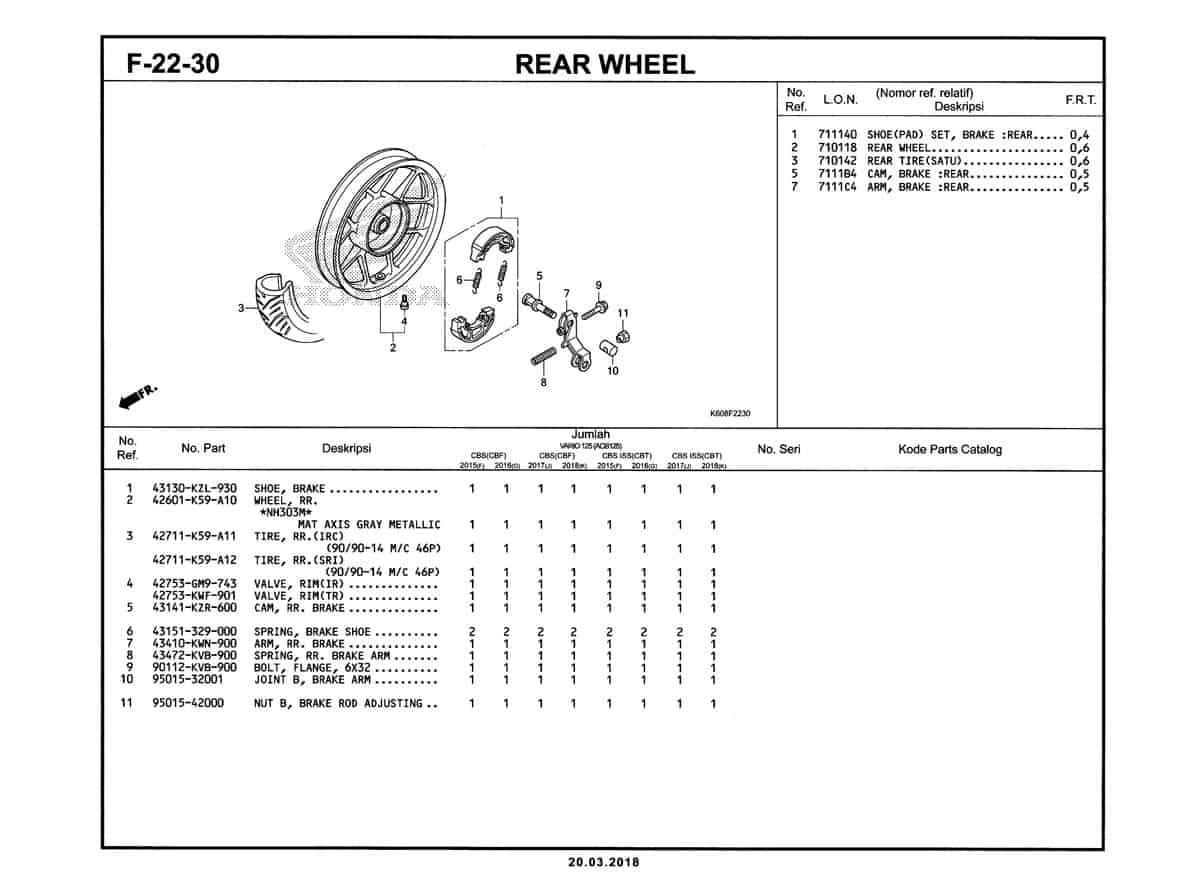

F22-30 – Rear Wheel – Katalog Honda New Vario 125 K60R

#	Informasi Produk	Visual
1	Brake Shoe Part Number : `43130KZL930`
1	Brake Shoe Part Number : `43130K44V80`
1	Brake Shoe Part Number : `06430KWN900`
1	Brake Shoe Part Number : `06430KZL930`
1	Brake Shoe Part Number : `06430K44V80`
2	Wheel RR Part Number : `42601K59A12`
2	Wheel Sub Assy Rear Part Number : `42650K59A10ZA`
3	Tire RR (90/90-14 NR83) Part Number : `42711K59A11`
3	Tire RR (90/90-14 FT235) Part Number : `42711K59A12`
4	Valve Rim (INOUE) Part Number : `42753GM9743`
4	Valve Rim (TRITON) Part Number : `42753KWF901`
5	Cam, RR. Brake Part Number : `43141KZR600`
6	Spring Brake Shoerear Part Number : `43151329000`
7	Arm Rear Brake Part Number : `43410KWN900`
8	Spring RR Brake Arm Part Number : `43472KVB900`
9	Bolt Flange 6X32 Part Number : `90112KVB900`
10	Joint Brake Arm Part Number : `9501532001`
11	Nut Adjust Part Number : `9501542000`
