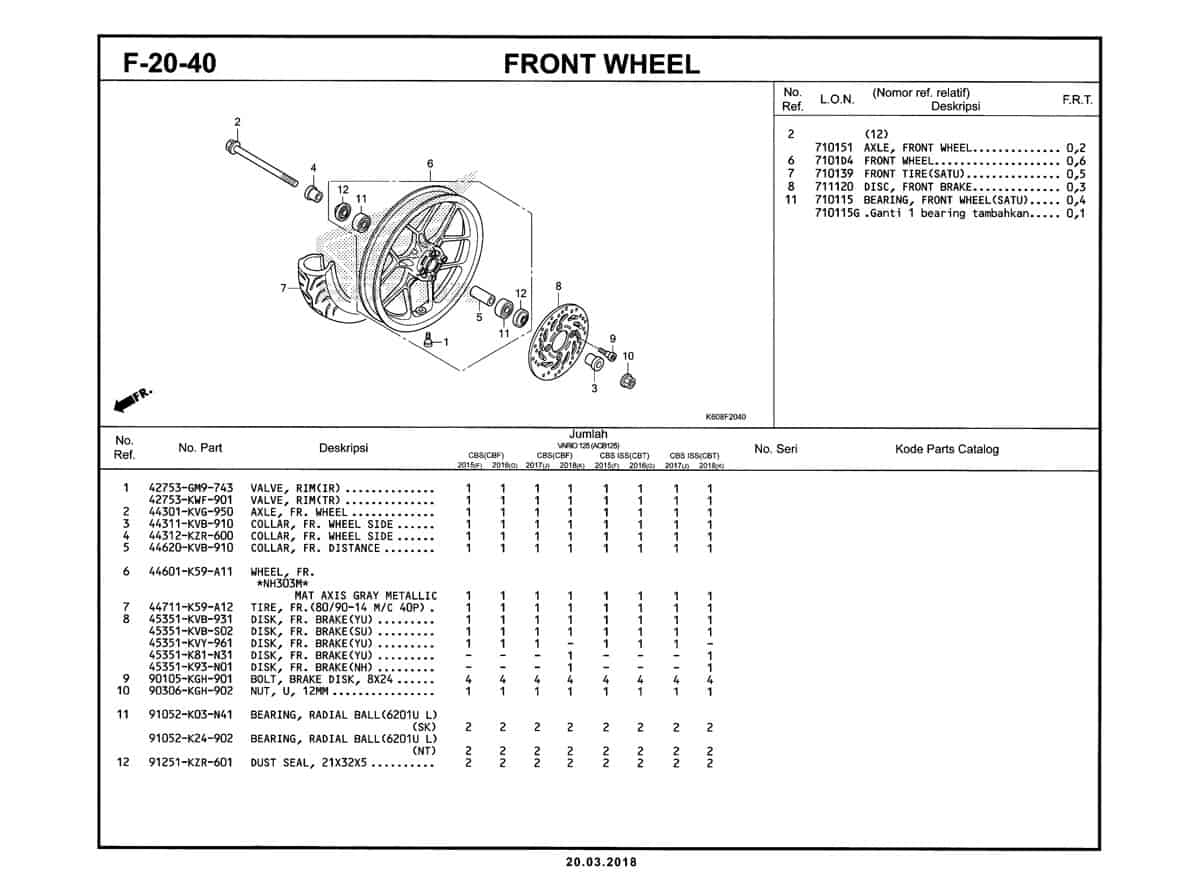

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Valve Rim (INOUE) | 42753GM9743 |
|
| 1 | Valve Rim (TRITON) | 42753KWF901 |
|
| 2 | Axle FR Wheel | 44301KVG950 |
|
| 3 | Collar FR Wheel Side | 44311KVB910 |
|
| 4 | Collar FR. Wheel Side | 44312KZR600 |
|
| 5 | Collar FR Distance | 44620KVB910 |
|
| 6 | Wheel Sub Assy FR | 44650K59A10ZA |
|
| 6 | Wheel Sub Assy FR | 44650K59A10ZB |
|
| 6 | Wheel Front NH-303M | 44601K59A11 |
|
| 7 | Tire FR (80/90-14 FT235) | 44711K59A12 |
|
| 8 | Disk FR Brake | 45351KVB931 |
|
| 8 | Disk FR Brake | 45351KVBS02 |
|
| 8 | Disk FR Brake | 45351K81N31 |
|
| 8 | Disk FR Brake | 45351K93N01 |
|
| 10 | Nut U 12MM | 90306KGH902 |
|
| 10 | Nut U 12MM | 90306KGH901 |
|
| 11 | Bearing Ball Radial 6201U L | 91052K03N41 |
|
| 11 | Bearing Ball Radial 6201U L | 91052K24902 |
|
| 11 | Bearing Ball Radial 6201U L | 91052K24903 |
|
| 12 | Dust Seal 21X32X5 | 91251KZR601 |
|
