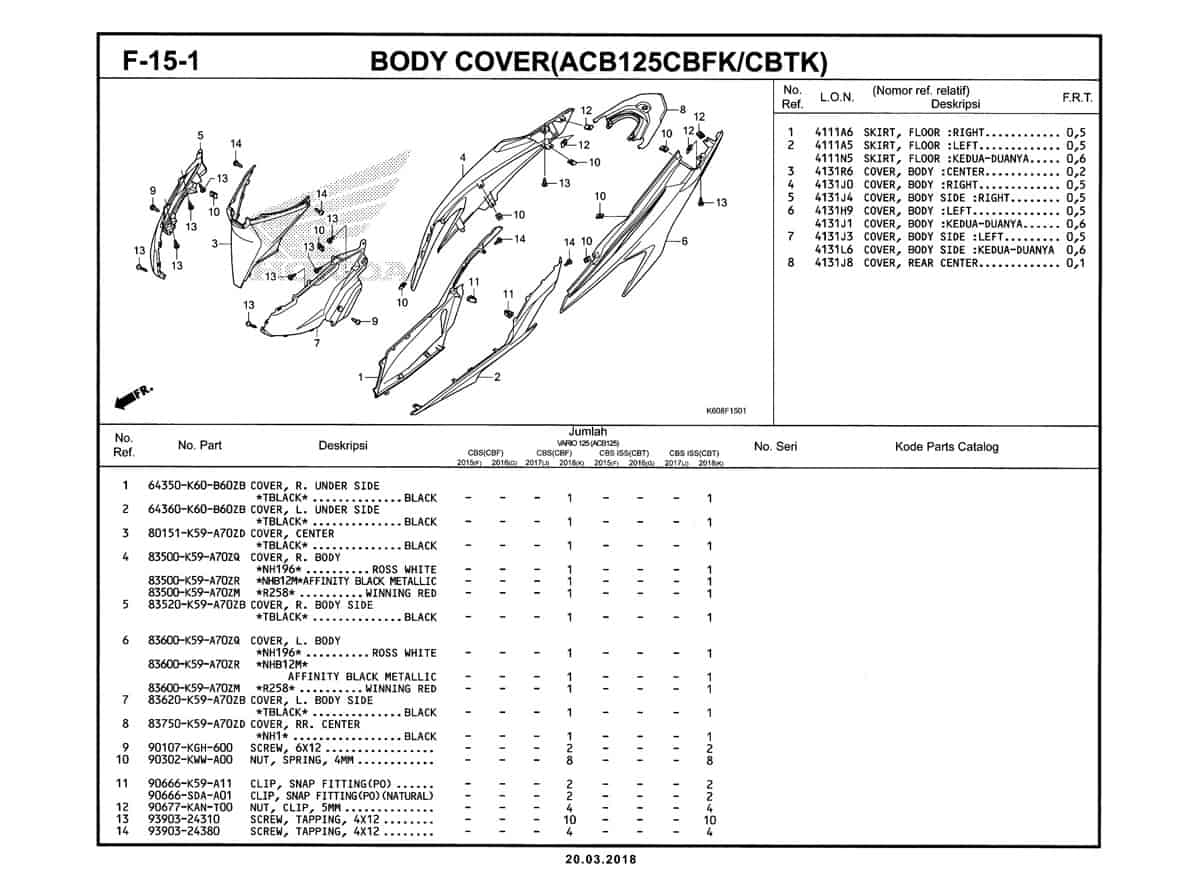

F15-1 – Body Cover (ACB125CBFK/CBTK) – Katalog Honda New Vario 125 K60R

#	Informasi Produk	Visual
1	Cover R Under Side Part Number : `64350K60B60ZB`
2	Cover L Under Side Part Number : `64360K60B60ZB`
3	Cover Center Part Number : `80151K59A70ZD`
4	Cover R Body (RS WH) Part Number : `83500K59A70ZQ`
4	Cover R Body (AF BL ME) Part Number : `83500K59A70ZR`
4	Cover R Body (WN RD) Part Number : `83500K59A70ZM`
5	Cover R Body Side Part Number : `83520K59A70ZB`
6	Cover L Body (RS WH) Part Number : `83600K59A70ZQ`
6	Cover L Body (AF BL ME) Part Number : `83600K59A70ZR`
6	Cover L Body (WN RD) Part Number : `83600K59A70ZM`
7	Cover L Body Side Part Number : `83620K59A70ZB`
8	Cover RR Center (BLK) Part Number : `83750K59A70ZD`
9	Screw 6X12 Part Number : `90107KGH600`
10	Nut Spring 4MM Part Number : `90302KWWA00`
11	Clip Snap Fit (PO) Part Number : `90666K59A11`
11	Clip Snap Fit (PO) Part Number : `90666SDAA01`
12	Nut Clip 5MM. Part Number : `90677KANT00`
13	Screw Tapping 4X12 Part Number : `9390324310`
14	Screw Tapping 4X12 Part Number : `9390324380`
