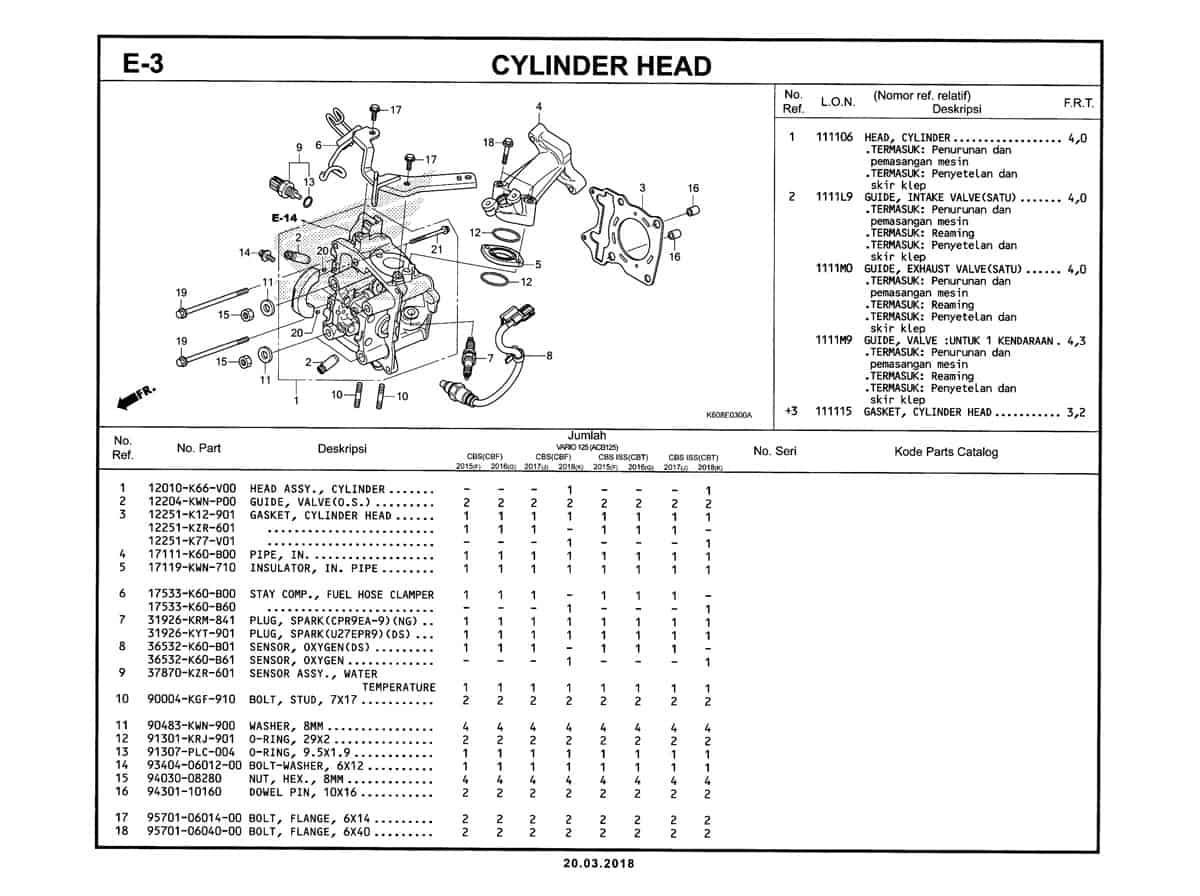

E3 – Cylinder Head – Katalog Honda New Vario 125 K60R

#	Informasi Produk	Visual
1	Head Assy Part Number : `12010K66V00`
2	Guide Valve (OSZ) Part Number : `12204KWNP00`
3	Gasket Cylinder Head Part Number : `12251K12901`
3	Gasket Cylinder Head Part Number : `12251KZR601`
3	Gasket Cylinder Head Part Number : `12251K77V01`
4	Pipe In Part Number : `17111K60B00`
5	Insulator Inlet P Assy Part Number : `17119KWN710`
6	Stay Comp Fuel Hose Clamper Part Number : `17533K60B00`
6	Stay Comp Fuel Hose Clamper Part Number : `17533K60B60`
7	Spark Plug CPR9EA-9 (NG) Part Number : `31926KRM842`
7	Spark Plug U27EPR-9 (DS) Part Number : `31926KYT901`
7	Spark Plug CPR9EA9 (NGK) Part Number : `31926KRM841`
7	Spark Plug U27EPR-N9 (DS) Part Number : `31919K25602`
7	Spark Plug MR9C-9N (NGK) Part Number : `31919K25601`
8	Sensor Oxygen (DS) Part Number : `36532K60B01`
8	Sensor Oxygen Part Number : `36532K60B61`
9	Sensor Assy., Water Temp Part Number : `37870KZR601`
10	Bolt Stud, 7X17 Part Number : `90004KGF910`
11	Washer 8mm Part Number : `90483KWN900`
12	O-Ring 29x2 Part Number : `91301KRJ901`
13	O Ring 9.5x1.5 Part Number : `91307PLC004`
14	Bolt Washer 6x12 Part Number : `934040601200`
15	Nut Hex 8MM Part Number : `9403008280`
16	Dowel Pin 10x16 Part Number : `9430110160`
17	Bolt Flange 6X14 Part Number : `957010601400`
18	Bolt Flange 6x40 Part Number : `957010604000`
19	Bolt Flange 6X95 Part Number : `957010609500`
20	Pin Dowel 3X5 Part Number : `9430303050`
21	Bolt Flange 6x80 Part Number : `960010608000`
