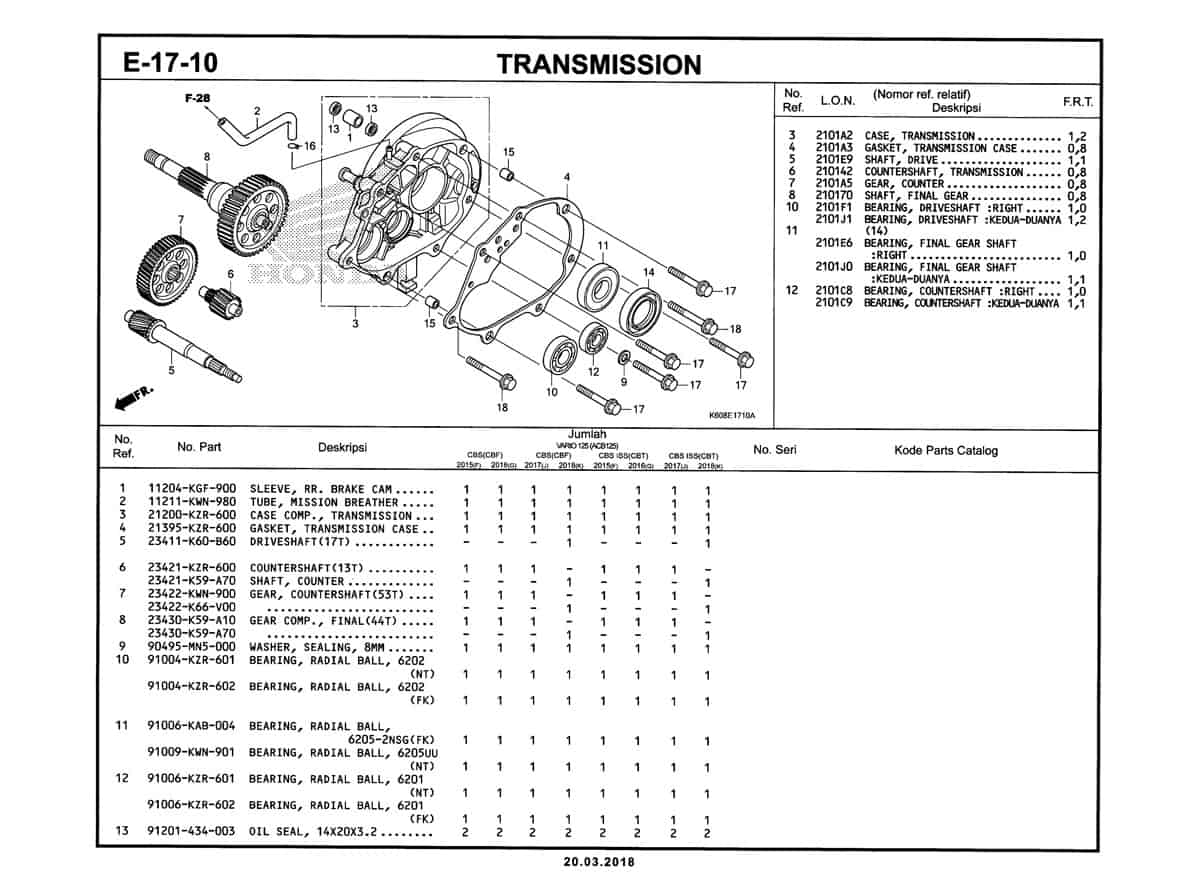

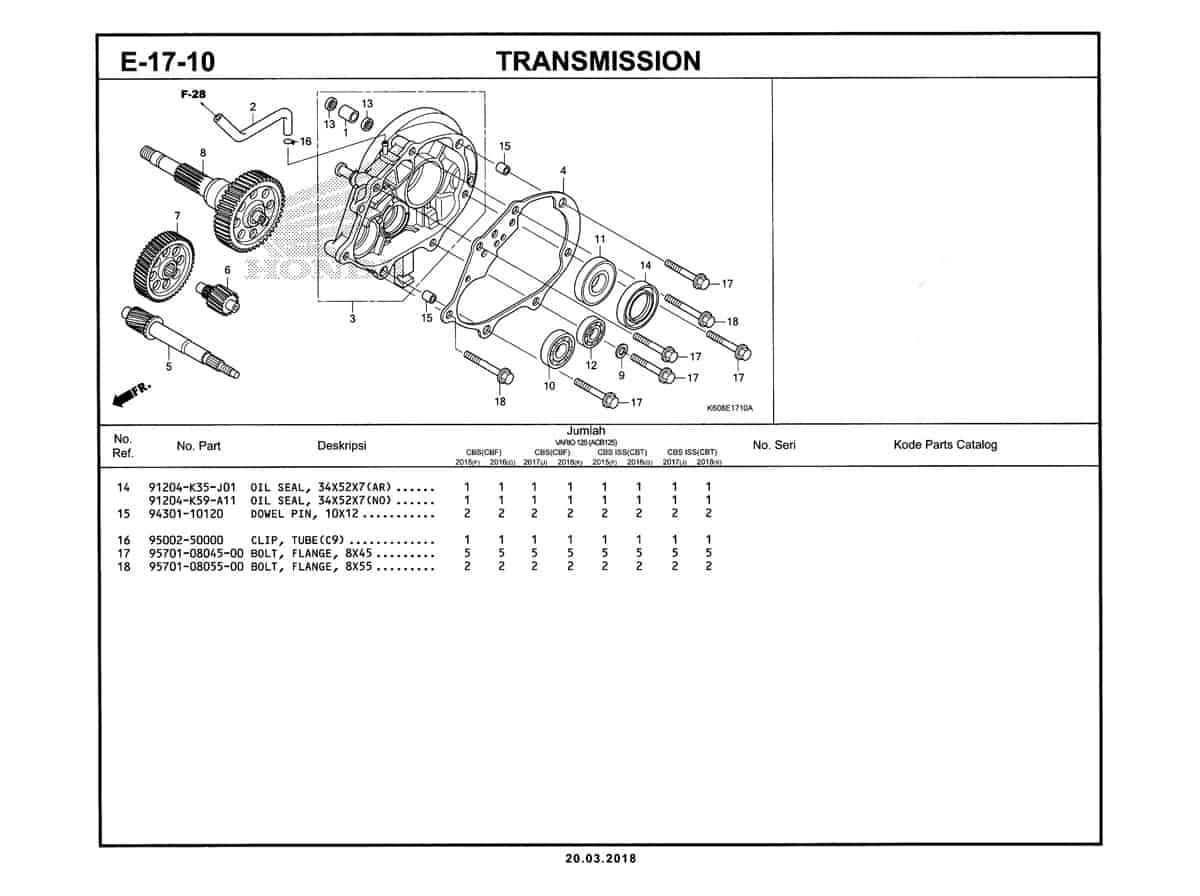

E17-10 – Transmission – Katalog Honda New Vario 125 K60R

#	Informasi Produk	Visual
1	Sleeve RR Brake Cam Part Number : `11204KGF900`
2	Tube Mission Breather Part Number : `11211KWN980`
3	Case Comp Mission Part Number : `21200KZR600`
4	Gasket, Transmission Case Part Number : `21395KZR600`
5	Shaft Drive Part Number : `23411K60B60`
6	Shaft Counter Part Number : `23421K59A70`
7	Gear Counter Part Number : `23422K66V00`
8	Gear Comp Final Part Number : `23430K59A70`
9	Washer Sealing 8MM Part Number : `90495MN5000`
10	Bearing Ball Radial 6202 Part Number : `91004KZR601`
10	Bearing Ball Radial 6202 Part Number : `91004KZR602`
11	Bearing Radial Ball LBL Part Number : `91006KAB004`
11	Bearing Ball Radial 6205 UU Part Number : `91009KWN901`
11	Bearing Ball Radial 6205 UU Part Number : `91009K2SN01`
12	Bearing Radial Ball 6201 Part Number : `91006KZR601`
12	Bearing Radial Ball 6201 Part Number : `91006KZR602`
13	Oil Seal 14X20X3.2 Part Number : `91201434003`
14	Oil Seal 34X52X7 Part Number : `91204K35J01`
14	Oil Seal 34X52X7 Part Number : `91204K59A11`
15	Pin Dowel 10X12 Part Number : `9430110120`
16	Clip Tube 5.0 MM Part Number : `9500250000`
17	Bolt Flange 8X45 Part Number : `957010804500`
18	Bolt Flange ,8X55 Part Number : `957010805500`
