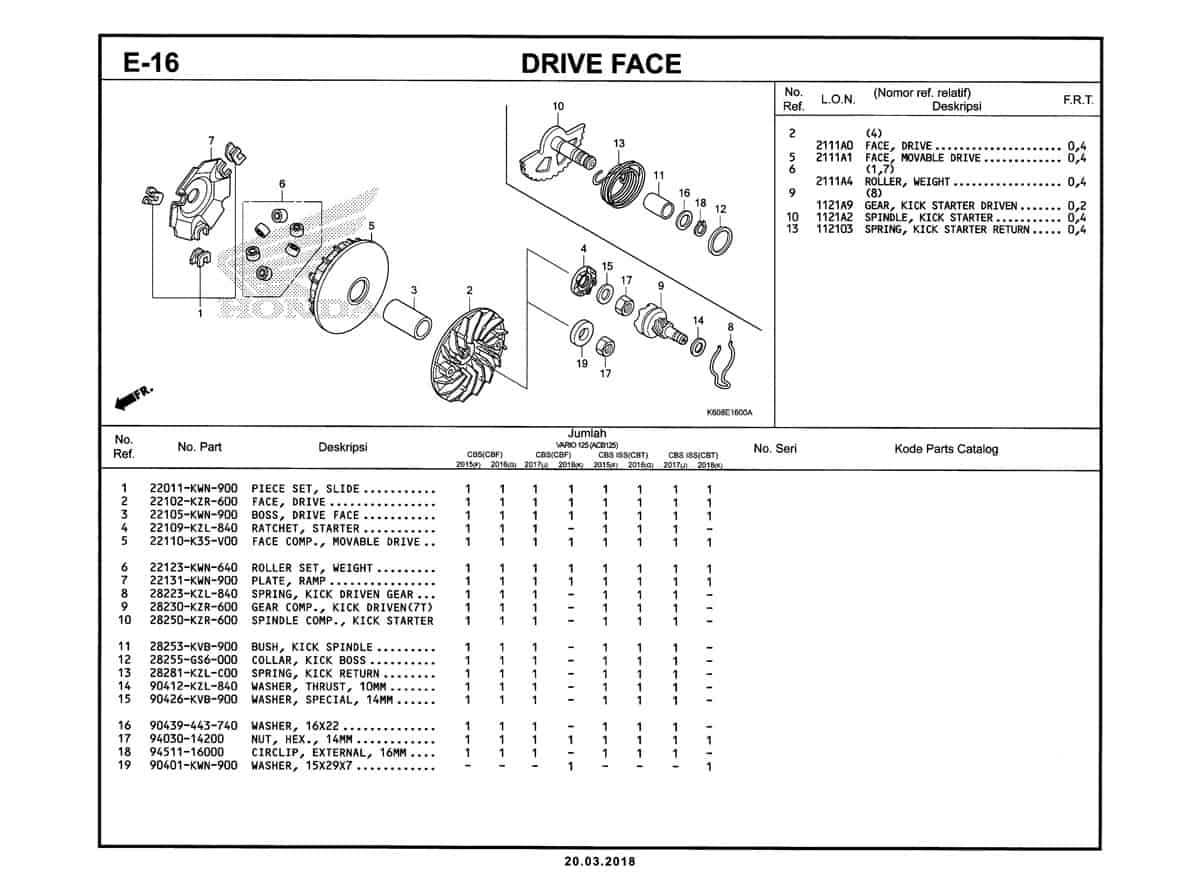

E16 – Drive Face – Katalog Honda New Vario 125 K60R

#	Informasi Produk	Visual
1	Piece Set,Slide Part Number : `22011KWN900`
1	Piece Slide Part Number : `22132KWN900`
2	Face Drive Part Number : `22102KZR600`
3	Boss Drive Face Part Number : `22105KWN900`
4	Ratchet Starter Part Number : `22109KZL840`
5	Face Comp Movable Drive Part Number : `22110K35V00`
6	Roller Set Weight Part Number : `22123KWN640`
6	Roller Set Weight Part Number : `2212AKWN640`
6	Roller Set Weight Part Number : `2212AK36T00`
7	Plate Ramp Part Number : `22131KWN900`
8	Spring Kick Driven Gear Part Number : `28223KZL840`
9	Gear Comp Kick Driven (7T) Part Number : `28230KZR600`
10	Spindle Comp., Kick Starter Part Number : `28250KZR600`
11	Bush Kick Spindle Part Number : `28253KVB900`
12	Collar Kick Boss Part Number : `28255GS6000`
13	Spring Kick Return Part Number : `28281KZLC00`
14	Washer Thrust 10MM Part Number : `90412KZL840`
15	Washer Special 14MM Part Number : `90426KVB900`
16	Washer 16X22 Part Number : `90439443740`
17	Nut Hex 14MM Part Number : `9403014200`
18	Circlip EXT 16MM Part Number : `9451116000`
19	Washer 15X29X7 Part Number : `90401KWN900`
