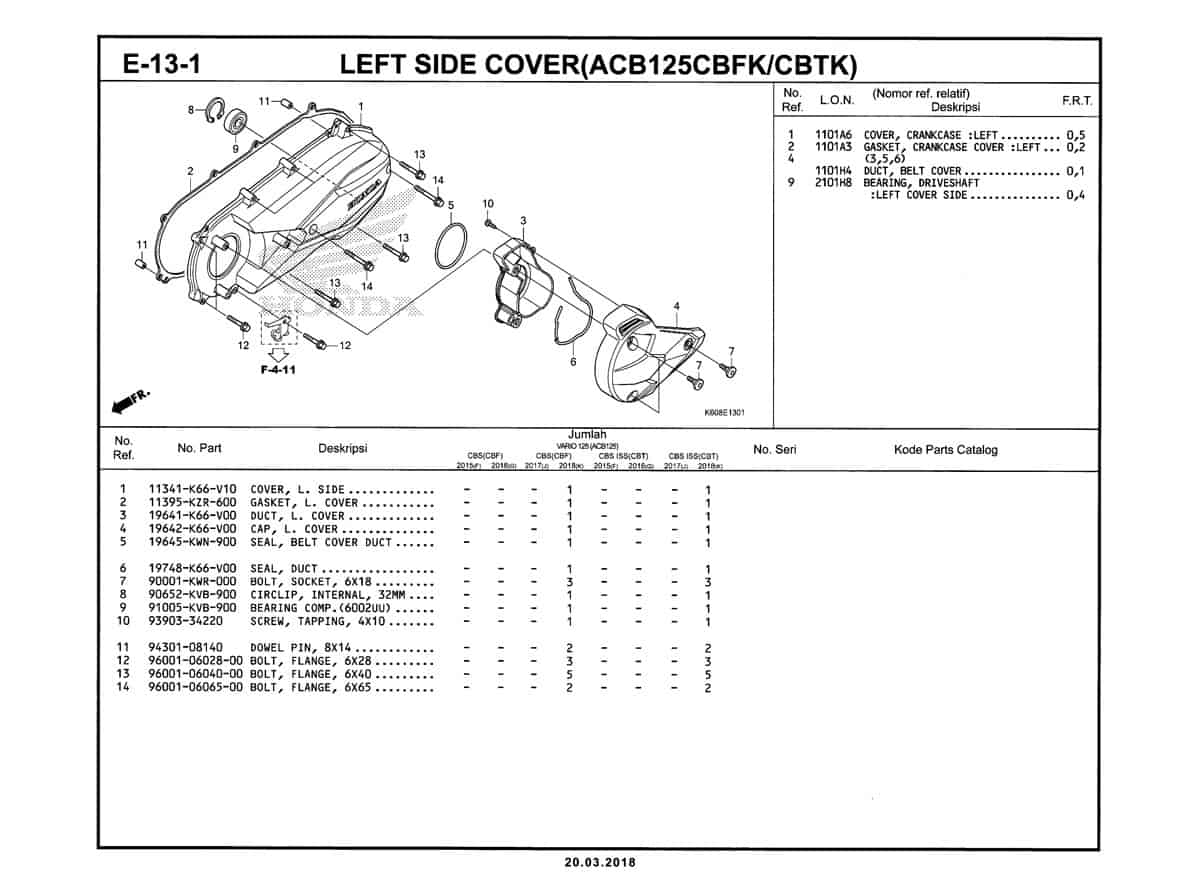

E13-1 – Left Side Cover (ACB125CBFK/CBTK) – Katalog Honda New Vario 125 K60R

#	Informasi Produk	Visual
1	Cover L Side Part Number : `11341K66V10`
2	Gasket L Cover Part Number : `11395KZR600`
3	Duct L Cover Part Number : `19641K66V00`
4	Cap L Cover Part Number : `19642K66V00`
5	Seal Belt Cover Duct Part Number : `19645KWN900`
6	Seal Duct Part Number : `19748K66V00`
7	Bolt Socket 6X18 Part Number : `90001KWR000`
8	Circlip IN.32 Part Number : `90652KVB900`
9	Bearing Comp Drive Shaft Part Number : `91005KVBN50`
10	Screw Tapping 4X10 Part Number : `9390334220`
11	Pin Dowel 8X14 Part Number : `9430108140`
12	Bolt Flange 6X28 Part Number : `960010602800`
13	Bolt Flange 6X40 Part Number : `960010604000`
14	Bolt Flange 6X65 Part Number : `960010606500`
