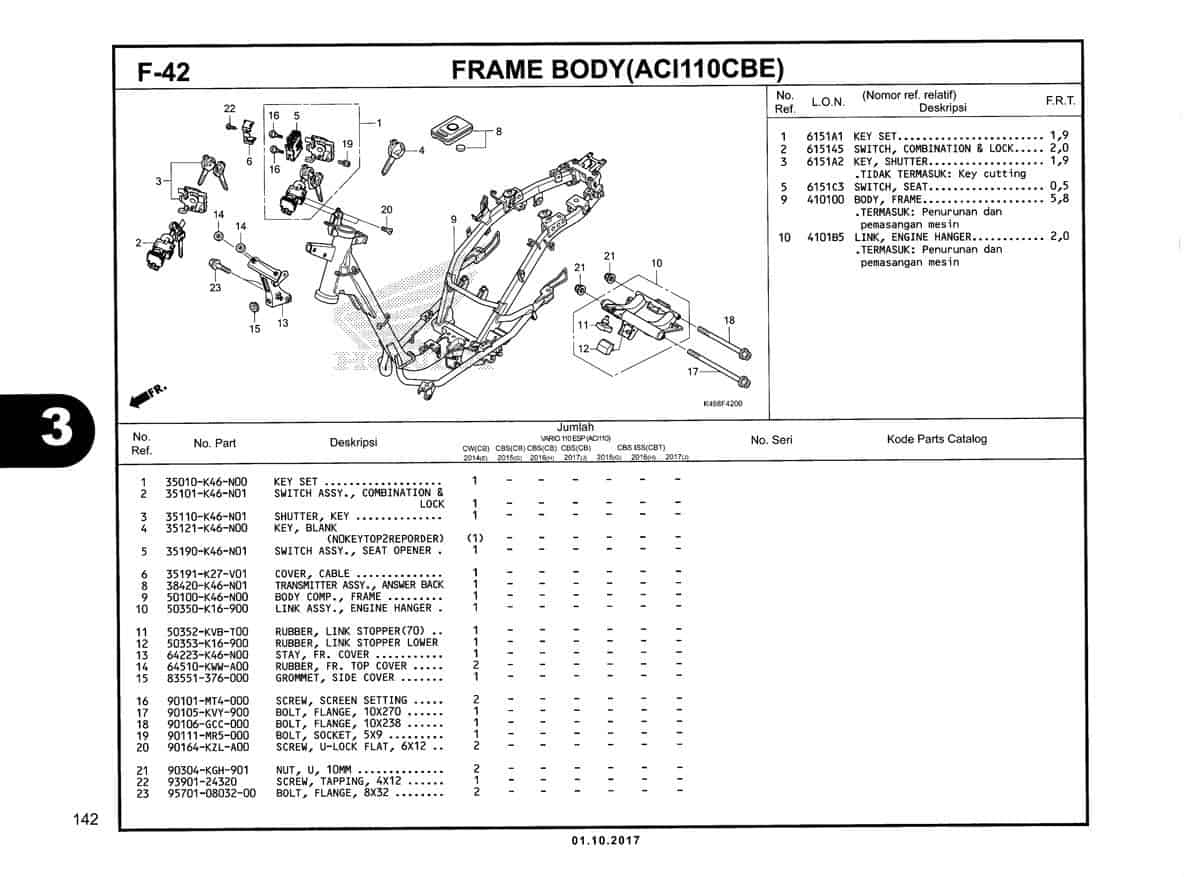

F42 – Frame Body (ACI110CBE) – Katalog Honda New Vario 110

#	Informasi Produk	Visual
1	Key Set Assy Part Number : `3510AK46N30`
2	Switch Assy Comb Part Number : `35101K46N01`
3	Shutter Key G Part Number : `35110K46N01`
4	Key Blank Part Number : `35121K46N00`
5	Switch Assy Seat Opener Part Number : `35190K46N01`
5	Switch Assy Seat Opener Part Number : `35190K46N02`
5	Switch Assy Seat Opener Part Number : `35190K1AN01`
6	Cover Cable Part Number : `35191K27V01`
8	Transmitter Assy Part Number : `38420K46N01`
9	Body Comp Frame Part Number : `50100K46N00`
10	Link Assy Engine Hanger Part Number : `50350K16900`
11	Rubber Link Stopper Part Number : `50352KVBT00`
12	Rubber Link Stopper Lower Part Number : `50353K16900`
13	Stay FR Cover Part Number : `64223K46N20`
14	Rubber FR Top Cover Part Number : `64510KWWA00`
15	Grommet Side Cover Part Number : `83551376000`
16	Screw Screen Setting Part Number : `90101MT4000`
17	Bolt Flange 10X270 Part Number : `90105KVY900`
18	Bolt Flange 10X238 Part Number : `90106GCC000`
19	Bolt Socket 5X9 Part Number : `90111MR5000`
20	Screw U-Lock Flat 6X12 Part Number : `90164KZLA00`
21	Nut U10MM Part Number : `90304KGH901`
22	Screw Tapping 4X12 Part Number : `9390124320`
23	Bolt Flange 8X32 Part Number : `957010803200`
