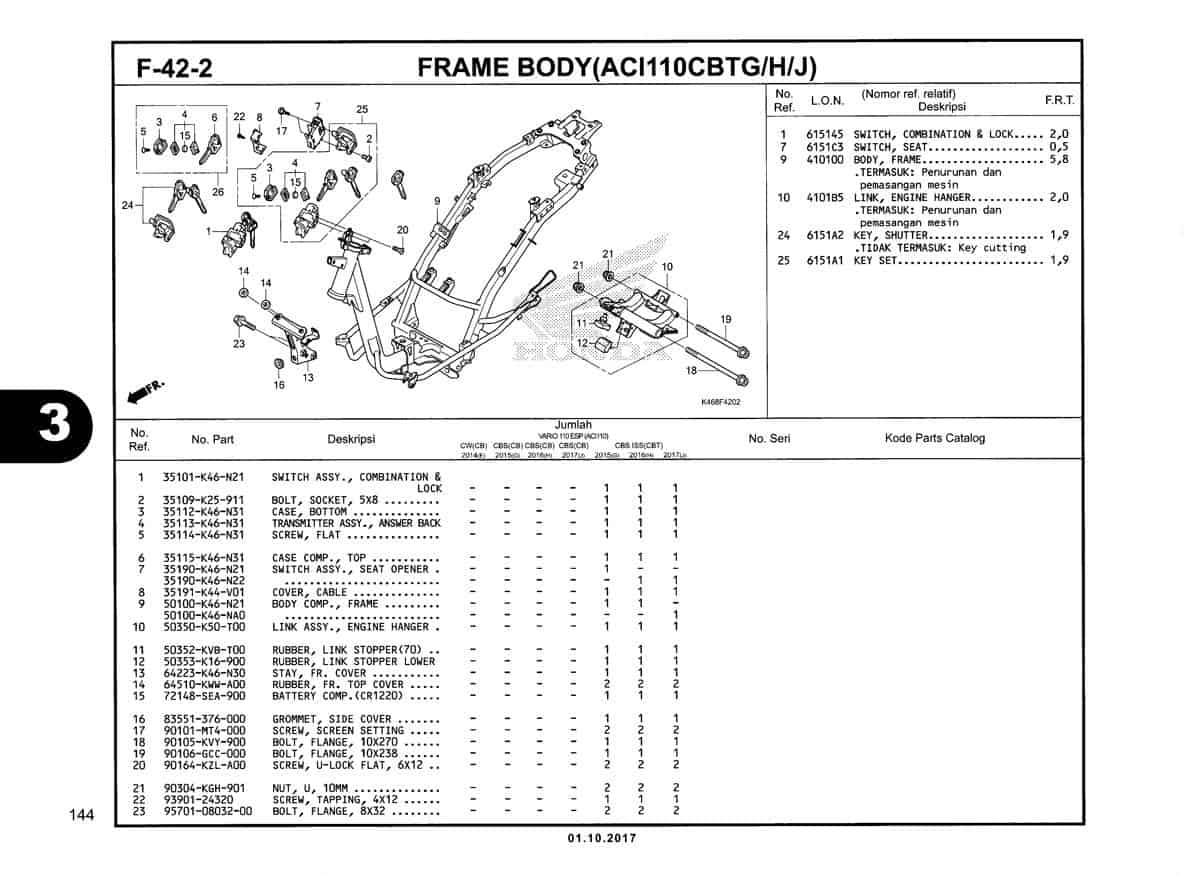

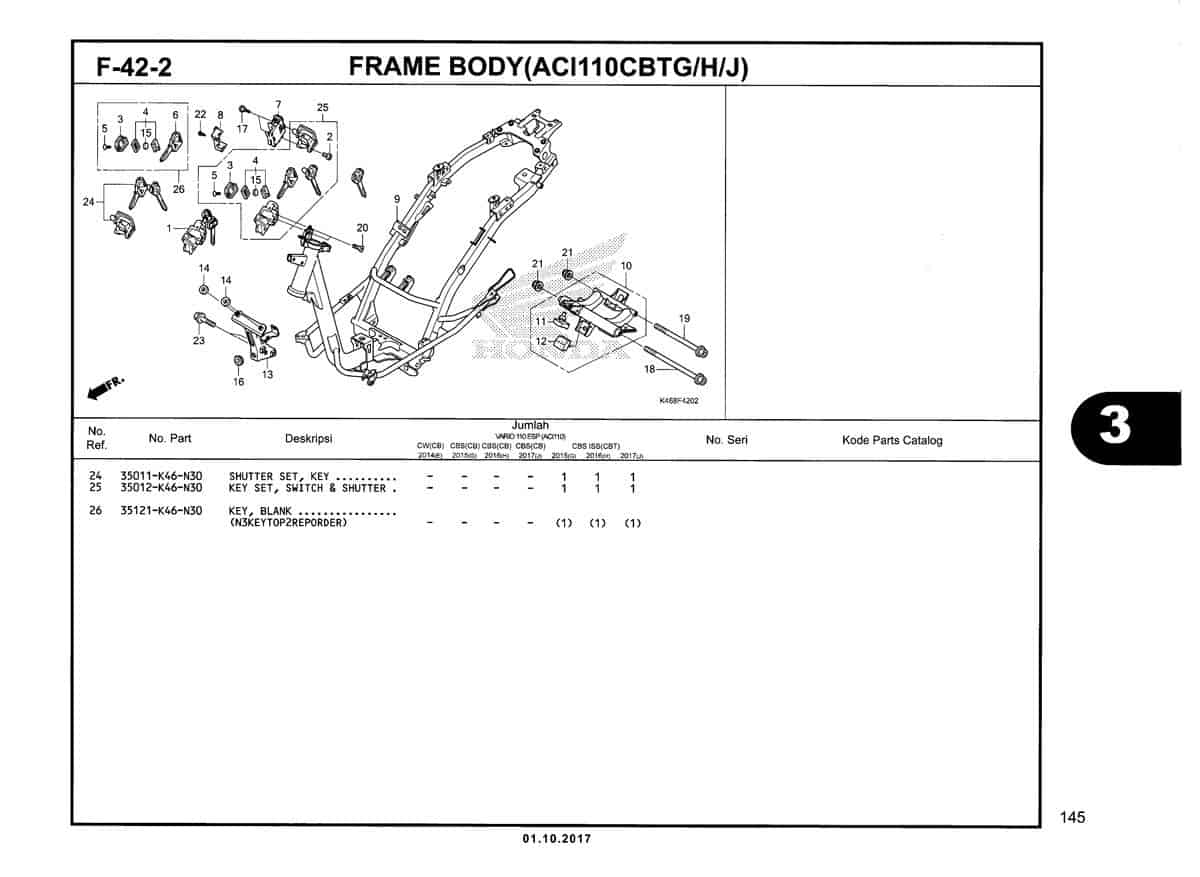

F42-2 – Frame Body (ACI110CBTG/H/J) – Katalog Honda New Vario 110

#	Informasi Produk	Visual
1	Switch Assy Comb & Lock Part Number : `35101K46N21`
2	Bolt Socket 5X8 Part Number : `35109K25911`
3	Case Bottom Part Number : `35112K46N31`
4	Transmitter Answer Back Part Number : `38420K46N01`
5	Screw Flat Part Number : `35114K46N31`
6	Case Top Comp Part Number : `35115K46N31`
7	Switch Assy Seat opener Part Number : `35190K46N21`
7	Switch Assy Seat opener Part Number : `35190K46N22`
8	Cover Cable Part Number : `35191K44V01`
9	Body Comp Frame Part Number : `50100K46N20`
9	Body Comp Frame Part Number : `50100K46NA0`
10	Link Assy Engine Hanger Part Number : `50350K50T00`
11	Rubber Link Stopper Part Number : `50352KVBT00`
12	Rubber Link Stopper Lower Part Number : `50353K16900`
13	Stay Front Cover Part Number : `64223K46N30`
14	Rubber FR Top Cover Part Number : `64510KWWA00`
15	Battery Comp (CR 1220) Part Number : `72148SEA900`
16	Grommet Side Cover Part Number : `83551376000`
17	Screw Screen Setting Part Number : `90101MT4000`
18	Bolt Flange 10X270 Part Number : `90105KVY900`
19	Bolt Flange 10X238 Part Number : `90106GCC000`
20	Screw U-Lock Flat 6X12 Part Number : `90164KZLA00`
21	Nut U 10MM Part Number : `90304KGH901`
22	Screw Tapping 4X12 Part Number : `9390124320`
23	Bolt Flange 8X32 Part Number : `957010803200`
24	Set Key Shutter Part Number : `35011K46N30`
25	Key Set Switch Assy &Shutter Part Number : `35012K46N30`
