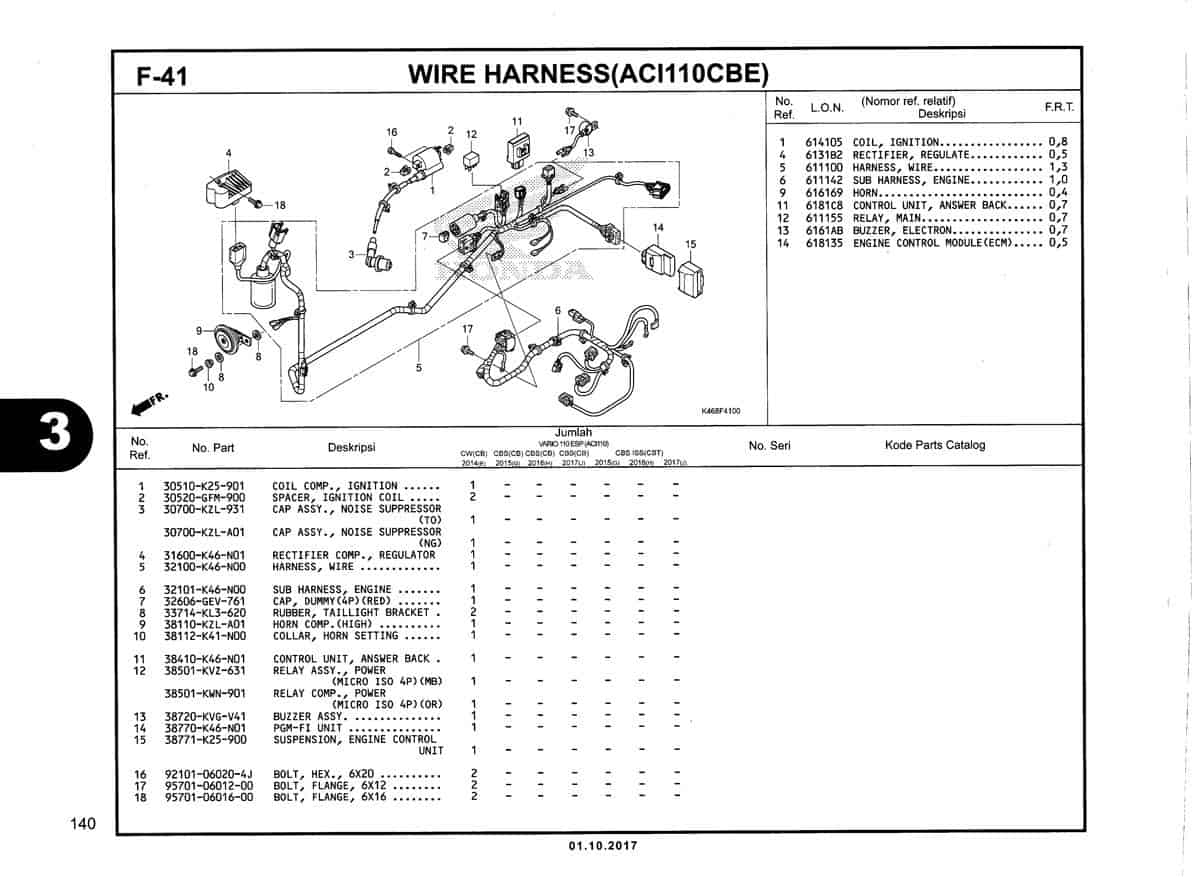

F41 – Wire Harness (ACI110CBE) – Katalog Honda New Vario 110

#	Informasi Produk	Visual
1	Coil Comp Ignition Part Number : `30510K25901`
2	Spacer Ignition Coil Part Number : `30520GFM900`
3	Cap Assy Noise Suppressor Part Number : `30700KZL931`
3	Cap Assy Noise Suppressor Part Number : `30700KZLA01`
4	Rectifier Comp Regulator Part Number : `31600K46N01`
5	Wire Harness Part Number : `32100K46N00`
6	Sub Harness Engine Part Number : `32101K46N00`
7	Dummy WPC 4P 090 M (RED) Part Number : `32606GEV761`
8	Rubber Taillight Bracket Part Number : `33714KL3620`
9	Horn Comp (High) Part Number : `38110KZLA01`
10	Collar Horn Setting Part Number : `38112K41N00`
11	Control Unit Answer Back Part Number : `38410K46N01`
12	Relay Comp Micro Iso Low Hight Part Number : `38501KVZ631`
12	Relay Comp Power Part Number : `38501KWN901`
13	Buzzer Assy Part Number : `38720KVGV41`
14	Unit Comp PGM-FI/IGN Part Number : `38770K46N01`
15	Suspension Engine Control Part Number : `38771K25900`
16	Bolt Hex 6X20 Part Number : `92101060204J`
17	Bolt Flange 6X12 Part Number : `957010601200`
18	Bolt Flange 6X16 Part Number : `957010601600`
