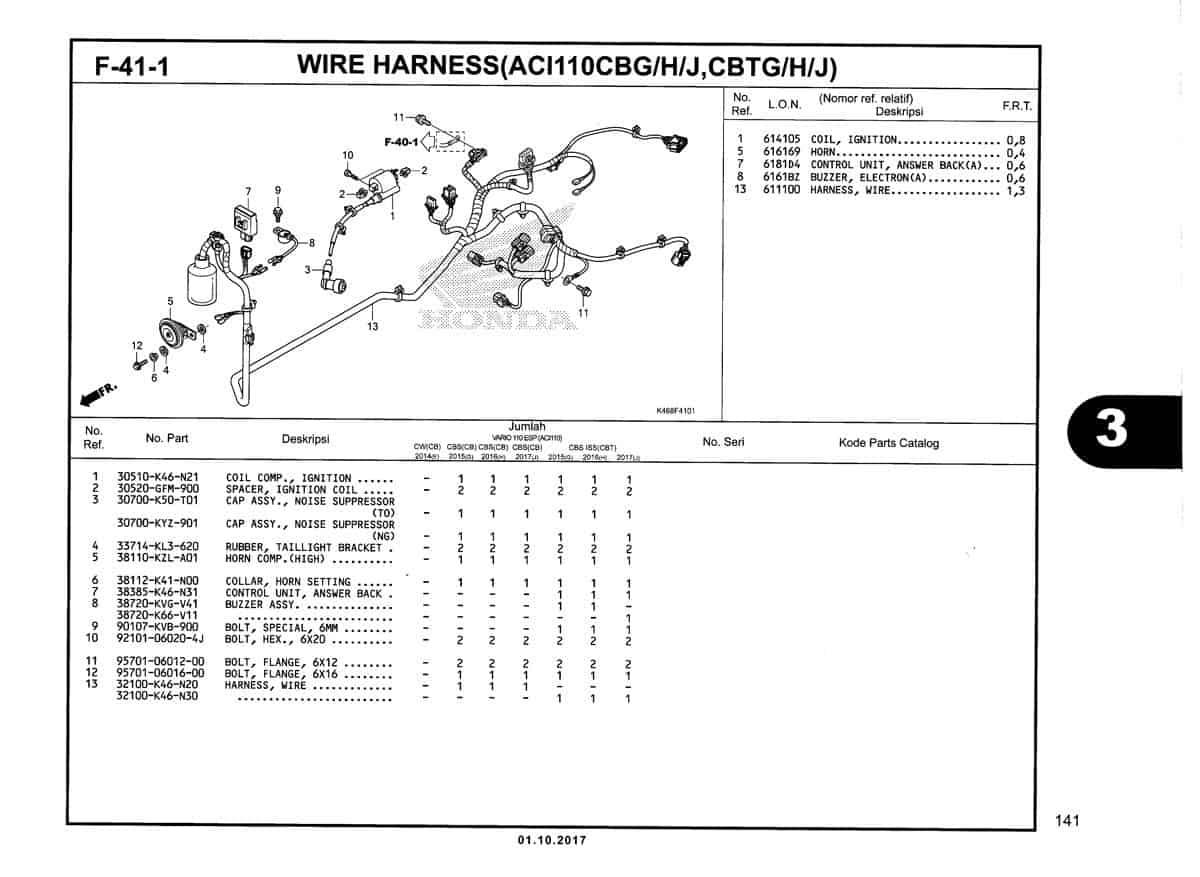

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Coil Comp Ignition | 30510K46N21 |
|
| 2 | Spacer Ignition Coil | 30520GFM900 |
|
| 3 | Cap Assy Noise Suppressor | 30700K50T01 |
|
| 3 | Cap Assy Noise Suppressor | 30700KYZ901 |
|
| 4 | Rubber Taillight Bracket | 33714KL3620 |
|
| 5 | Horn Comp (High) | 38110KZLA01 |
|
| 6 | Collar Horn Setting | 38112K41N00 |
|
| 7 | Control Unit Answer Back | 38385K46N31 | - |
| 7 | Control Unit Answer Back | 38410K46N01 |
|
| 8 | Buzzer Assy | 38720KVGV41 |
|
| 8 | Buzzer Assy | 38720K66V11 |
|
| 9 | Bolt Special 6MM | 90107KVB900 |
|
| 10 | Bolt Hex 6X20 | 92101060204J |
|
| 11 | Bolt Flange 6X12 | 957010601200 |
|
| 12 | Bolt Flange 6X16 | 957010601600 |
|
| 13 | Wire Harness | 32100K46N20 |
|
| 13 | Wire Harness | 32100K46N30 |
|
