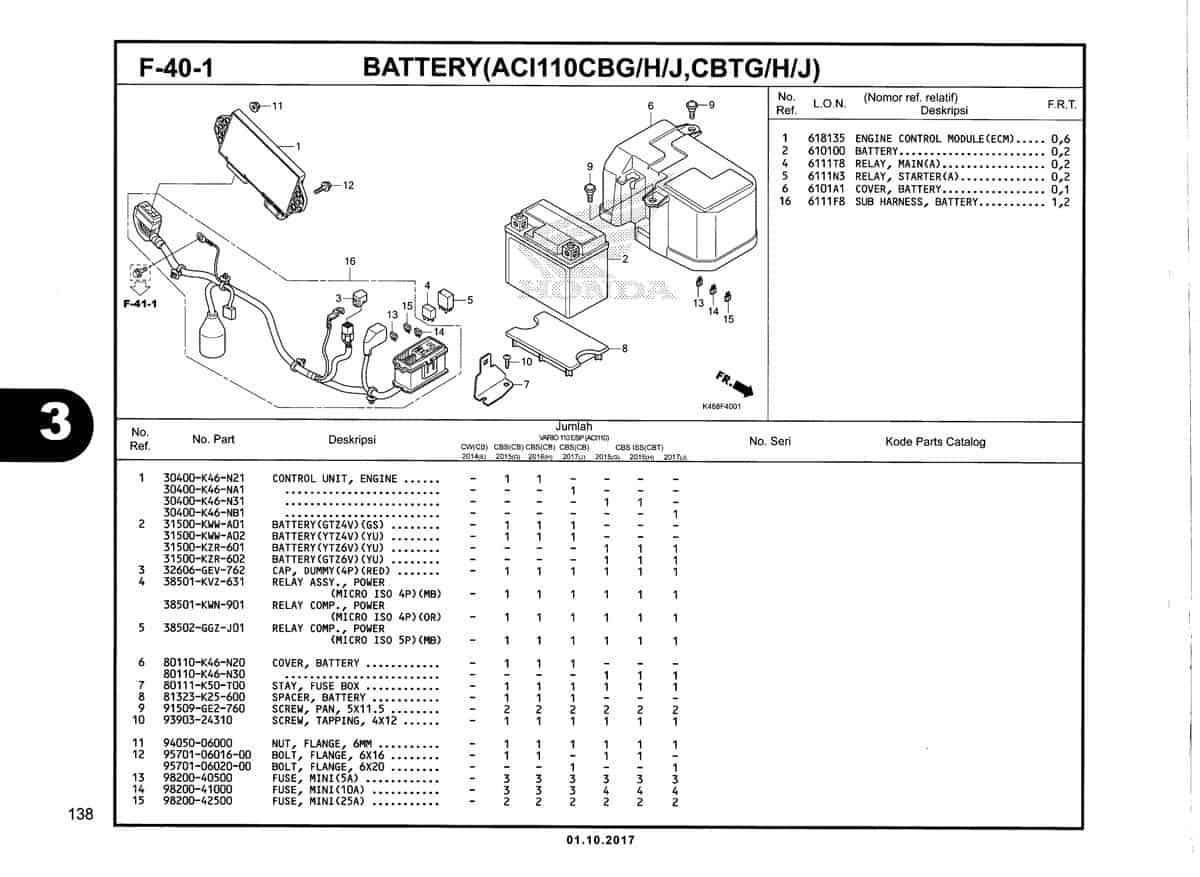

F40-1 – Battery (ACI110CBG/H/J,CBTG/H/J) – Katalog Honda New Vario 110

#	Informasi Produk	Visual
1	Eng Control Unit Part Number : `30400K46N21`
1	Eng Control Unit Part Number : `30400K46NA1`
1	Eng Control Unit Part Number : `30400K46N31`
1	Eng Control Unit Part Number : `30400K46NB1`
2	Battery GTZ4V Part Number : `31500KWWA01`
2	Battery YTZ4-V Part Number : `31500KWWA02`
2	Battery YTZ6-V Part Number : `31500KZR601`
2	Battery (GTZ6V) Part Number : `31500KZR602`
3	Dummy WPC 4P 090 M (RED) Part Number : `32606GEV762`
4	Relay Comp Micro Iso Low Hight Part Number : `38501KVZ631`
4	Relay Comp Power Part Number : `38501KWN901`
5	Relay Comp Power Part Number : `38502GGZJ01`
6	Cover Battery Part Number : `80110K46N20`
6	Cover Battery Part Number : `80110K46N30`
7	Stay Fuse Box Part Number : `80111K50T00`
8	Spacer Battery Part Number : `81323K25600`
9	Screw Pan 5X11.5 Part Number : `91509GE2760`
10	Screw Tapping 4X12 Part Number : `9390324310`
11	Nut Flange 6MM Part Number : `9405006000`
12	Bolt Flange 6X16 Part Number : `957010601600`
12	Bolt Flange 6X20 Part Number : `957010602000`
13	Fuse Mini 5A Part Number : `9820040500`
14	Fuse Mini 10A Part Number : `9820041000`
15	Fuse Mini 25A Part Number : `9820042500`
16	Sub Harness Battery Part Number : `32102K46N30`
