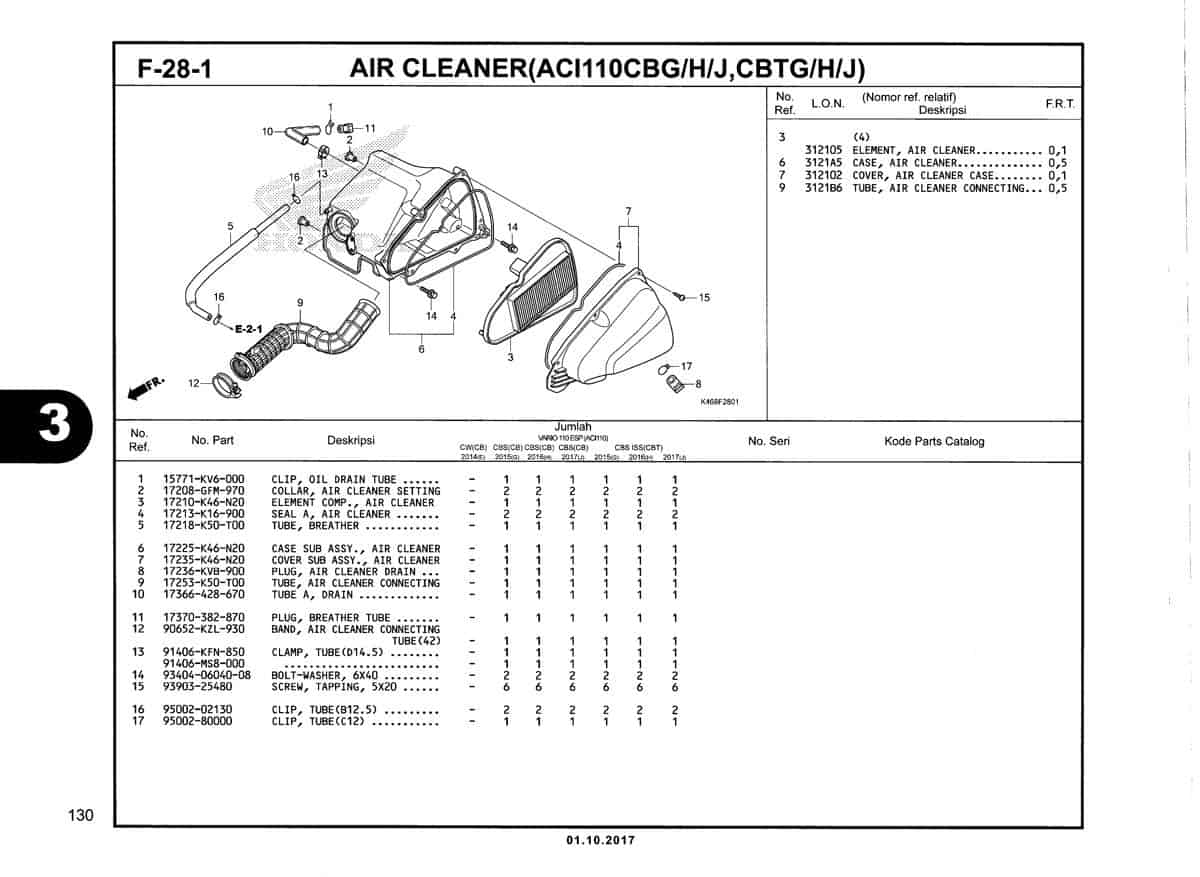

F28-1 – Air Cleaner (ACI110CBG/H/J,CBTG/H/J) – Katalog Honda New Vario 110

#	Informasi Produk	Visual
1	Clip Oil Drain Tube Part Number : `15771KV6000`
2	Collar Air Cleaner Setting Part Number : `17208GFM970`
3	Element Comp Air Cleaner Part Number : `17210K46N20`
3	Element Comp Air Cleaner Part Number : `17210K16900`
4	Seal A Air Cleaner Part Number : `17213K16900`
5	Tube Breather Part Number : `17218K50T00`
6	Case Sub Assy Air Cleaner Part Number : `17225K46N20`
7	Cover Sub Assy Air Cleaner Part Number : `17235K46N20`
8	Plug A/C Drain Part Number : `17236KVB900`
9	Tube Air Connecting Part Number : `17253K50T00`
10	Tube A Drain Part Number : `17366428670`
11	Plug Breather Tube Part Number : `17370382870`
12	Band A/C Connecting Tube (42) Part Number : `90652KZL930`
13	Clamp Tube D14.5 Part Number : `91406KFN850`
13	Clamp Tube D14.5 Part Number : `91406MS8000`
14	Bolt Washer 6X40 Part Number : `934040604008`
15	Screw Tapping 5X2 Part Number : `9390325480`
16	Clip Tube B12.5 Part Number : `9500202130`
17	Clip Tube C12 Part Number : `9500280000`
