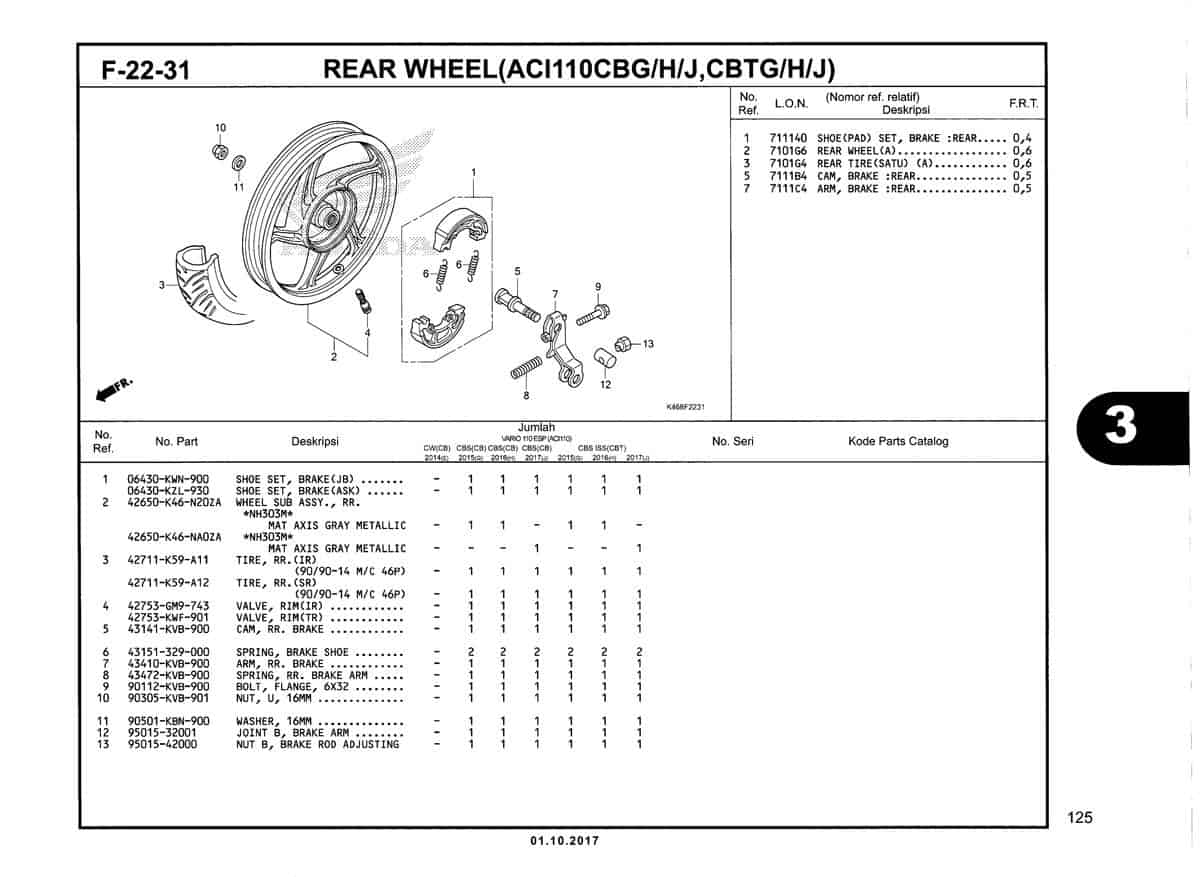

F22-31 – Rear Wheel (ACI110CBG/H/J,CBTG/H/J) – Katalog Honda New Vario 110

#	Informasi Produk	Visual
1	Shoe Set Brake Part Number : `06430KWN900`
1	Shoe Set Brake Part Number : `06430KZL930`
1	Shoe Set Brake Part Number : `43130KZL930`
1	Shoe Set Brake Part Number : `06430K44V80`
2	Wheel Sub Assy RR Part Number : `42650K46NA0ZA`
3	Tire RR (90/90-14 NR83) Part Number : `42711K59A11`
3	Tire RR (90/90-14 FT235) Part Number : `42711K59A12`
4	Valve Rim (INOUE) Part Number : `42753GM9743`
4	Valve Rim (TRITON) Part Number : `42753KWF901`
5	Cam RR Brake Part Number : `43141KVB900`
6	Spring Brake Shoe RR Part Number : `43151329000`
7	Arm RR Brake Part Number : `43410KVB900`
8	Spring RR Brake Arm Part Number : `43472KVB900`
9	Bolt Flange 6X32 Part Number : `90112KVB900`
10	Nut U 16MM Part Number : `90305KVB901`
11	Washer 16MM Part Number : `90501KBN900`
12	Joint Brake Arm Part Number : `9501532001`
13	Nut Adjust Part Number : `9501542000`
