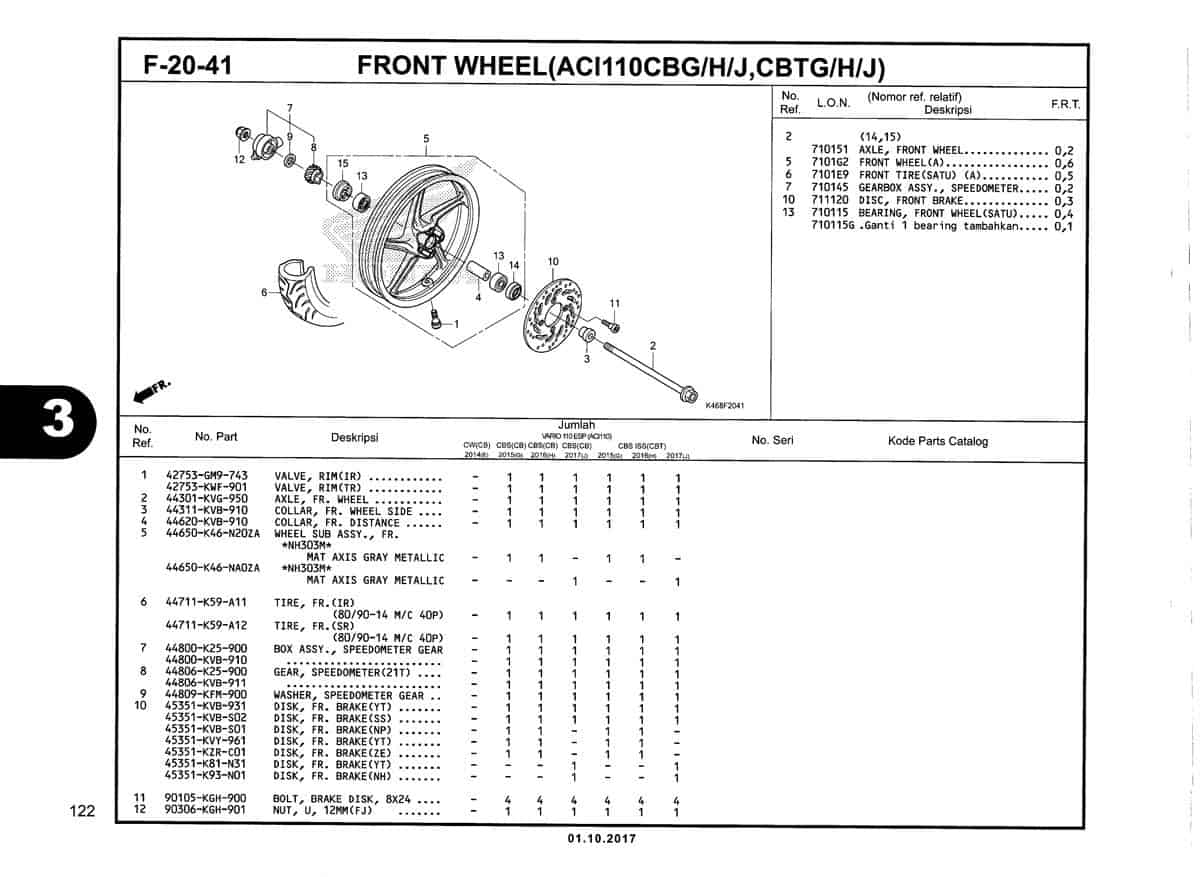

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Valve Rim (INOUE) | 42753GM9743 |
|
| 1 | Valve Rim (TRITON) | 42753KWF901 |
|
| 2 | Axle FR Wheel | 44301KVG950 |
|
| 3 | Collar FR Wheel Side | 44311KVB910 |
|
| 4 | Collar FR Distance | 44620KVB910 |
|
| 5 | Wheel Sub Assy FR | 44650K46N01ZA |
|
| 5 | Wheel Sub Assy FR | 44650K46NA0ZA |
|
| 6 | Tire FR (80/90-14 NF66) | 44711K59A11 |
|
| 6 | Tire FR (80/90-14 FT235) | 44711K59A12 |
|
| 6 | Tire FR 80-90-14 NR73T | 44711K46N00 |
|
| 7 | Box Assy Speedometer Gear | 44800K25900 |
|
| 7 | Box Speedometer Gear | 44800KVB910 |
|
| 8 | Gear Speedometer (21T) | 44806K25900 |
|
| 8 | Gear Speedometer (21T) | 44806KVB910 | - |
| 9 | Washer Speedometer Gear | 44809KFM900 |
|
| 10 | Disk FR Brake | 45351KVB931 |
|
| 10 | Disk FR Brake | 45351KVBS02 |
|
| 10 | Disk FR Brake | 45351KVBS01 |
|
| 10 | Disk FR Brake | 45351KVY961 |
|
| 10 | Disk FR Brake | 45351K81N31 |
|
| 10 | Disk FR Brake | 45351K93N01 |
|
| 11 | Bolt Brake Disk 8X24 | 90105KGH900 |
|
| 12 | Nut U 12MM | 90306KGH901 |
|

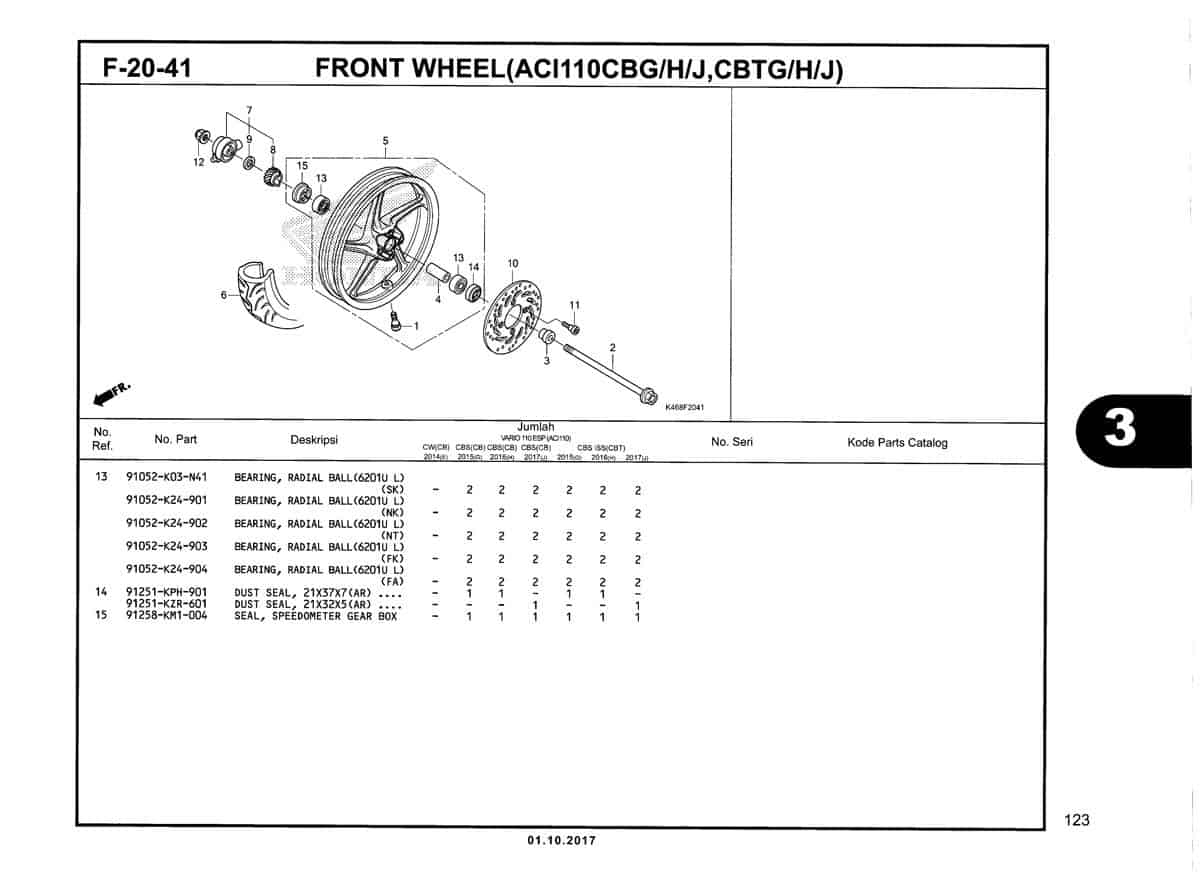

| 13 | Bearing Radial Ball 6201U L | 91052K03N41 |
|
| 13 | Bearing Radial Ball 6201U L | 91052K24902 |
|
| 13 | Bearing Radial Ball 6201U L | 91052K24903 |
|
| 13 | Bearing Radial Ball 6201U L | 91052K24904 |
|
| 14 | Dust Seal 21X37X7 | 91251KPH901 |
|
| 14 | Dust Seal 21X32X5 | 91251KZR601 |
|
| 15 | Seal Speedometer Gear Box | 91258KM1004 |
|
