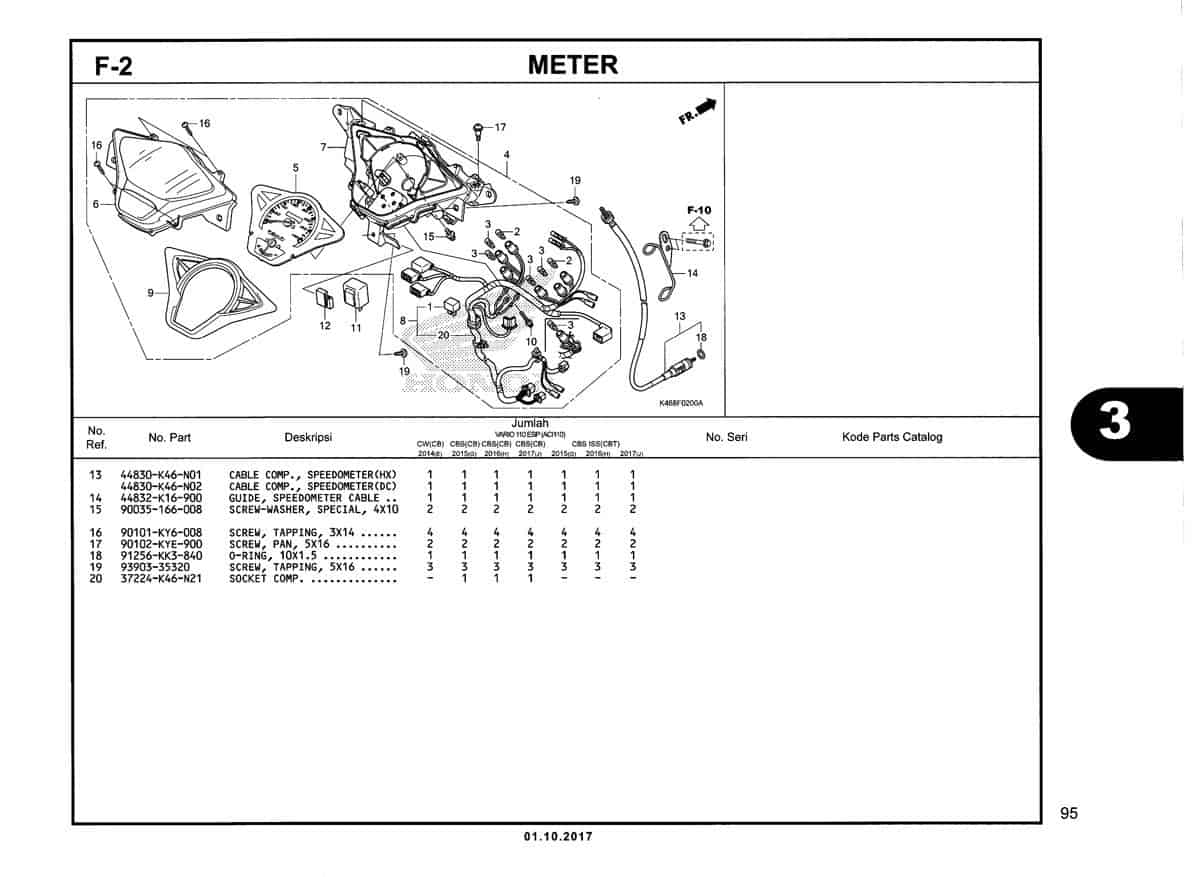

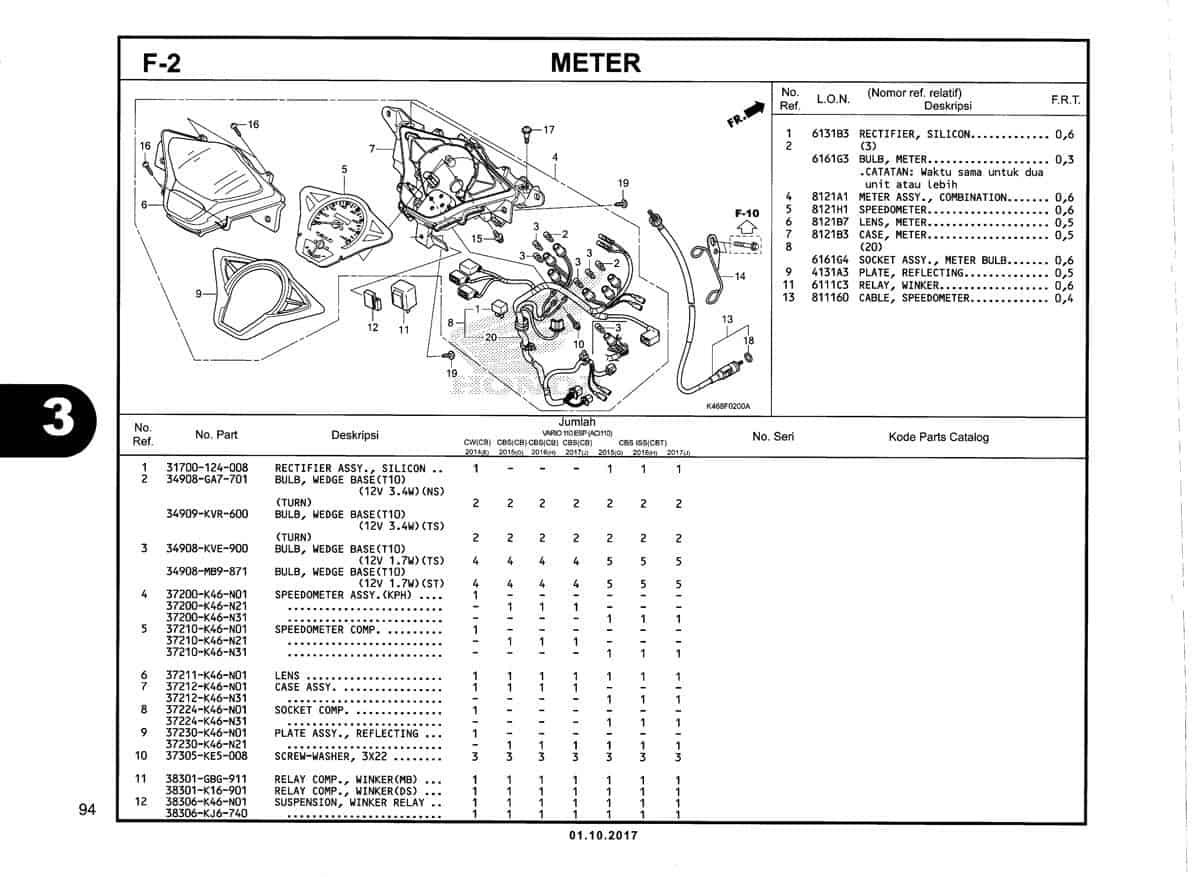

F2 – Meter – Katalog Honda New Vario 110

#	Informasi Produk	Visual
1	Rectifier Silicon Part Number : `31700124008`
2	Bulb W Base Part Number : `34908GA7701`
2	Bulb W Base (T10 12V 3.4W) Part Number : `34909KVR600`
3	Bulb W Base (T10 12V1.7W) Part Number : `34908KVE900`
3	Bulb W Base Part Number : `34908MB9871`
4	Speedometer Assy (KPH) Part Number : `37200K46N01`
4	Speedometer Assy Part Number : `37200K46N21`
4	Speedometer Assy Part Number : `37200K46N31`
5	Speedometer Comp Part Number : `37210K46N01`
5	Speedometer Comp Part Number : `37210K46N21`
5	Speedometer Comp Part Number : `37210K46N31`
6	Lens Part Number : `37211K46N01`
7	Case Assy Part Number : `37212K46N01`
7	Case Assy Part Number : `37212K46N31`
8	Socket Comp Part Number : `37224K46N01`
8	Socket Comp Part Number : `37224K46N31`
9	Plate Assy Reflecting Part Number : `37230K46N01`
9	Plate Assy Reflecting Part Number : `37230K46N21`
10	Screw Washer (3X22) Part Number : `37305KE5008`
11	Relay Comp Winker Part Number : `38301GBG911`
11	Relay Comp Winker Part Number : `38301K16901`
12	Suspension Winker Relay Part Number : `38306K46N01`
12	Suspension Relay Part Number : `38306KJ6740`
13	Cable Comp Speedometer Part Number : `44830K46N01`
14	Guide Speedometer Cable Part Number : `44832K16900`
15	Screw Washer (4X10) Part Number : `90035166008`
16	Screw Tapping (3X14) Part Number : `90101KY6008`
17	Screw Pan 5X16 Part Number : `90102KYE900`
18	O-RING, 10X1.5 Part Number : `91256KK3840`
19	Screw Tapping 5X16 Part Number : `9390335320`
20	Socket Comp Part Number : `37224K46N21`
