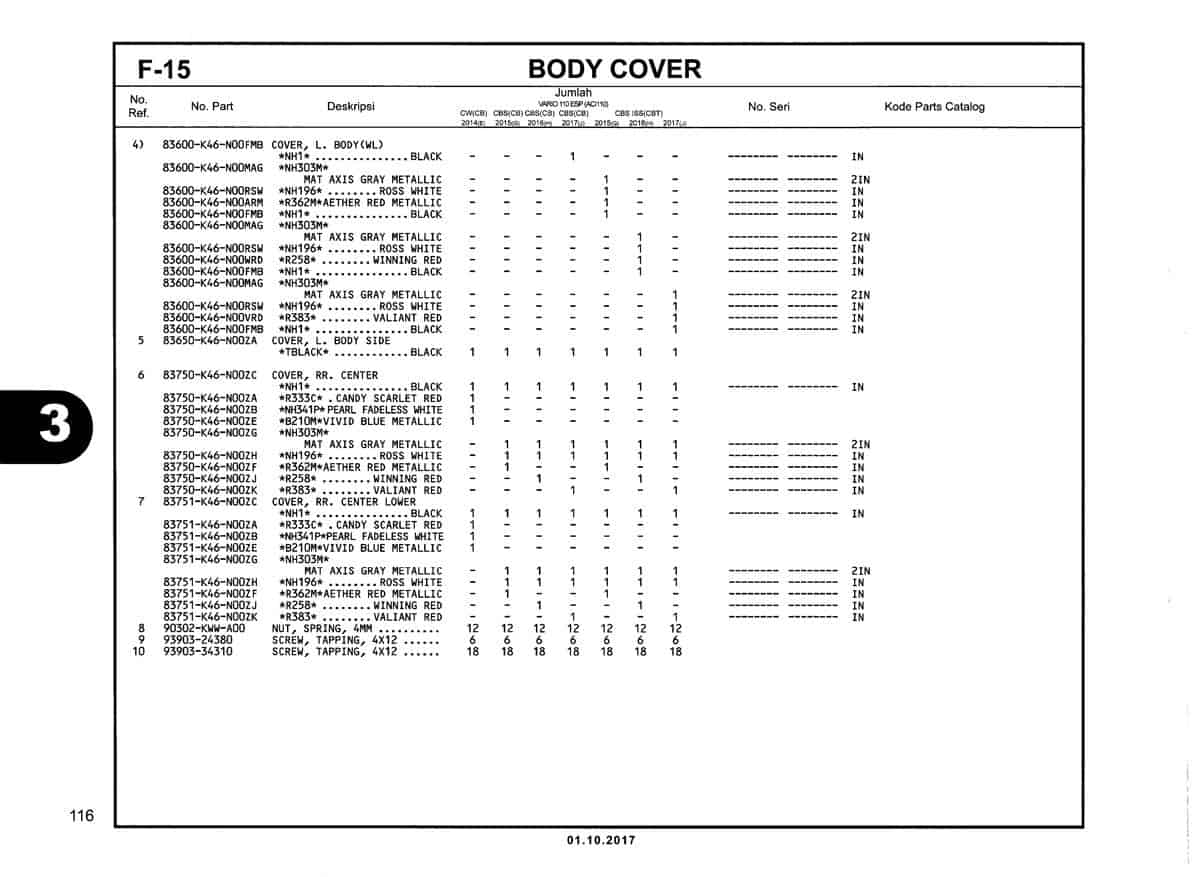

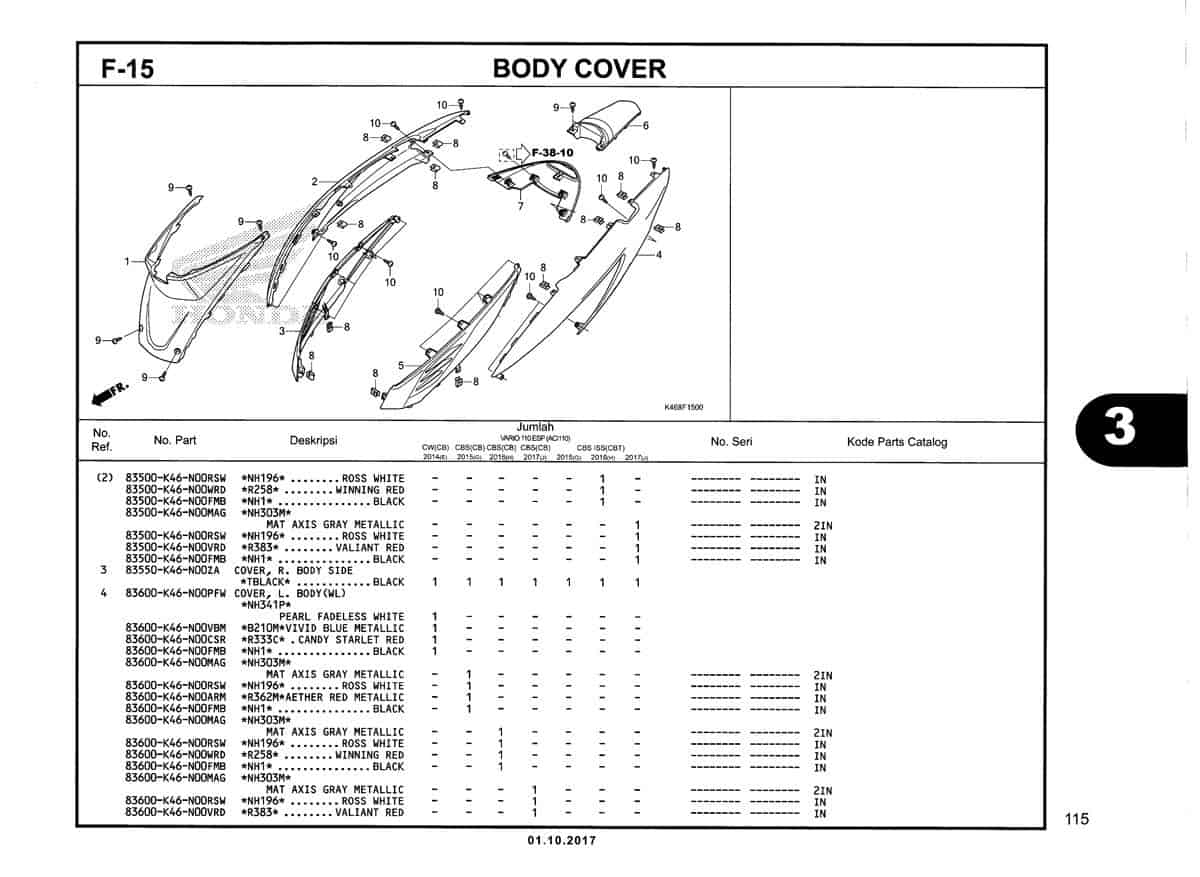

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Cover Center | 80151K46N00ZA |
|
| 2 | Cover R Body (PL FD WH) | 83500K46N00PFW |
|
| 2 | Cover R Body (VD BL MT) | 83500K46N00VBM |
|
| 2 | Cover R Body (CN SC RD) | 83500K46N00CSR |
|
| 2 | Cover R Body (BLK) | 83500K46N00FMB |
|
| 2 | Cover R Body (MA AX GY) | 83500K46N00MAG |
|
| 2 | Cover R Body (RO WH) | 83500K46N00RSW |
|
| 2 | Cover R Body (RED) | 83500K46N00WRD |
|
| 2 | Cover R Body (VA RD) | 83500K46N00VRD |
|
| 2 | Cover R Body (AE RD MT) | 83500K46N00ARM |
|
| 3 | Cover R Body Side | 83550K46N00ZA |
|
| 4 | Cover L Body (PL FD WH) | 83600K46N00PFW |
|
| 4 | Cover L Body (VD BL MT) | 83600K46N00VBM |
|
| 4 | Cover L Body (CN SC RD) | 83600K46N00CSR |
|
| 4 | Cover L Body (BLK) | 83600K46N00FMB |
|
| 4 | Cover L Body (MA AX GY) | 83600K46N00MAG |
|
| 4 | Cover L Body (RO WH) | 83600K46N00RSW |
|
| 4 | Cover L Body (AE RD MT) | 83600K46N00ARM |
|
| 4 | Cover L Body (RED) | 83600K46N00WRD |
|
| 4 | Cover L Body (VA RD) | 83600K46N00VRD |
|
| 5 | Cover L Body Side | 83650K46N00ZA |
|
| 6 | Cover RR Center (BLK) | 83750K46N00ZC |
|
| 6 | Cover RR Center (CN SC RD) | 83750K46N00ZA |
|
| 6 | Cover RR Center (PL FD WH) | 83750K46N00ZB |
|
| 6 | Cover RR Center (VD BL MT) | 83750K46N00ZE |
|
| 6 | Cover RR Center (MA AX GY) | 83750K46N00ZG |
|
| 6 | Cover RR Center (RO WH) | 83750K46N00ZH |
|
| 6 | Cover RR Center (AE RD MT) | 83750K46N00ZF |
|
| 6 | Cover RR Center (RED) | 83750K46N00ZJ |
|
| 6 | Cover RR Center (VA RD) | 83750K46N00ZK |
|
| 7 | Cover RR Center LWR Grey | 83751K46N00ZG |
|
| 7 | Cover RR Center Lower (BLK) | 83751K46N00ZC |
|
| 7 | Cover RR Center Lower (PL FD WH) | 83751K46N00ZB |
|
| 7 | Cover RR Center Lower (VD BL MT) | 83751K46N00ZE |
|
| 7 | Cover RR Center Lower (RO WH) | 83751K46N00ZH |
|
| 7 | Cover RR Center Lower (AE RD MT) | 83751K46N00ZF |
|
| 7 | Cover RR Center Lower RED) | 83751K46N00ZJ |
|
| 7 | Cover RR Center Lower (VA RD) | 83751K46N00ZK |
|
| 8 | Nut Spring 4MM | 90302KWWA00 |
|
| 9 | Screw Tapping 4X12 | 9390324380 |
|
| 10 | Screw Tapping 4X12 | 9390334310 |
|
