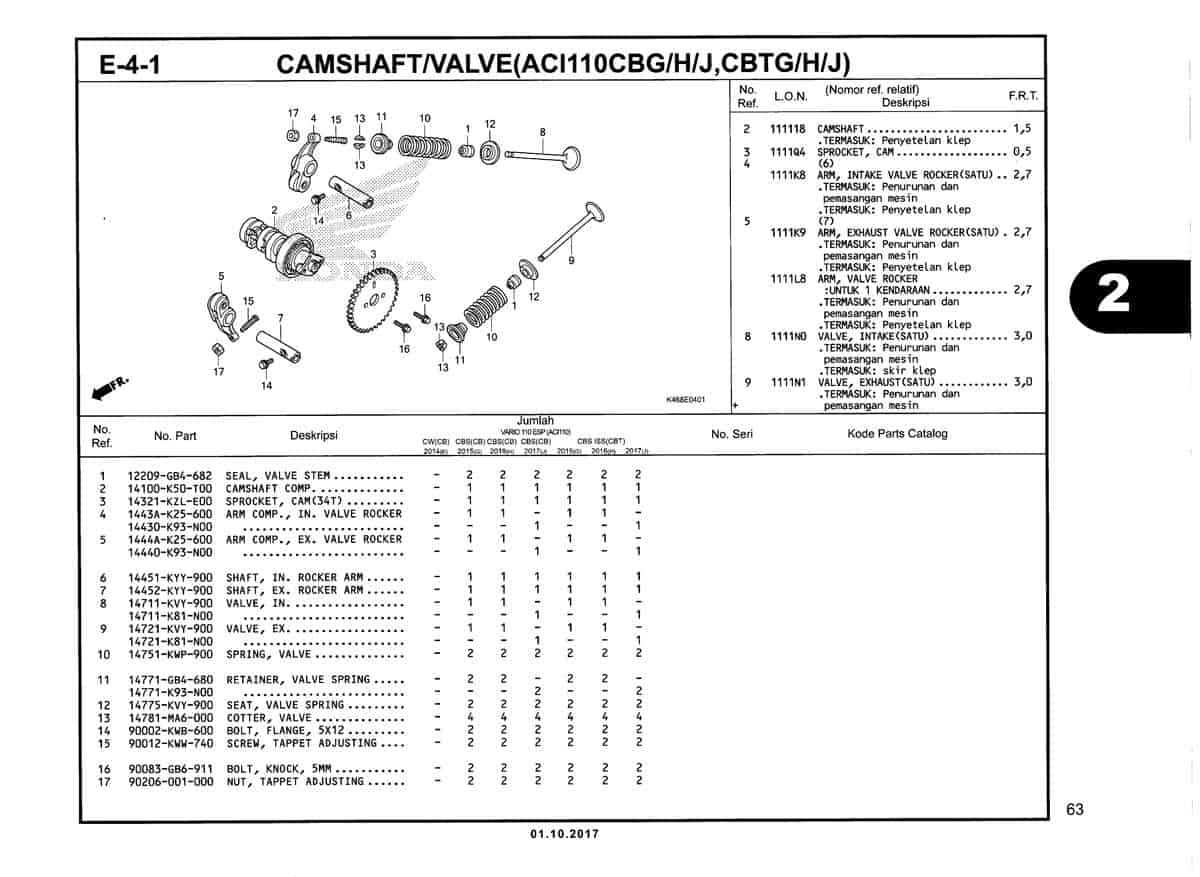

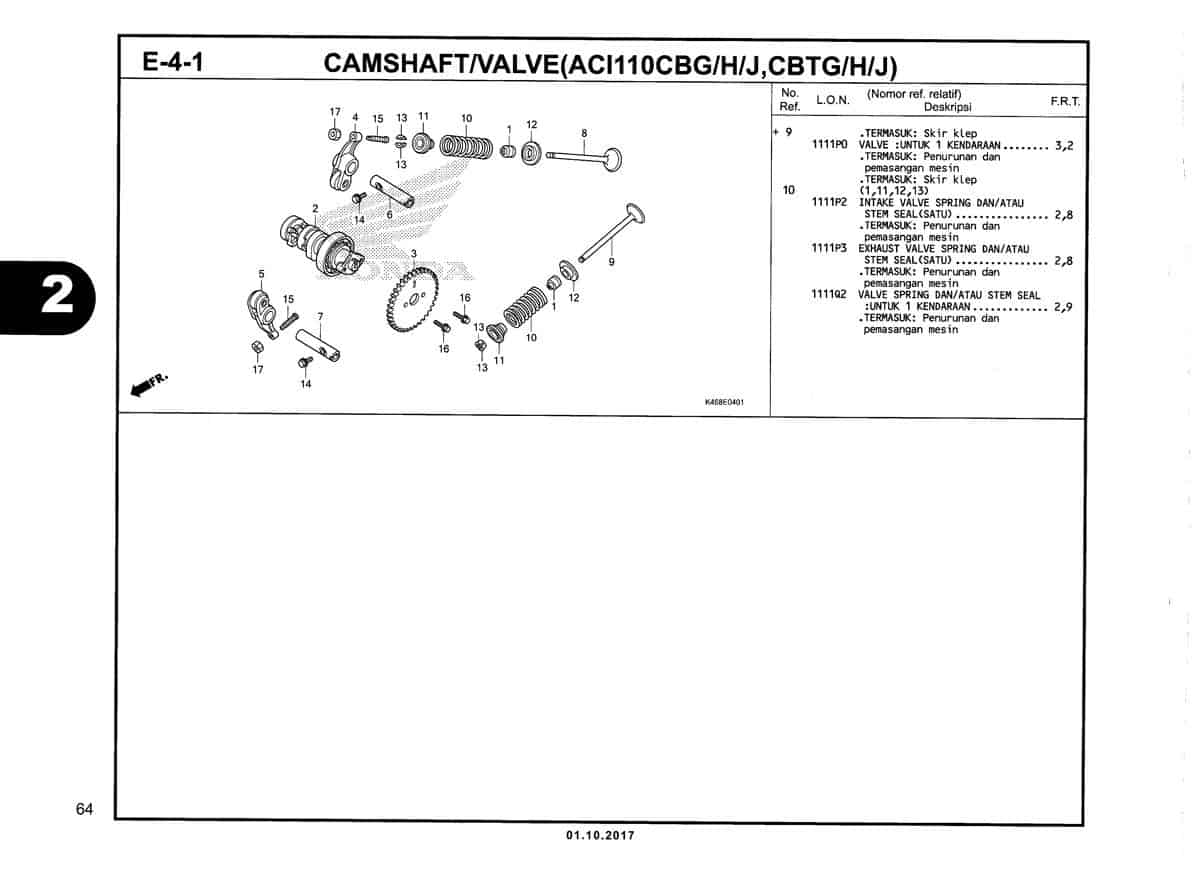

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Seal Valve Stem | 12209GB4682 |
|
| 2 | Camshaft Comp | 14100K50T00 |
|
| 3 | Sprocket Cam (34T) | 14321KZLE00 |
|
| 4 | Arm Assy In Valve Rocker | 1443AK25600 |
|
| 4 | Arm Comp In Valve | 14430K93N00 |
|
| 5 | Arm Assy Ex Valve Rocker | 1444AK25600 |
|
| 5 | Arm Comp Ex Valve | 14440K93N00 |
|
| 6 | Shaft In Rocker Arm | 14451KYY900 |
|
| 7 | Shaft Ex Rocker Arm | 14452KYY900 |
|
| 8 | Valve Inlet | 14711KVY900 |
|
| 8 | Valve Inlet | 14711K81N00 |
|
| 9 | Valve Exhaust | 14721KVY900 |
|
| 9 | Valve Exhaust | 14721K81N00 |
|
| 10 | Spring Valve | 14751KWP900 |
|
| 11 | Retainer | 14771GB4680 |
|
| 11 | Retainer Valve Spring | 14771K93N00 |
|
| 12 | Seat Valve Spring | 14775KVY900 |
|
| 13 | Cotter Valve | 14781MA6000 |
|
| 14 | Bolt Flange 5X12 | 90002KWB600 |
|
| 15 | Screw Tappet Adjusting | 90012KWW740 |
|
| 16 | Bolt Knock 5MM | 90083GB6911 |
|
| 17 | Nut Tappet Adjusting | 90206001000 |
|
