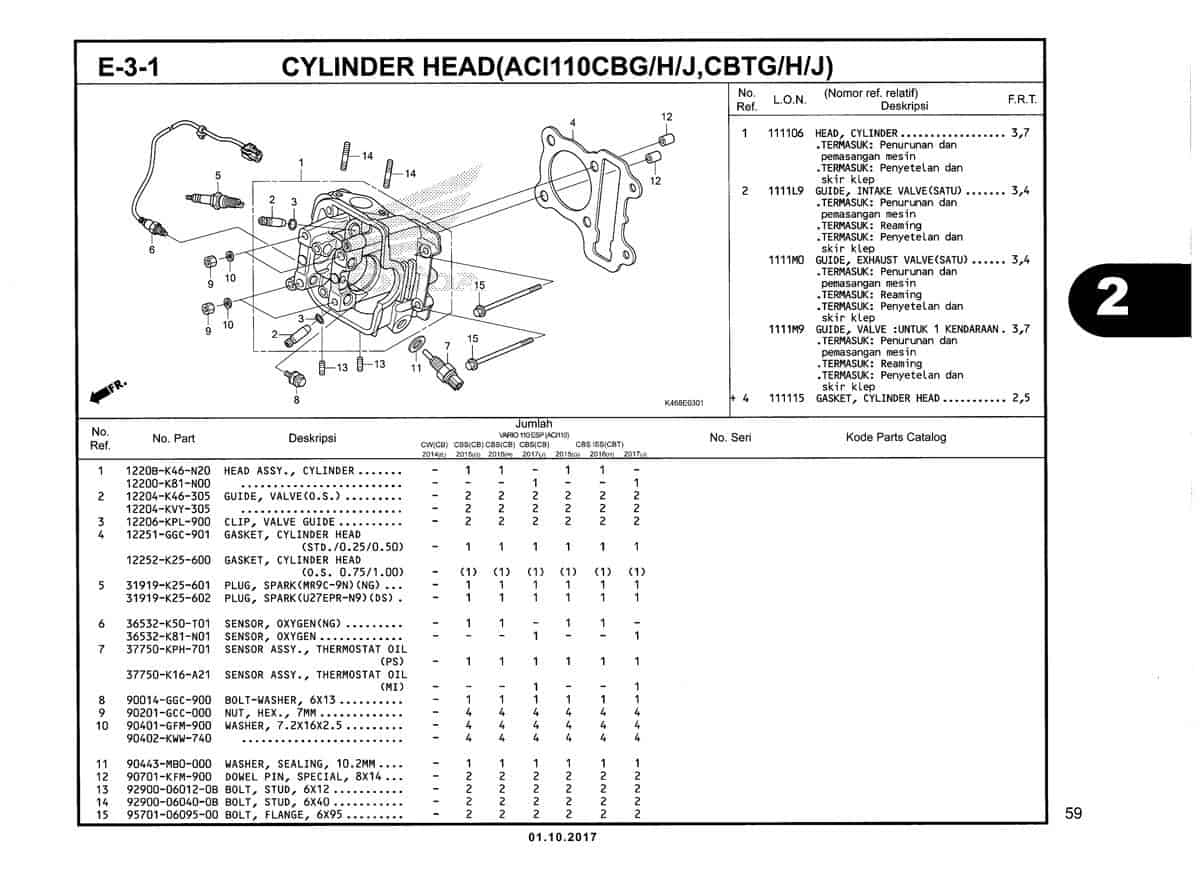

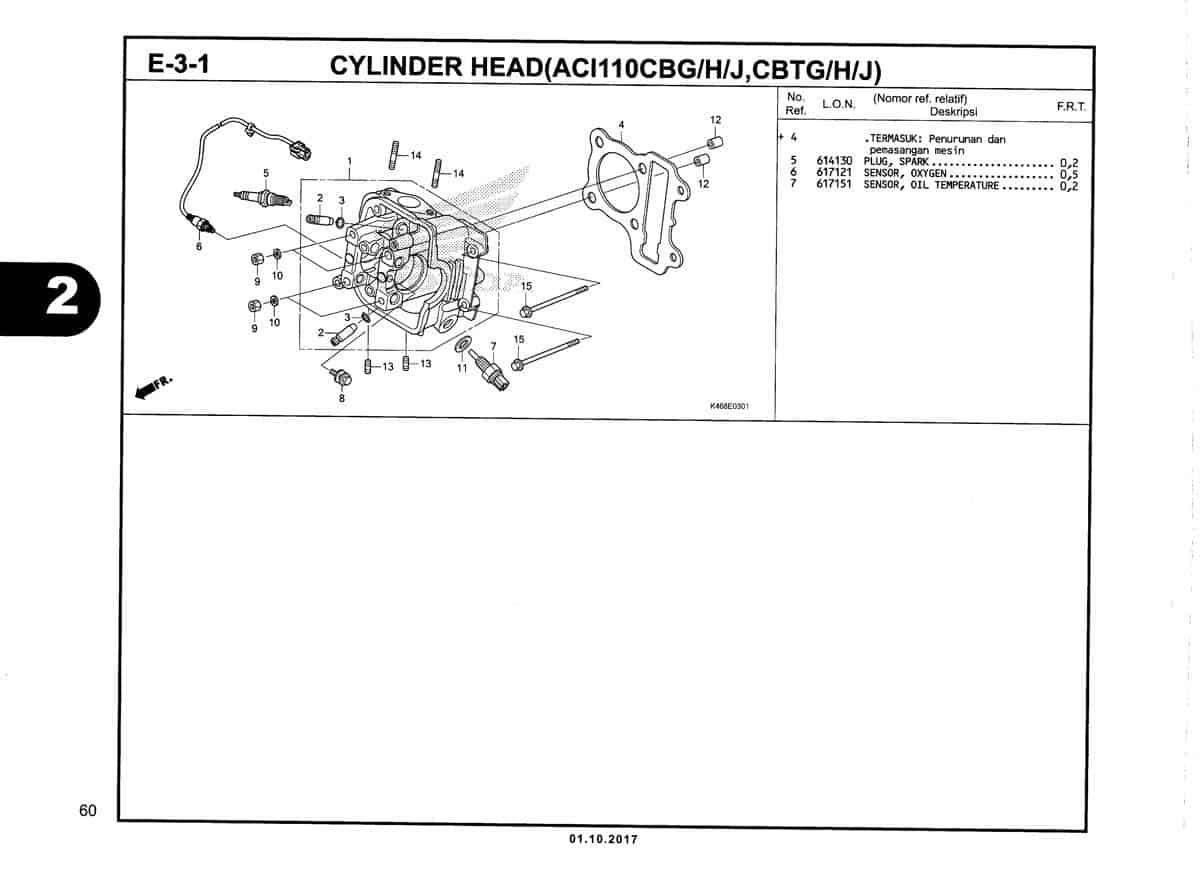

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Head Assy Cylinder | 1220BK46N20 |
|
| 1 | Head Comp Cylinder | 12200K81N00 |
|
| 2 | Guide Valve (O.S.) | 12204KVY305 |
|
| 3 | Clip Valve Guide | 12206KPL900 |
|
| 4 | Gasket Cylinder Head | 12251GGC901 |
|
| 4 | Gasket Cylinder Head (OS) | 12252K25600 |
|
| 5 | Spark Plug MR9C9N (NGK) | 31919K25601 |
|
| 5 | Spark Plug U27EPR-N9 (DS) | 31919K25602 |
|
| 6 | Sensor Oxygen | 36532K50T01 |
|
| 6 | Sensor Oxygen | 36532K81N01 |
|
| 7 | Sensor Assy | 37750KPH701 |
|
| 7 | Sensor Asi T-Oil | 37750K16A21 |
|
| 8 | Bolt Washer 6X13 | 90014GGC900 |
|
| 9 | Nut Hex 7MM | 90201GCC000 |
|
| 10 | Washer 7.2X16X2.5 | 90401GCC000 |
|
| 10 | Washer 7.2X16X2.5 | 90402KWW740 |
|
| 11 | Washer Sealing 10MM | 90443MB0000 |
|
| 12 | Dowel Pin Special 8X14 | 90701KFM900 |
|
| 13 | Bolt Stud 6X12 | 92900060120B |
|
| 14 | Bolt Stud 6X40 | 92900060400B |
|
| 15 | Bolt Flange 6X95 | 957010609500 |
|
