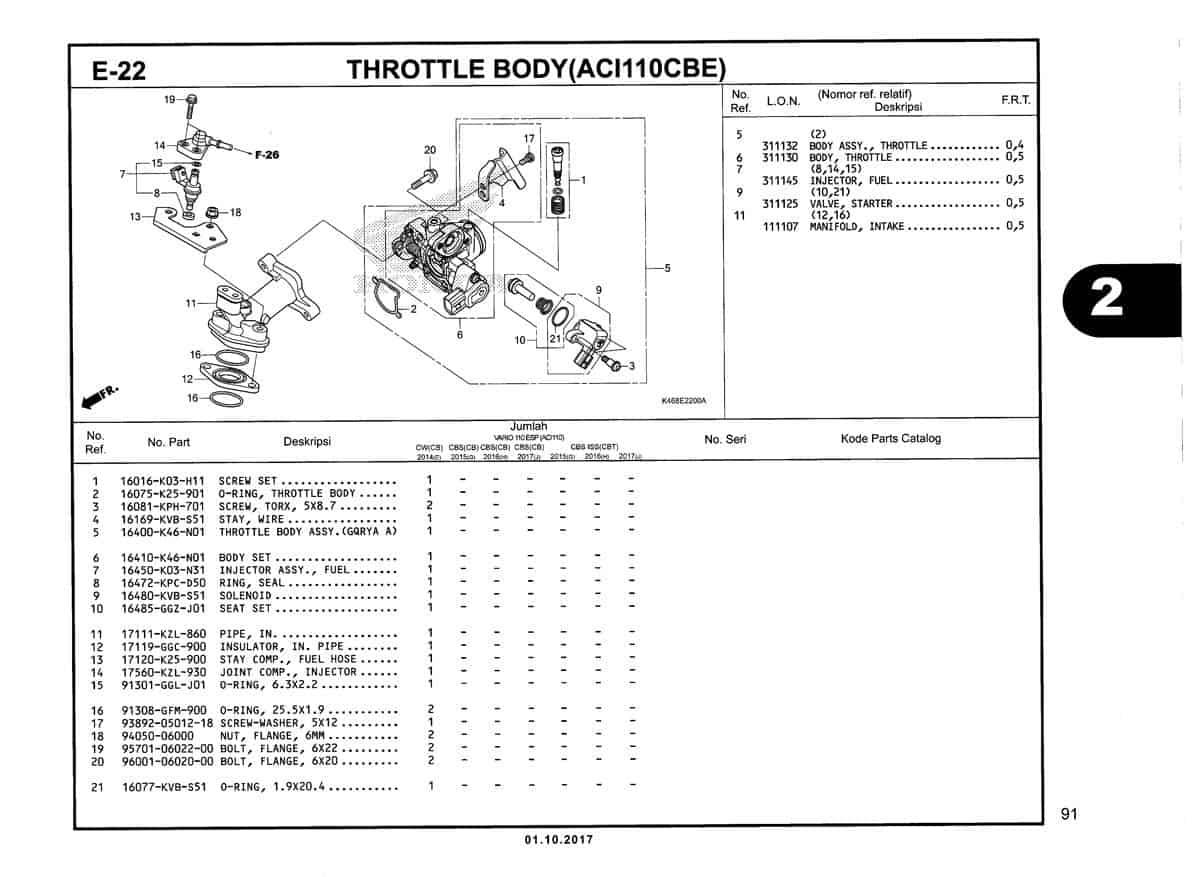

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Screw Set | 16016K03H11 |
|
| 2 | O-Ring Throttle Body | 16075K25901 |
|
| 3 | Screw Torx 5X8.7 | 16081KPH701 |
|
| 4 | Stay Wire | 16169KVBS51 |
|
| 5 | Throttle Body Assy | 16400K46N01 |
|
| 5 | Throttle Body Assy | 16400K25901 |
|
| 6 | Body Set | 16410K46N01 |
|
| 7 | Injector Assy Fuel | 16450K03N31 |
|
| 7 | Injector Assy Fuel | 16450K25901 |
|
| 8 | Ring Seal | 16472KPCD50 |
|
| 9 | Solenoid Set | 16480KVBS51 |
|
| 10 | Seat Set | 16485GGZJ01 |
|
| 11 | Pipe Inlet | 17111KZL860 |
|
| 12 | Insulator Inlet Pipe | 17119GGC900 |
|
| 13 | Stay Comp Fuel Hose | 17120K25900 |
|
| 14 | Joint Comp Injector | 17560KZL930 |
|
| 15 | O-Ring 6.3X2.2 | 91301GGLJ01 |
|
| 16 | O-Ring 25.5X1.9 | 91308GFM900 |
|
| 17 | Screut Flange Washer 5X12 | 938920501218 |
|
| 18 | Nut Flange 6MM | 9405006000 |
|
| 19 | Bolt Flange 6X22 | 957010602200 |
|
| 20 | Bolt Flange 6X20 | 960010602000 |
|
| 21 | O-Ring 20.4X1.9 | 16077KVBS51 |
|
