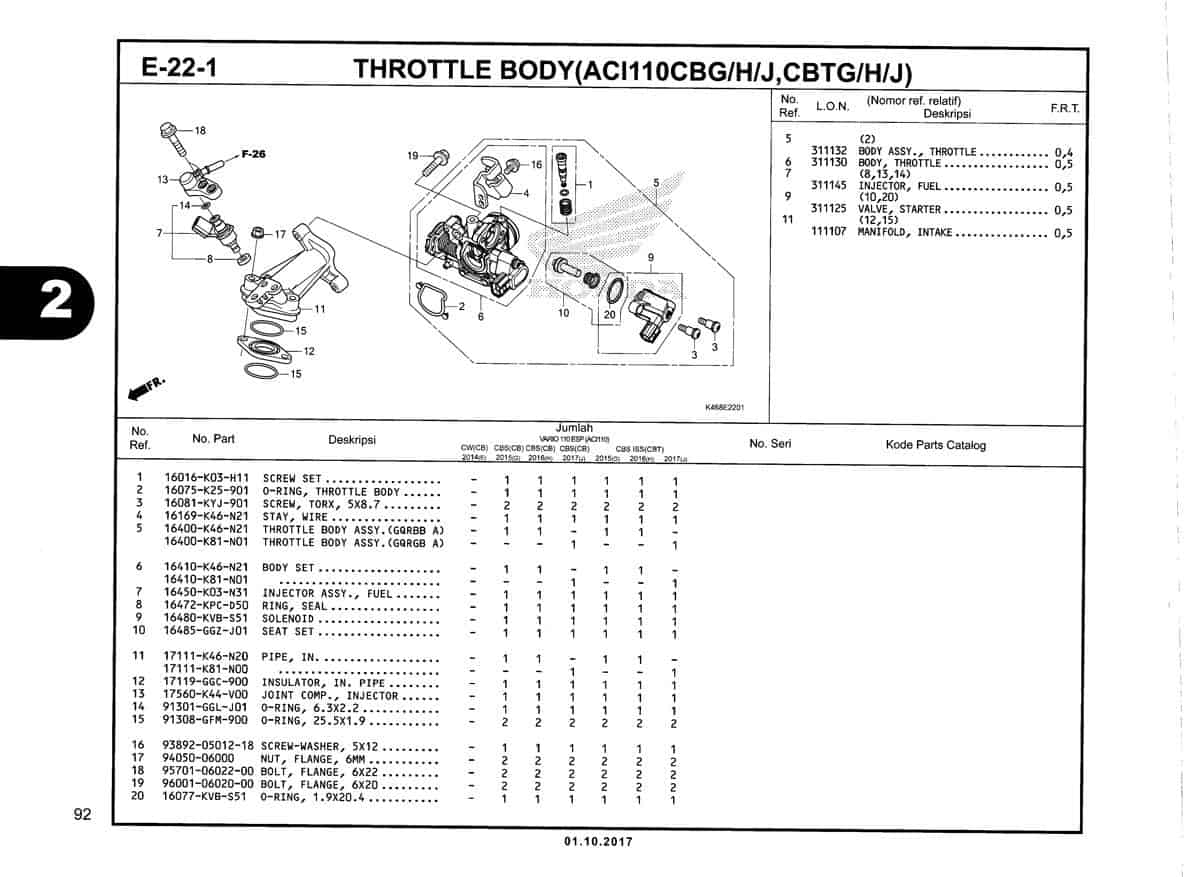

E22-1 – Throttle Body (ACI110CBG/H/J,CBTG/H/J) – Katalog Honda New Vario 110

#	Informasi Produk	Visual
1	Screw Set Part Number : `16016K03H11`
2	O-Ring Throttle Body Part Number : `16075K25901`
3	Screw Torx 5X8.7 Part Number : `16081KYJ901`
4	Stay Wire Part Number : `16169K46N21`
5	Throttle Body Assy (GQRBB A) Part Number : `16400K46N21`
5	Throttle Body Assy Part Number : `16400K81N01`
6	Body Set Part Number : `16410K46N21`
6	Body Set Part Number : `16410K81N01`
7	Injector Assy Fuel Part Number : `16450K03N31`
8	Ring Seal Part Number : `16472KPCD50`
9	Solenoid Set Part Number : `16480KVBS51`
10	Seat Set Part Number : `16485GGZJ01`
11	Pipe In Part Number : `17111K46N20`
11	Pipe Inlet Part Number : `17111K81N00`
12	Insulator Inlet Pipe Part Number : `17119GGC900`
13	Joint Comp Injector Part Number : `17560K44V00`
14	O-Ring 6.3X2.2 Part Number : `91301GGLJ01`
15	O-Ring 25.5X1.9 Part Number : `91308GFM900`
16	Screw Washer 5X12 Part Number : `938920501218`
17	Nut Flange 6MM Part Number : `9405006000`
18	Bolt Flange 6X22 Part Number : `957010602200`
19	Bolt Flange 6X20 Part Number : `960010602000`
20	O-Ring 204X19 Part Number : `16077KVBS51`
