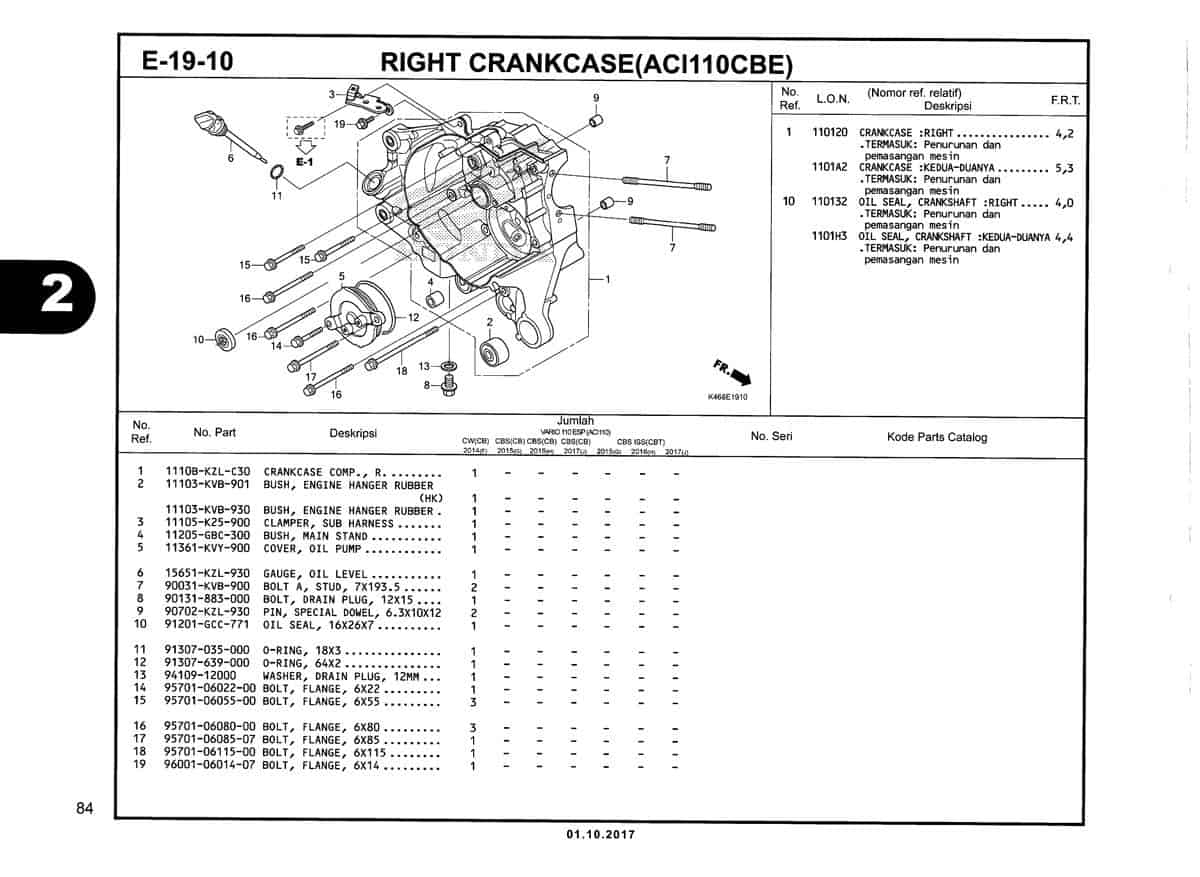

E19-10 – Right Crankcase (ACI110CBE) – Katalog Honda New Vario 110

#	Informasi Produk	Visual
1	Crankcase Comp R Part Number : `1110BKZLC30`
2	Bush Engine Hanger Rubber Part Number : `11103KVB901`
2	Bush Engine Hanger Rubber Part Number : `11103KVB930`
3	Clamper Sub Harness Part Number : `11105K25900`
4	Bbush Main Stand Part Number : `11205GBC300`
5	Cover Oil Pump Part Number : `11361KVY900`
6	Gauge Oil Level Part Number : `15651KZL930`
7	Bolt A Stud 7X193.5 Part Number : `90031KVB900`
8	Bolt Drain Plug 12X15 Part Number : `90131883000`
9	Pin Dowel Special 6.3X10X12 Part Number : `90702KZL930`
10	Oil Seal 16X26X7 Part Number : `91201GCC771`
11	O-Ring 18X3 Part Number : `91307035000`
12	O-Ring 64X2 Part Number : `91307639000`
13	Washer Drain Plug 12MM Part Number : `9410912000`
14	Bolt Flange 6X22 Part Number : `957010602200`
15	Bolt Flange 6X55 Part Number : `957010605500`
16	Bolt Flange 6X80 Part Number : `957010608000`
17	Bolt Flange 6X85 Part Number : `957010608507`
18	Bolt Flange 6X115 Part Number : `957010611500`
19	Bolt Flange SH 6X14 Part Number : `960010601407`
