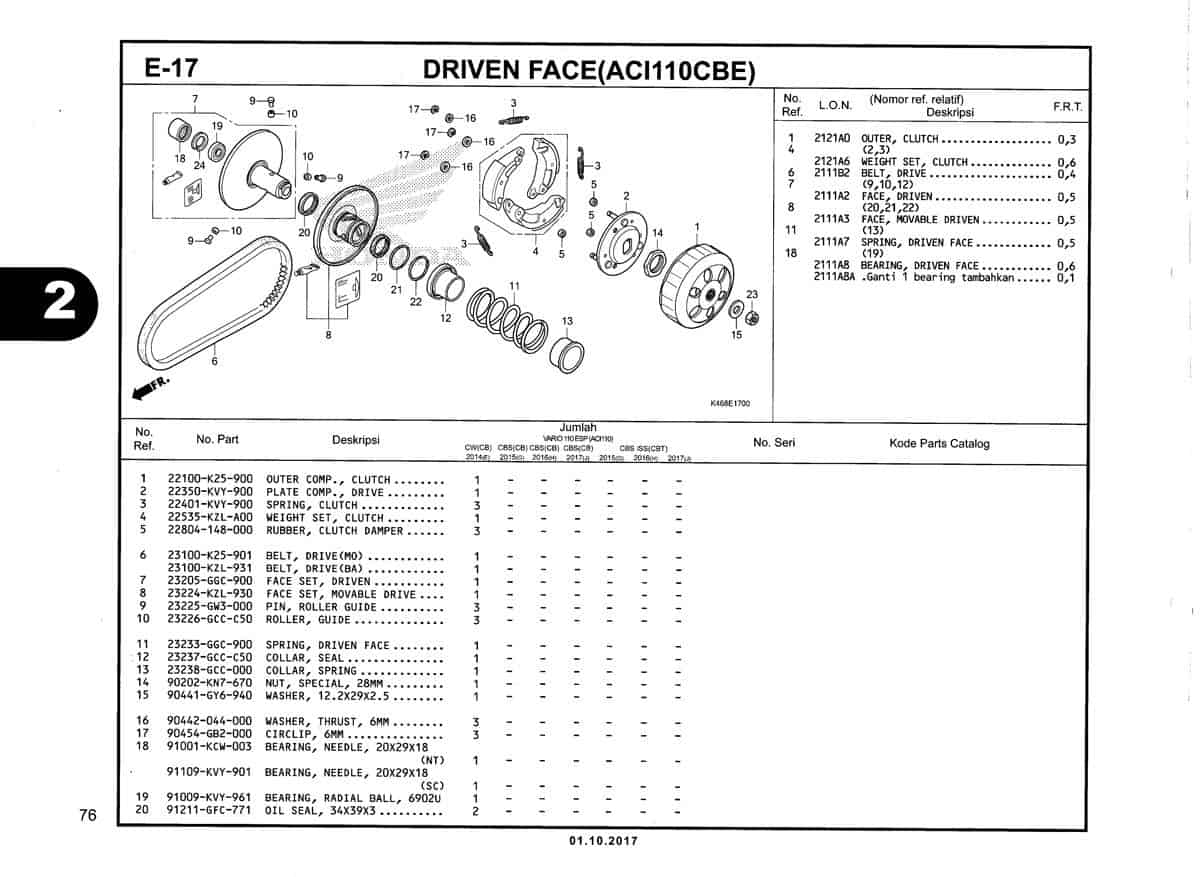

E17 – Driven Face (ACI110CBE) – Katalog Honda New Vario 110

#	Informasi Produk	Visual
1	Outer Comp Clutch Part Number : `22100K25900`
1	Outer Comp Clutch Part Number : `22100K16900`
2	Plate Comp Drive Part Number : `22350KVY900`
3	Spring Clutch Part Number : `22401KVY900`
4	Weight Set Clutch Part Number : `22535KZLA00`
5	Rubber Clutch Dumper Part Number : `22804148000`
5	Rubber Clutch Dumpe Part Number : `22804KWW742`
6	Belt Drive Part Number : `23100K25902`
6	Belt Drive Part Number : `23100KZL932`
7	Face Set Driven Part Number : `23205GGC900`
8	Face Set Movable Driven Part Number : `23224KZL930`
9	Pin Roller Guide Part Number : `23225GW3000`
10	Roller Guide Part Number : `23226GCCC50`
11	Spring Driven Face Part Number : `23233GGC900`
12	Collar Seal Part Number : `23237GCCC50`
13	Collar Spring Part Number : `23238GCC000`
14	Nut Special 30MM Part Number : `90202KN7670`
15	Washer 12.2X29X2.5 Part Number : `90441GY6940`
16	Washer Thrust 6MM Part Number : `90442044000`
17	Circlip 6MM Part Number : `90454GB2000`
18	Bearing Needle 20X29X18 Part Number : `91001KCW003`
18	Bearing Needle 20X29X18 Part Number : `91109KVY901`
19	Bearing Radial Ball 6902U Part Number : `91009KVY961`
20	Oil Seal 34X39X3 Part Number : `91211GFC771`
21	O-Ring 38.5X2 Part Number : `91351GR1000`
22	O-Ring Pinnion Cap Part Number : `91351642000`
23	Nut Hex 12MM Part Number : `9403012200`
24	Circlip Internal 28MM Part Number : `9452028000`
