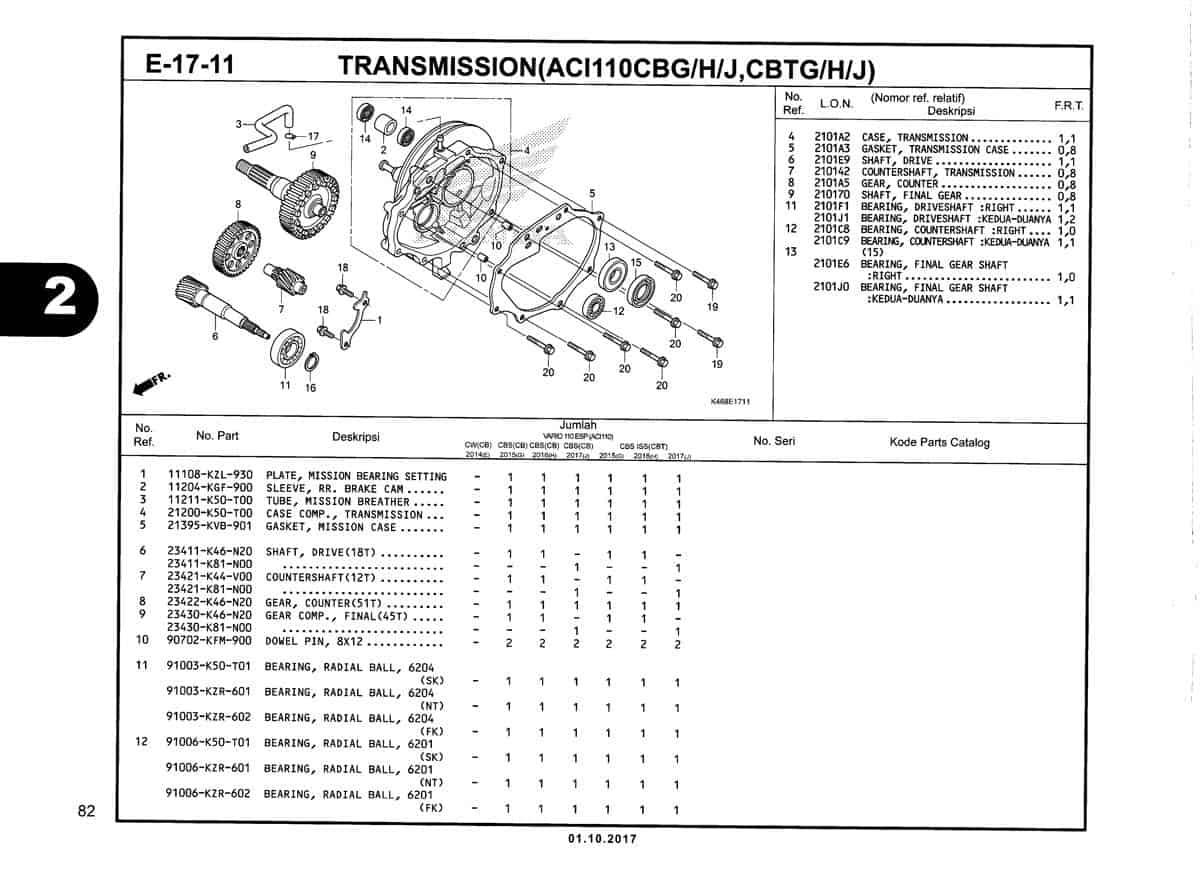

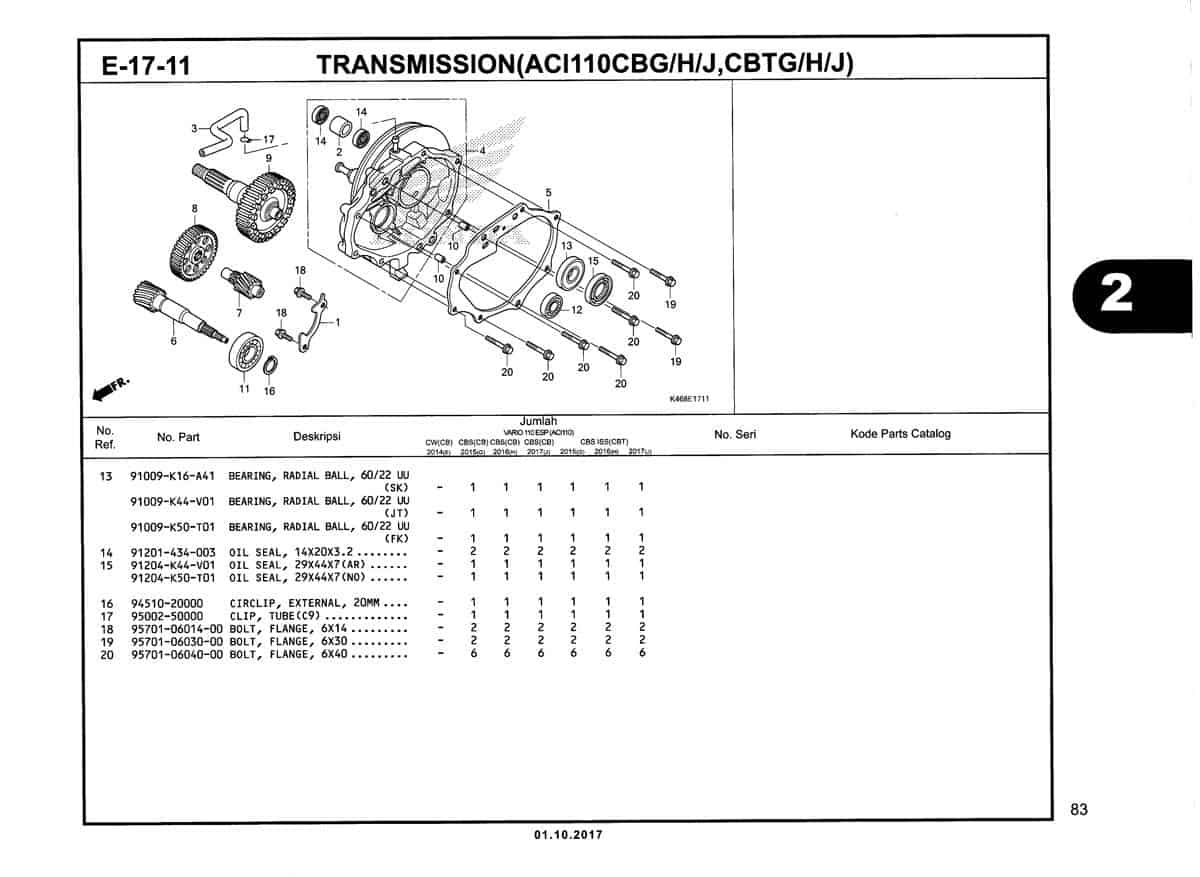

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | plate Mission Bearimg Set | 11108KZL930 |
|
| 2 | Sleeve RR Brake Cam | 11204KGF900 |
|
| 3 | Tube Mission Breather | 11211K50T00 |
|
| 4 | Case Comp Mission | 21200K25FA0 |
|
| 5 | Gasket Mission Case | 21395KVB901 |
|
| 6 | Shaft Drive | 23411K46N20 |
|
| 6 | Shaft Drive | 23411K81N00 |
|
| 7 | Counter Shaft (12T) | 23421K44V00 |
|
| 7 | Counter Shaft | 23421K81N00 |
|
| 8 | Gear Counter | 23422K46N20 |
|
| 9 | Gear Comp Final | 23430K46N20 |
|
| 9 | Gear Comp Final | 23430K81N00 |
|
| 10 | Pin Dowel 8X12 | 90702KFM900 |
|
| 11 | Bearing Radial Ball 6204 | 91003K50T01 |
|
| 11 | Bearing Radial Ball 6204 | 91003KZR601 |
|
| 11 | Bearing Radial Ball 6204 | 91003KZR602 |
|
| 11 | Bearing Radial Ball 6204 | 91001KE6831 |
|
| 12 | Bearing Radial Ball 6201 | 91006K50T01 |
|
| 12 | Bearing Radial Ball 6201 | 91006KZR601 |
|
| 12 | Bearing Radial Ball 6201 | 91006KZR602 |
|
| 12 | Bearing Ball 6201 | HB6201 |
|
| 12 | Bearing Ball 6201 | LF6201 |
|
| 13 | Bearing Radial Ball 60/22 UU | 91009K16A41 |
|
| 13 | Bearing Radial Ball 60/22UU | 91009K44V01 |
|
| 13 | Bearing Radial Ball 60/22 UU | 91009K50T01 |
|
| 14 | Oil Seal 14X20X3.2 | 91201434003 |
|
| 15 | Oil Seal 29X44X7 (NOK) | 91204K50T01 |
|
| 16 | Circlip External 20MM | 9451020000 |
|
| 17 | Clip Tube 5.0 MM | 9500250000 |
|
| 18 | Bolt Flange 6X14 | 957010601400 |
|
| 19 | Bolt Flange 6X30 | 957010603000 |
|
| 20 | Bolt Flange 6X40 | 957010604000 |
|
