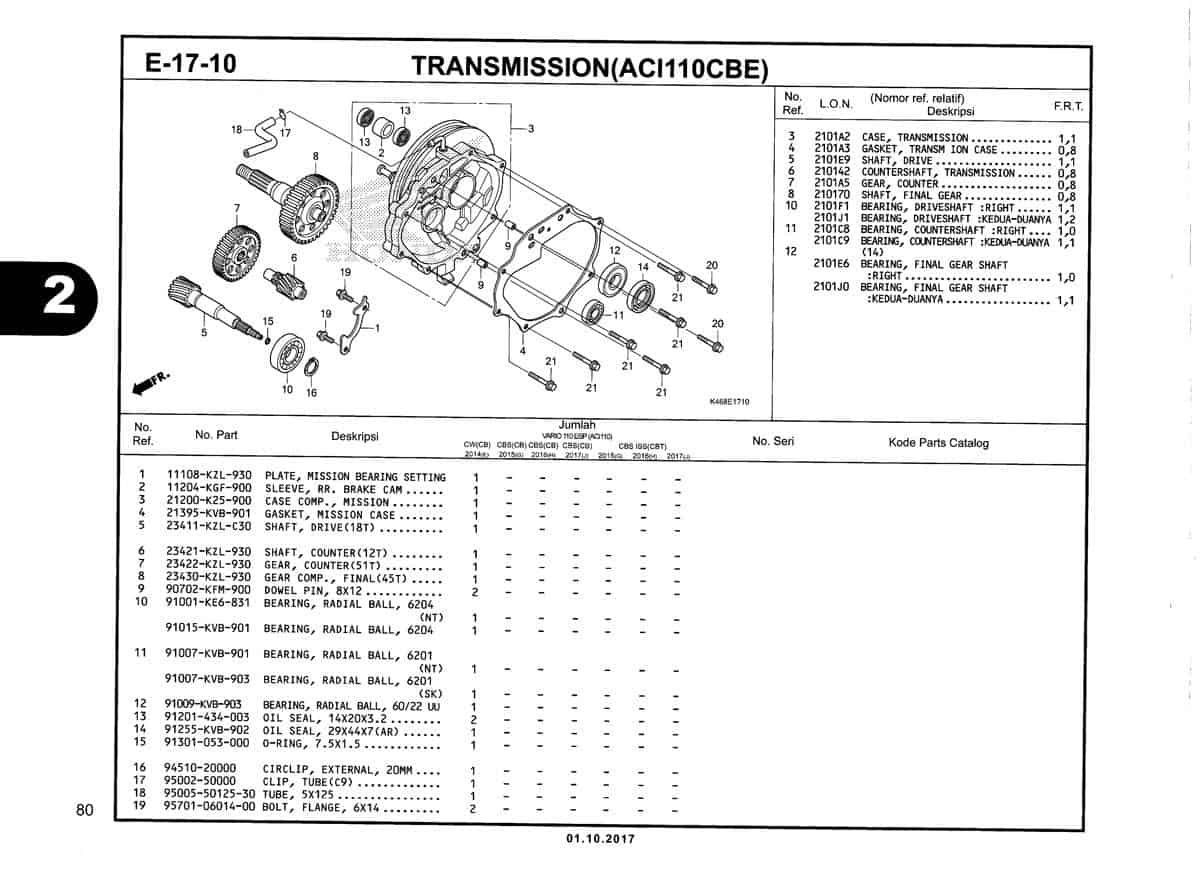

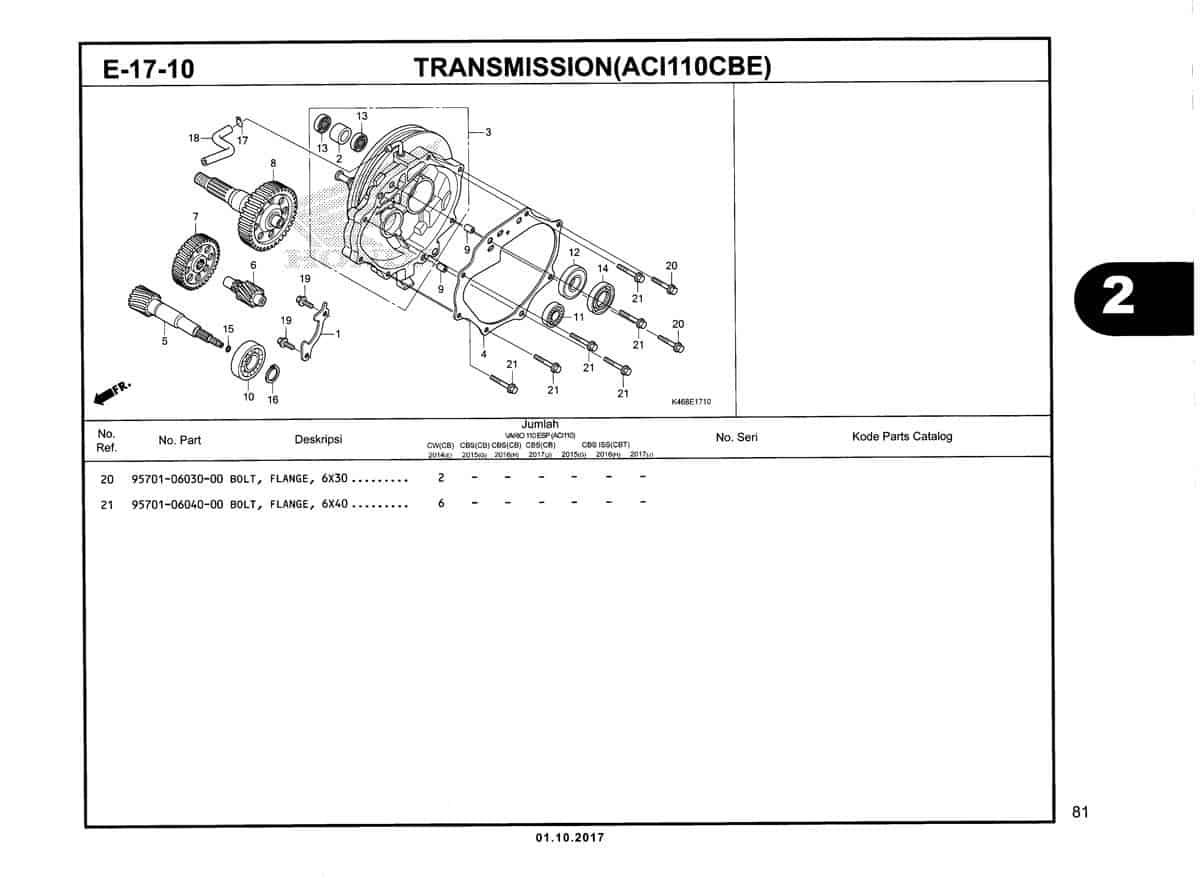

E17-10 – Transmission (ACI110CBE) – Katalog Honda New Vario 110

#	Informasi Produk	Visual
1	Plate Mission Bearing Set Part Number : `11108KZL930`
2	Sleeve RR Brake Cam Part Number : `11204KGF900`
3	Case Comp Mission Part Number : `21200K25FA0`
4	Gasket Mission Case Part Number : `21395KVB901`
5	Shaft Drive Part Number : `23411KZLC30`
6	Shaft Counter (12T) Part Number : `23421KZL930`
7	Gear Counter (51T) Part Number : `23422KZL930`
8	Gear Comp Final (45T) Part Number : `23430KZL930`
9	Pin Dowel 8X12 Part Number : `90702KFM900`
10	Bearing Radial Ball 6204 Part Number : `LF6204`
10	Bearing Radial Ball 6204 Part Number : `91001KE6831`
10	Bearing Radial Ball 6204 Part Number : `91015KVB901`
11	Bearing Radial Ball 6201 Part Number : `91007KVB903`
12	Bearing Radial Ball 60/22 UU Part Number : `91009KVB903`
13	Oil Seal 14X20X3.2 Part Number : `91201434003`
14	Oil Seal 29X44X7 Part Number : `91255KVB902`
15	O-Ring 7.5X1.5 Part Number : `91301053000`
16	Circlip External 20MM Part Number : `9451020000`
17	Clip Tube 5.0 MM Part Number : `9500250000`
18	Tube 5X125 Part Number : `950055012530`
19	Bolt Flange 6X14 Part Number : `957010601400`
20	Bolt Flange 6X30 Part Number : `957010603000`
21	Bolt Flange 6X40 Part Number : `957010604000`
