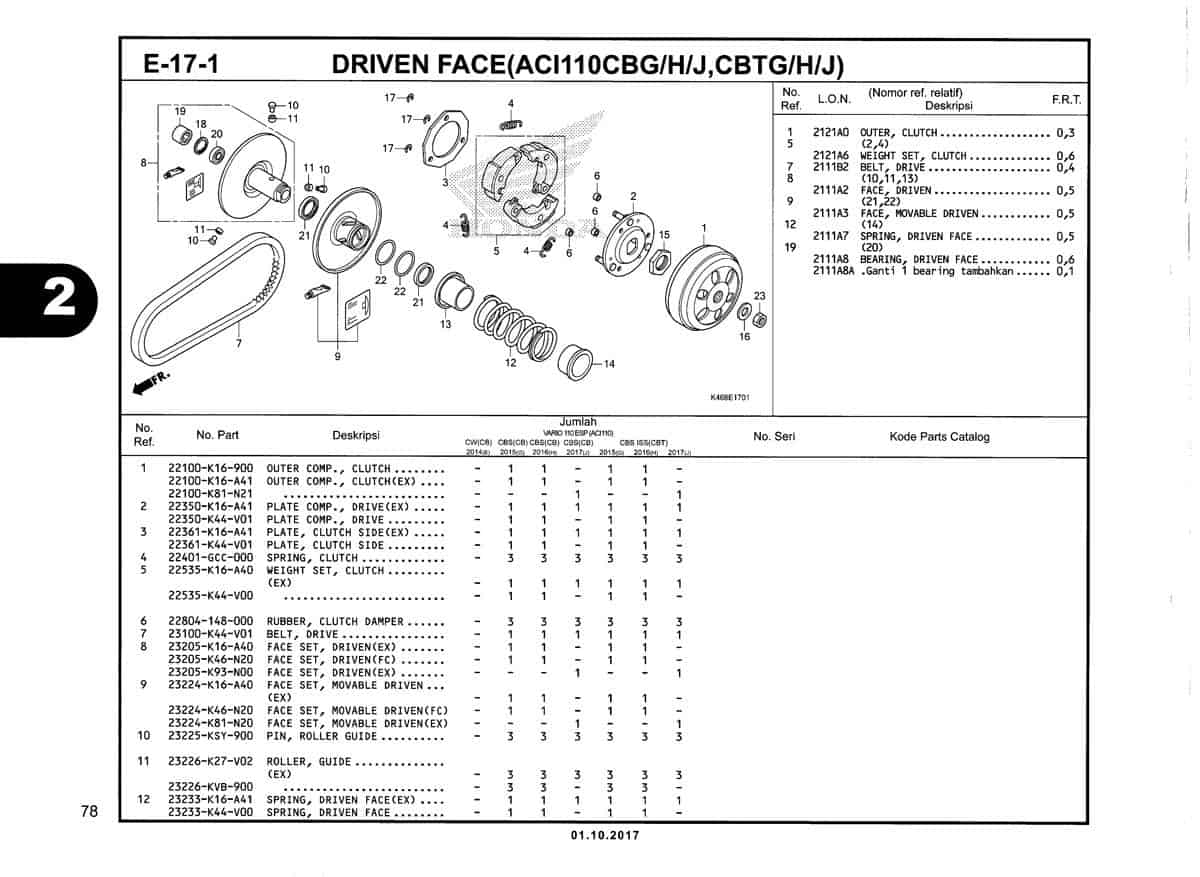

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Outer Comp Clutch | 22100K16900 |
|
| 1 | Outer Comp Clutch | 22100K0JN01 |
|
| 1 | Outer Comp Clutch | 22100K16A41 |
|
| 1 | Outer Comp Clutch | 22100K81N21 |
|
| 2 | Plate Comp Drive | 22350K16A41 |
|
| 2 | Plate Comp Drive | 22350K44V01 |
|
| 2 | Plate Comp Drive | 22350K2FN11 |
|
| 3 | Plate Clutch Side | 22361K16A41 |
|
| 3 | Plate Clutch Side | 22361K44V01 |
|
| 4 | Spring Clutch | 22401GCC000 |
|
| 5 | Weight Set Clutch | 22535K16A40 |
|
| 5 | Weight Set Clutch | 22535K44V00 |
|
| 6 | Rubber Clutch Dumper | 22804148000 |
|
| 7 | Belt Drive | 23100K44V01 |
|
| 8 | Face Set Driven (EX) | 23205K16A40 |
|
| 8 | Face Set Driven (F.C.C.) | 23205K46N20 |
|
| 8 | Face Set Driven | 23205K93N00 |
|
| 9 | Face Set Movable Driven (F.C.C.) | 23224K46N20 |
|
| 9 | Face Set Movable Driven | 23224K81N20 |
|
| 10 | Pin Roller Guide | 23225KSY900 |
|
| 11 | Roller Guide | 23226K27V02 |
|
| 11 | Roller Guide | 23226KVB900 |
|
| 12 | Spring Driven Face Ex | 23233K16A41 |
|
| 12 | Spring Driven Face | 23233K44V00 |
|
| 13 | Collar Seal | 23237K16A41 |
|
| 13 | Collar Seal | 23237GY6940 |
|
| 14 | Collar Spring | 23238K16A41 |
|
| 14 | Collar Spring | 23238GCC000 |
|
| 15 | Nut Special 30MM | 90202KN7670 |
|
| 16 | Washer 12.2X29X2.5 | 90441GY6940 |
|
| 17 | Circlip 4MM | 90454K16A41 |
|
| 17 | Circlip 6MM | 90454GB2000 |
|
| 18 | Circlip In 28 | 90464K27V02 |
|
| 18 | Circlip Internal 28MM | 9452028000 |
|
| 19 | Bearing Needle 20X29X18 | 91001KCW003 |
|
| 19 | Bearing Needle 20X29X18 | 91109KVY901 |
|
| 19 | Bearing Needle 20X29X18 | 91109KVY902 |
|
| 20 | Bearing Radial Ball 6902U | 91009KVY961 |
|
| 20 | Bearing Radial Ball 6902U | 91002GA7701 |
|
| 20 | Bearing Radial Ball 6902U | 91002GA7702 |
|
| 21 | Seal Driven Face 34X41X4 | 91211K44V01 |
|
| 22 | O-Ring Pinnion Cap | 91351642000 |
|
| 22 | O-Ring 38.8X1.9 | 91384KVB900 |
|
| 23 | Nut Hex 12MM | 9403012200 |
|
