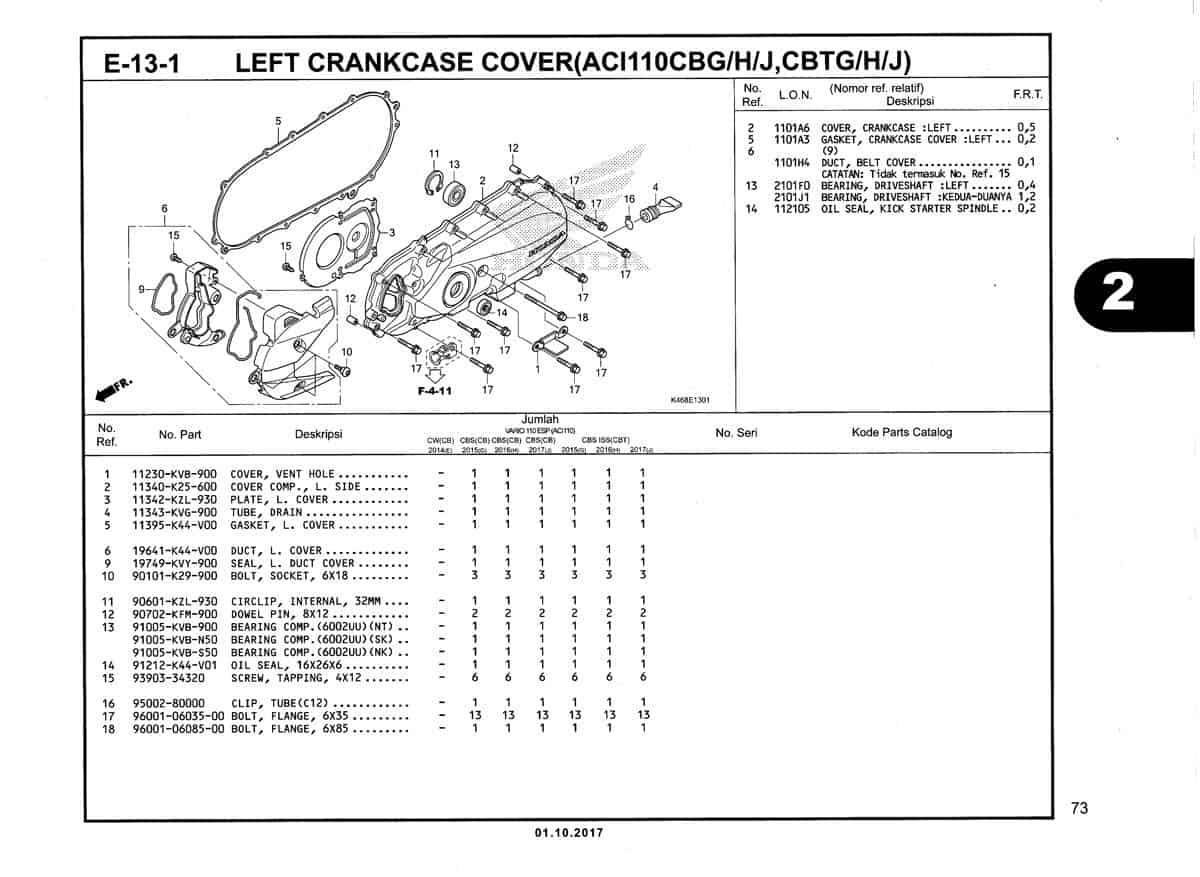

E13-1 – Left Crankcase Cover (ACI110CBG/H/J,CBTG/H/J) – Katalog Honda New Vario 110

#	Informasi Produk	Visual
1	Cover Vent Hole Part Number : `11230KVB900`
2	Cover Comp L Side Part Number : `11340K25600`
3	Plate L Cover Part Number : `11342KZL930`
4	Tube Drain Part Number : `11343KVG900`
5	Gasket L Cover Part Number : `11395K44V00`
6	Duct L Cover Part Number : `19641K44V00`
9	Seal L Cover Duct Part Number : `19749KVY900`
10	Bolt Socket 6X18 Part Number : `90101K29900`
11	Circlip In 32 Part Number : `90601KZL930`
12	Pin Dowel 8X12 Part Number : `90702KFM900`
12	Pin Dowel 8X12 Part Number : `90702KVRC00`
13	Bearing Comp Drive Shaft Part Number : `91010K1AN80`
13	Bearing Comp Drive Shaft Part Number : `91005KVBN50`
14	Oil Seal 16X26X6 Part Number : `91212K44V01`
15	Screw Tapping 4X12 Part Number : `9390334320`
16	Clip Tube C12 Part Number : `9500280000`
17	Bolt Flange 6X35 Part Number : `960010603500`
18	Bolt Flange 6X85 Part Number : `960010608500`
