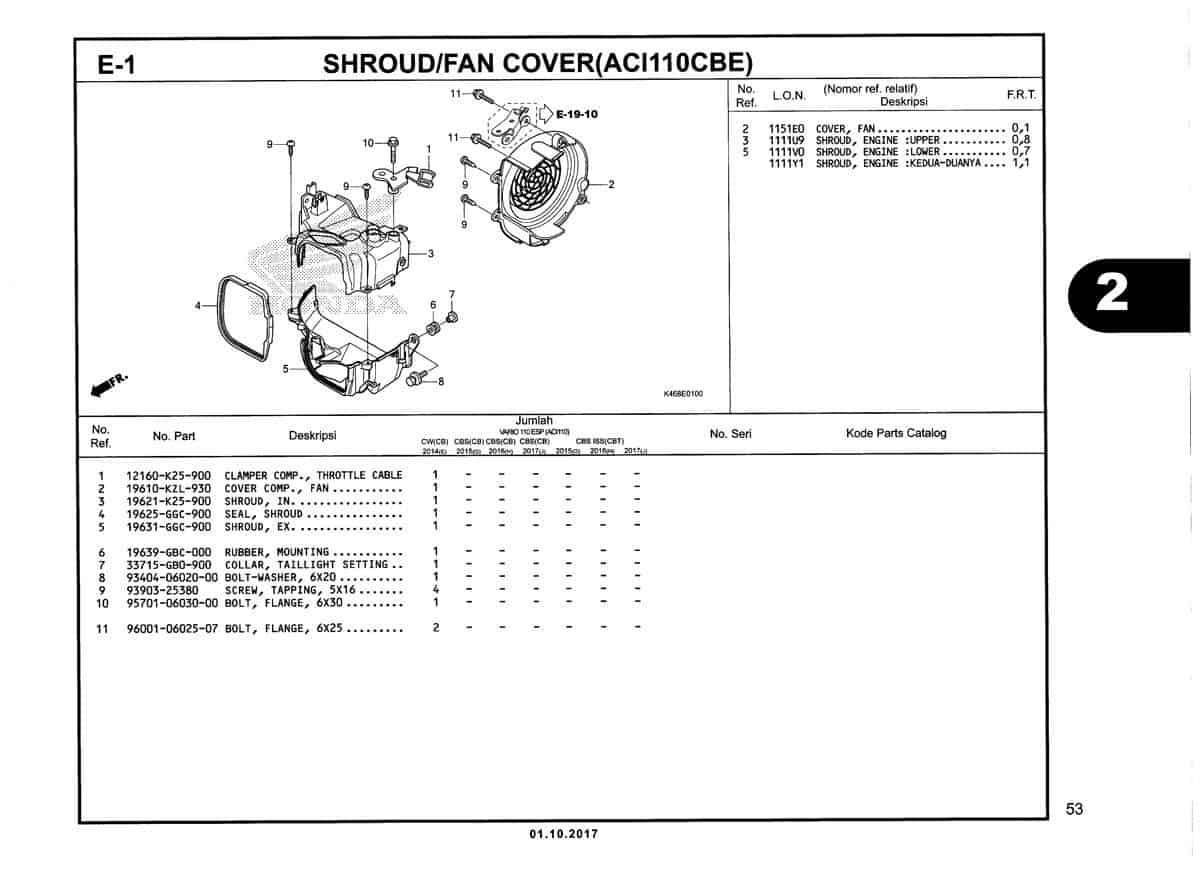

E1 – Shround/Fan Cover (ACI110CBE) – Katalog Honda New Vario 110

#	Informasi Produk	Visual
1	Clamper Comp Throttle Cable Part Number : `12160K25900`
2	Fan Cover Comp Part Number : `19610KZL930`
2	Cover Comp Fan Part Number : `19610K44V00`
3	Shroud Comp Part Number : `19621K25900`
4	Seal Shroud Part Number : `19625GGC900`
5	Shroud Ex Part Number : `19631GGC900`
6	Rubber Mount Part Number : `19639GBC000`
7	Collar Taillight Setting Part Number : `33715GB0900`
8	Bolt Washer 6X20 Part Number : `934040602000`
9	Screw Tapping 5X16 Part Number : `9390325380`
10	Bolt Flange 6X30 Part Number : `957010603000`
11	Bolt Flange 6X25 Part Number : `960010602507`
