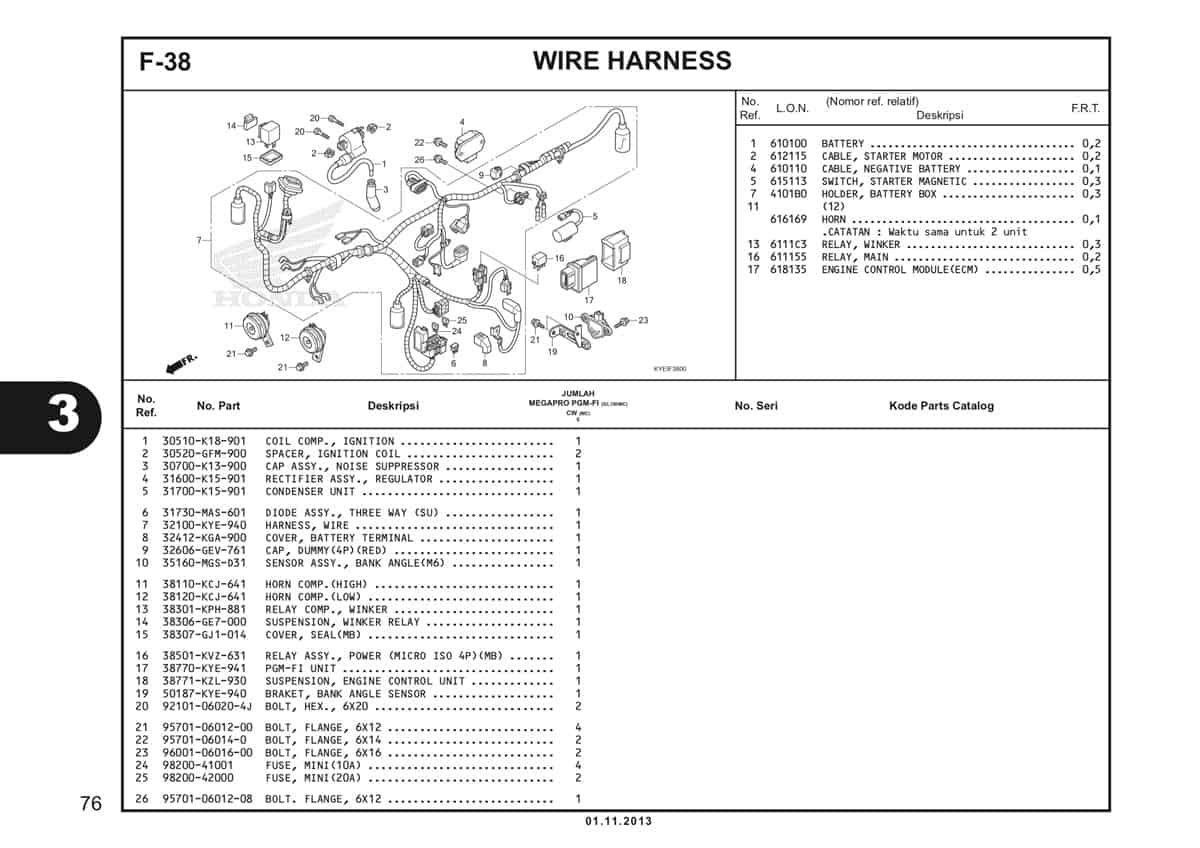

F38 – Wire Harness – Katalog Honda New Mega Pro FI KYE

#	Informasi Produk	Visual
1	Coil Comp Ignition Part Number : `30510K18901`
2	Spacer Ignition Coil Part Number : `30520GFM900`
3	Cap Assy Noise Suppressor Part Number : `30700K13900`
4	Rectifier Assy Regulator Part Number : `31600K15901`
5	Condenser Assy Part Number : `31700K15901`
6	Diode Assy 3Way Part Number : `31730MAS601`
7	Harness Wire Part Number : `32100KYE940`
8	Cover Battery Terminal Part Number : `32412KGA900`
9	Dummy WPC 4P 090 M (RED) Part Number : `32606GEV761`
10	Sensor Assy Bank Angle Part Number : `35160MGSD31`
11	Horn Comp (HIGH) Part Number : `38110KCJ641`
12	Horn Comp (LOW) Part Number : `38120KCJ641`
13	Relay Comp Winker Part Number : `38301KPH881`
13	Relay Comp Winker Part Number : `38301GBG911`
14	Suspension Relay Part Number : `38306GE7000`
15	Cover Seal Part Number : `38307GJ1014`
16	Relay Comp Micro Iso Low Hight Part Number : `38501KVZ631`
17	Unit Assy PGM-FI/IGN Part Number : `38770KYE941`
18	Suspension Engine Control Part Number : `38771KZL930`
19	Braket Bank Angel Sensor Part Number : `50187KYE940`
20	Bolt Hex 6X20 Part Number : `92101060204J`
21	Bolt Flange 6X12 Part Number : `957010601200`
22	Bolt Flange 6X14 Part Number : `957010601400`
23	Bolt Flange SH 6X16 Part Number : `960010601600`
24	Fuse Mini (10A) Part Number : `9820041000`
25	Fuse Mini (20A) Part Number : `9820042000`
26	Bolt Flange 6X12 Part Number : `957010601208`
