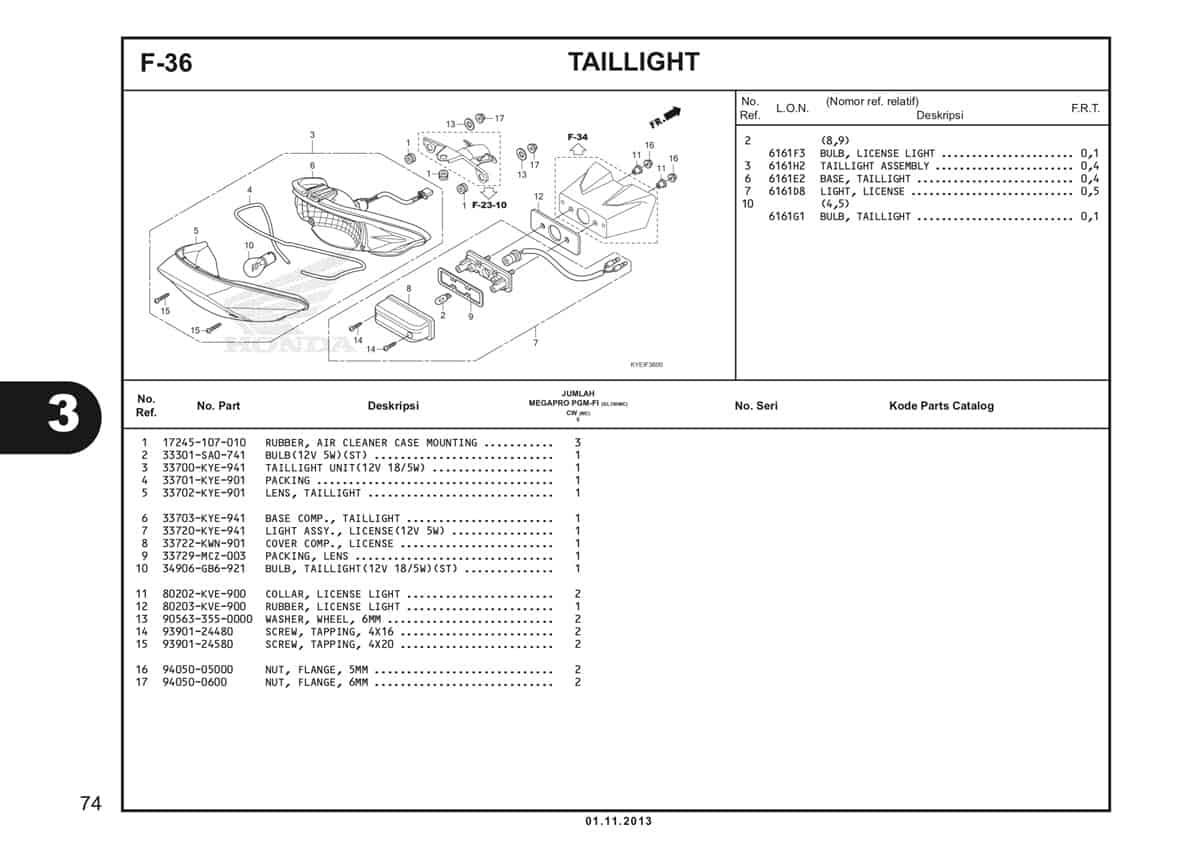

F36 – Taillight – Katalog Honda New Mega Pro FI KYE

#	Informasi Produk	Visual
1	Rubber Mount Part Number : `17245107010`
2	Bulb (12V5W) Part Number : `33301SA0741`
3	Taillight Unit Part Number : `33700KYE941`
4	Packing Part Number : `33701KYE901`
5	Lens Taillight Part Number : `33702KYE901`
7	Light Assy License Part Number : `33720KYE941`
8	Cover Comp License Part Number : `33722KWN901`
9	Packing Lens Part Number : `33729MCZ003`
10	Bulb Taillight Part Number : `34906GB6921`
11	Collar Lisence Light Part Number : `80202KVE900`
12	Rubber Lisence Light Part Number : `80203KVE900`
13	Washer Wheel 6 MM Part Number : `905633550000`
14	Screw Tapping 4X16 Part Number : `9390124480`
15	Screw Tapping (4X20) Part Number : `9390124580`
16	Nut Flange 5MM Part Number : `9405005000`
17	Nut Flange 6MM Part Number : `9405006000`
