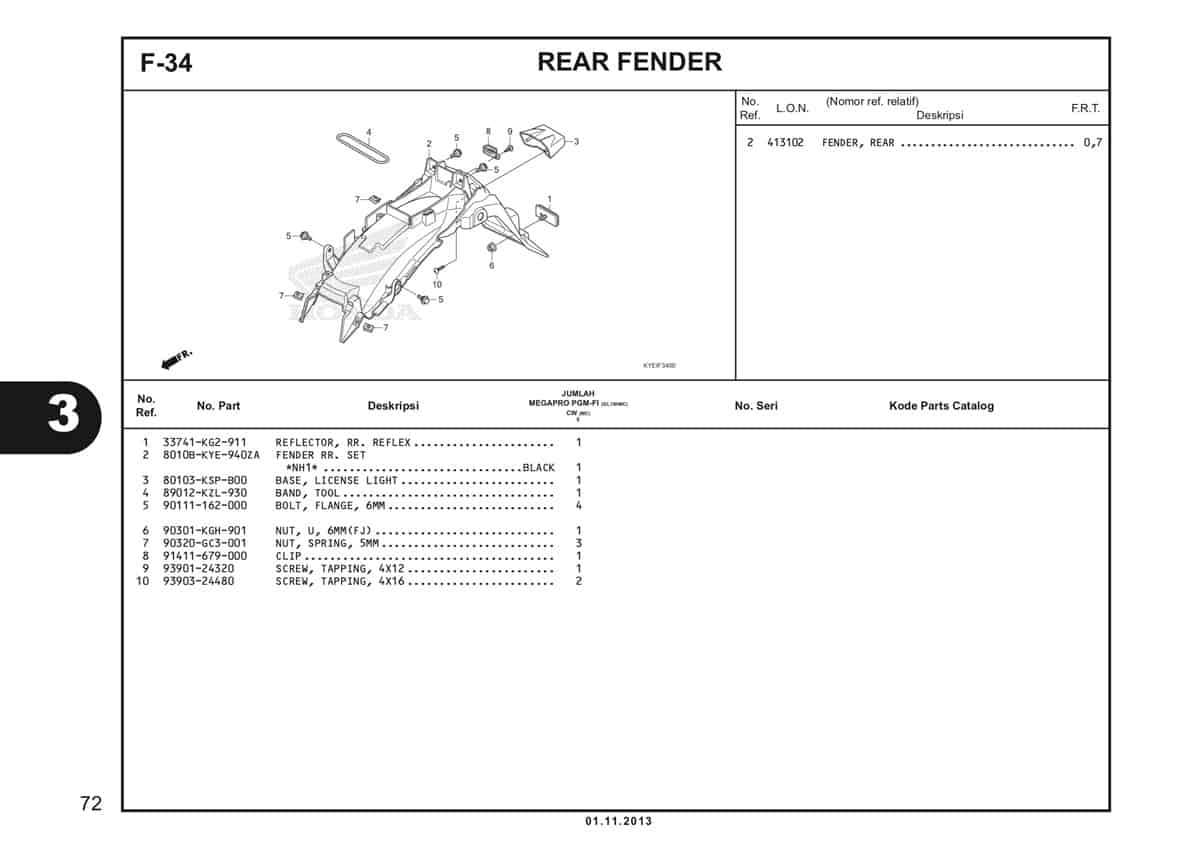

F34 – Rear Fender – Katalog Honda New Mega Pro FI KYE

#	Informasi Produk	Visual
1	Reflector RR Reflex Part Number : `33741KG2911`
2	Fender RR Set (BLK) Part Number : `8010BKYE940`
3	Base License Light Part Number : `80103KSPB00`
4	Band Tool Part Number : `89012KZL930`
5	Bolt Flange 6MM Part Number : `90111162000`
6	Nut U 6MM Part Number : `90301KGH901`
7	Nut Spring 5MM Part Number : `90320GC3000`
8	Clip Part Number : `91411679000`
9	Screw Tapping 4X12 Part Number : `9390124320`
10	Screw Tapping 4X16 Part Number : `9390324480`
