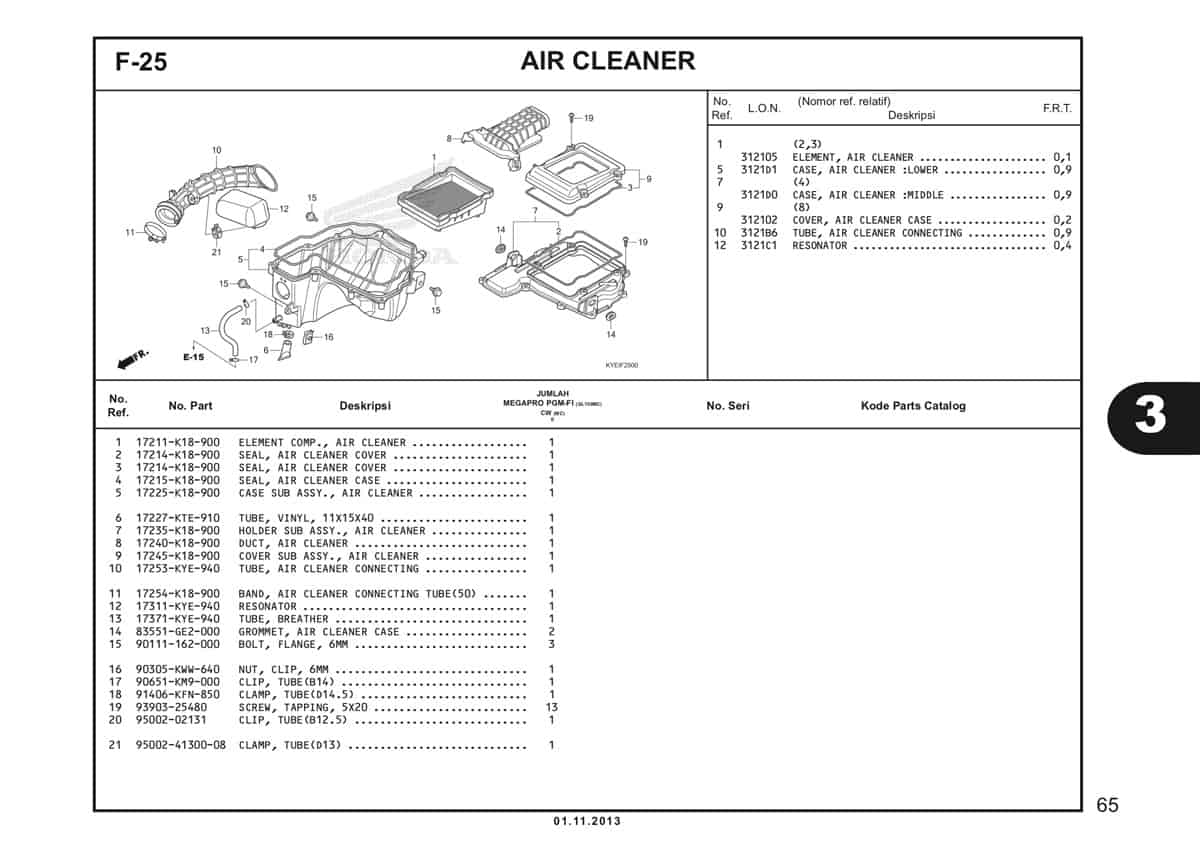

F25 – Air Cleaner – Katalog Honda New Mega Pro FI KYE

#	Informasi Produk	Visual
1	Element Comp A/C Part Number : `17211K18900`
2	Seal Air Cleaner Cover Part Number : `17214K18900`
3	Seal Air Cleaner Cover Part Number : `17214K18900`
4	Seal Air Cleaner Case Part Number : `17215K18900`
5	Case Sub Assy Air Cleaner Part Number : `17225K18900`
6	Tube Vinyl 11X15X40 Part Number : `17227KTE910`
7	Holder Sub Assy Air Cleaner Part Number : `17235K18900`
8	Duct Air Cleaner Part Number : `17240K18900`
9	Cover Sub Assy Air Cleaner Part Number : `17245K18900`
10	Tube A/C Connecting Part Number : `17253KYE940`
11	Band A/C Connecting Part Number : `17254K18900`
12	Resonator Part Number : `17311KYE940`
13	Tube Breather Part Number : `17371KYE940`
14	Grommet A/C Part Number : `83551GE2000`
15	Bolt Flange 6MM Part Number : `90111162000`
16	Nut Clip 6MM Part Number : `90305KWW640`
17	Clip B14 Tube Part Number : `90651KM9000`
18	Clamp D 14.5 Tube Part Number : `91406KFN850`
19	Screw Tapping 5X2 Part Number : `9390325480`
20	Clip Tube (B12.5) Part Number : `9500202130`
21	Clamp Tube (D13) Part Number : `950024130008`
