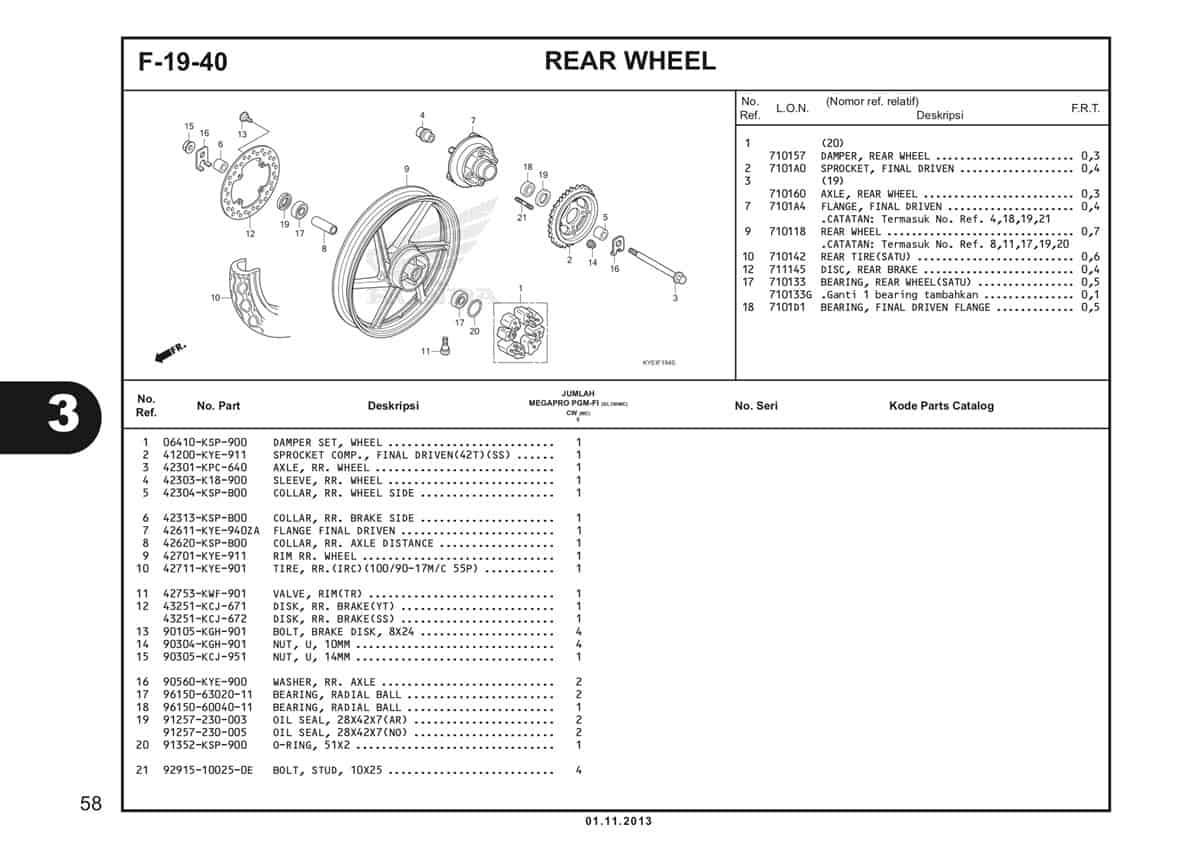

F19 – 40 – Rear Wheel – Katalog Honda New Mega Pro FI KYE

#	Informasi Produk	Visual
1	Damper Set Wheel Part Number : `06410KSP900`
1	DAMPER SET,WHEEL Part Number : `41241KSP900`
2	Sprocket Comp Final Driven Part Number : `41200KYE911`
3	Axle RR Wheel Part Number : `42301KPC640`
4	Sleeve RR Wheel Part Number : `42303K18900`
5	Collar RR Wheel Side Part Number : `42304KSPB00`
6	Collar RR Brake Side Part Number : `42313KSPB00`
8	Collar RR Axle Distance Part Number : `42620KSPB00`
9	Rim RR Wheel Part Number : `42701KYE911`
10	Tire RR (100/90-17 T/L) Part Number : `42711KYE901`
11	Valve Rim (TRITON) Part Number : `42753KWF901`
12	Disk RR Brake Part Number : `43251KCJ672`
14	Nut U 10MM Part Number : `90304KGH901`
15	Nut U 14MM Part Number : `90305KCJ951`
16	Washer RR Axle Part Number : `90560KYE900`
17	Bearing Radial Ball Part Number : `961506302011`
18	Bearing Radial Ball Part Number : `961506004011`
18	Bearing Radial Ball 6004UU Part Number : `91052K45N03`
19	Oil Seal 28X42X7 Part Number : `91257230003`
19	Oil Seal 28X42X7 Part Number : `91257230005`
20	O-Ring 51X2 Part Number : `91352KSP900`
21	Bolt Stud 10X25 Part Number : `92915100250E`
