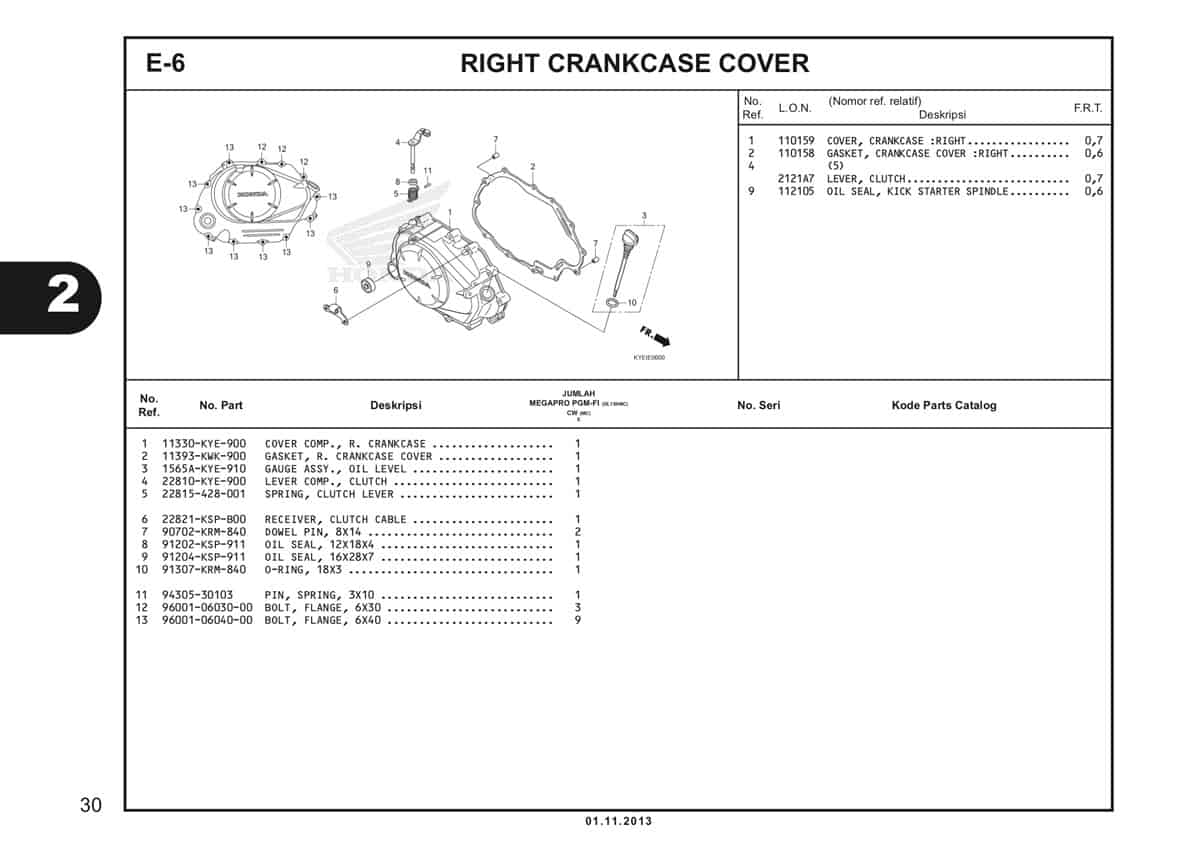

E6 – Right Crankcase Cover – Katalog Honda New Mega Pro FI KYE

#	Informasi Produk	Visual
1	COVER COMP. R CRANK CASE Part Number : `11330KYE900`
2	Gasket Rear Cover Part Number : `11393KWK900`
2	Gasket Rear Cover Part Number : `11393KYAC00`
3	Gauge Assy Oil Level Part Number : `15651KSP910`
3	Gauge Assy Oil Level Part Number : `15651K84N00`
4	LEVER COMP CLUTCH Part Number : `22810KYE900`
5	SPRING, CLUTCH LEVER Part Number : `22815428000`
6	RECEIVER CLUTCH CABLE Part Number : `22821KSPB00`
7	PIN DOWEL 8X14 Part Number : `90702KRM840`
8	OIL SEAL,12X18X4 Part Number : `91202KSP911`
9	OIL SEAL,16X28X7 Part Number : `91204KSP911`
10	O-RING,18X3 Part Number : `91307KRM840`
11	PIN SPRING 3X10 Part Number : `9430530102`
12	BOLT FLANGE 6X30 Part Number : `960010603000`
13	BOLT FLANGE 6X40 Part Number : `960010604000`
