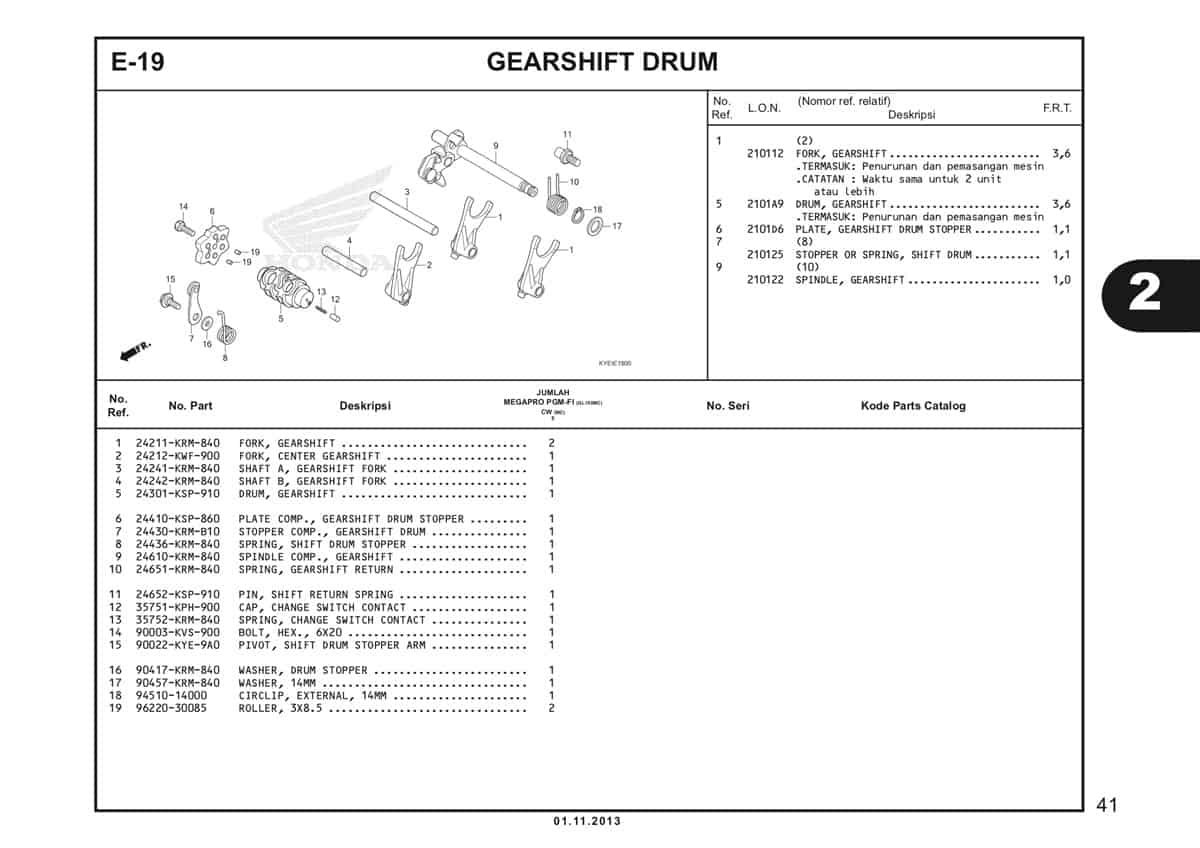

E19 – Gearshift Drum – Katalog Honda New Mega Pro FI KYE

#	Informasi Produk	Visual
1	Fork Gearshift Part Number : `24211KRM840`
2	Fork Center Gearshift Part Number : `24212KWF900`
3	Shaft A Gear Shift Fork Part Number : `24241KRM840`
4	Shaft B Gear Shift Fork Part Number : `24242KRM840`
5	Drum Gear Shift Part Number : `24301KSP910`
6	Plate Comp Shift Drum Part Number : `24410KSP860`
7	Stopper Comp Gear Shift Drum Part Number : `24430KRMB10`
8	Spring Drum Stopper Part Number : `24436KRM840`
9	Spindle Comp Gear Shift Part Number : `24610KRM840`
10	Spring Shift Return Part Number : `24651KRM840`
11	Pin Shift Return Spring Part Number : `24652KSP910`
12	Cap Contact Change Switch Part Number : `35751KPH900`
13	Spring Change Switch Contact Part Number : `35752KRM840`
14	Bolt Hex 6X20 Part Number : `90003KVS900`
15	Pivot Shift Drum Stopper Arm Part Number : `90022KYE9A0`
16	Washer Drum Stopper Part Number : `90417KRM840`
17	Washer 14MM Part Number : `90457KRM840`
18	Circlip 14MM Part Number : `9451014000`
19	Roller 3X8.5 Part Number : `9622030085`
