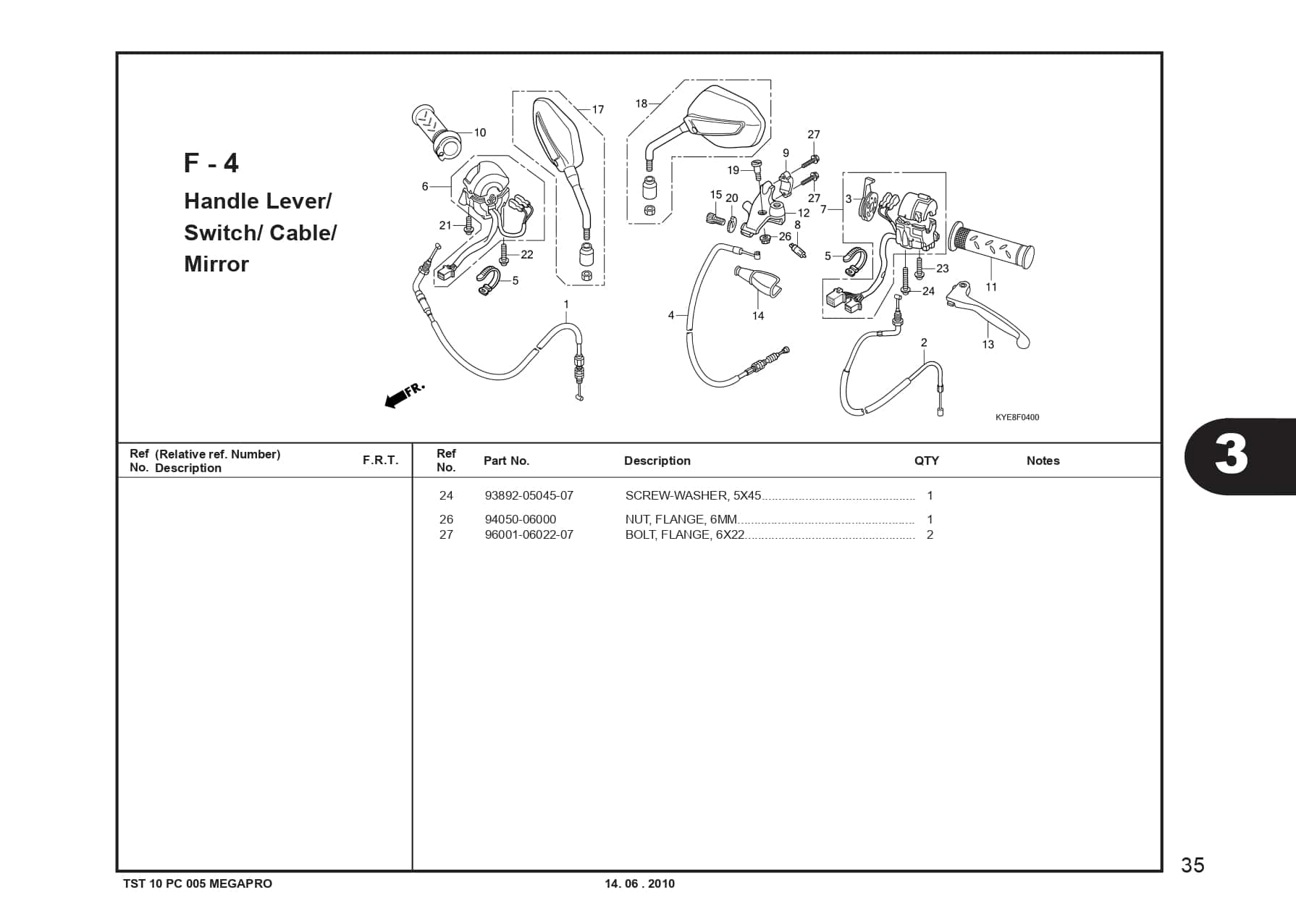

F-4 Handle Lever Swicth Cable Miror – Katalog Suku Cadang Honda New Mega Pro Carbu KYE

#	Informasi Produk	Visual
1	CABLE COMP,THROT Part Number : `17910KSPB01`
2	CABLE COMP,CHOKE Part Number : `17950KSP900`
3	LEVER CHOKE Part Number : `17962KCJ690`
4	CABLE COMP,CLUTCH Part Number : `22870KYE900`
5	BAND B1 WIRE /K5 Part Number : `32161404000`
6	SWITCH ASSY LT ST Part Number : `35150KYE901`
7	SWITCH ASSY WINKER Part Number : `35200KYE901`
8	SWITCH FR LEVER Part Number : `35330413003`
9	HOLDER MASTER CYL Part Number : `45517166006`
10	GRIP COMP THROT Part Number : `53140KSPA70`
11	GRIP L HDL Part Number : `53166KSPA70`
12	BRACKET, HANDLE LEVER Part Number : `53172KT7751`
13	LEVER COMP,L HNDL Part Number : `53178KYE900`
14	BOOT HDL LEVER Part Number : `53180425010`
15	BOLT WIRE ADJ Part Number : `53192349690`
16	MIRROR ASSY R BACK Part Number : `88110KCJ660`
17	MIRROR ASSY L BACK Part Number : `88120KCJ660`
18	BOLT L HDL Part Number : `90113438000`
19	NUT,FIXING Part Number : `90321MR8000`
20	SCREW,WASHER 5X20 Part Number : `938920502007`
21	SCREW,WASHER 5X25 Part Number : `938920502507`
22	SCREW WASHER 5X35 Part Number : `938920503507`
23	SCREW WASHER 5X45 Part Number : `938920504507`
24	NUT,FLANGE 6MM Part Number : `9405006000`
25	BOLT FLANGE 6X22 Part Number : `960010602207`
