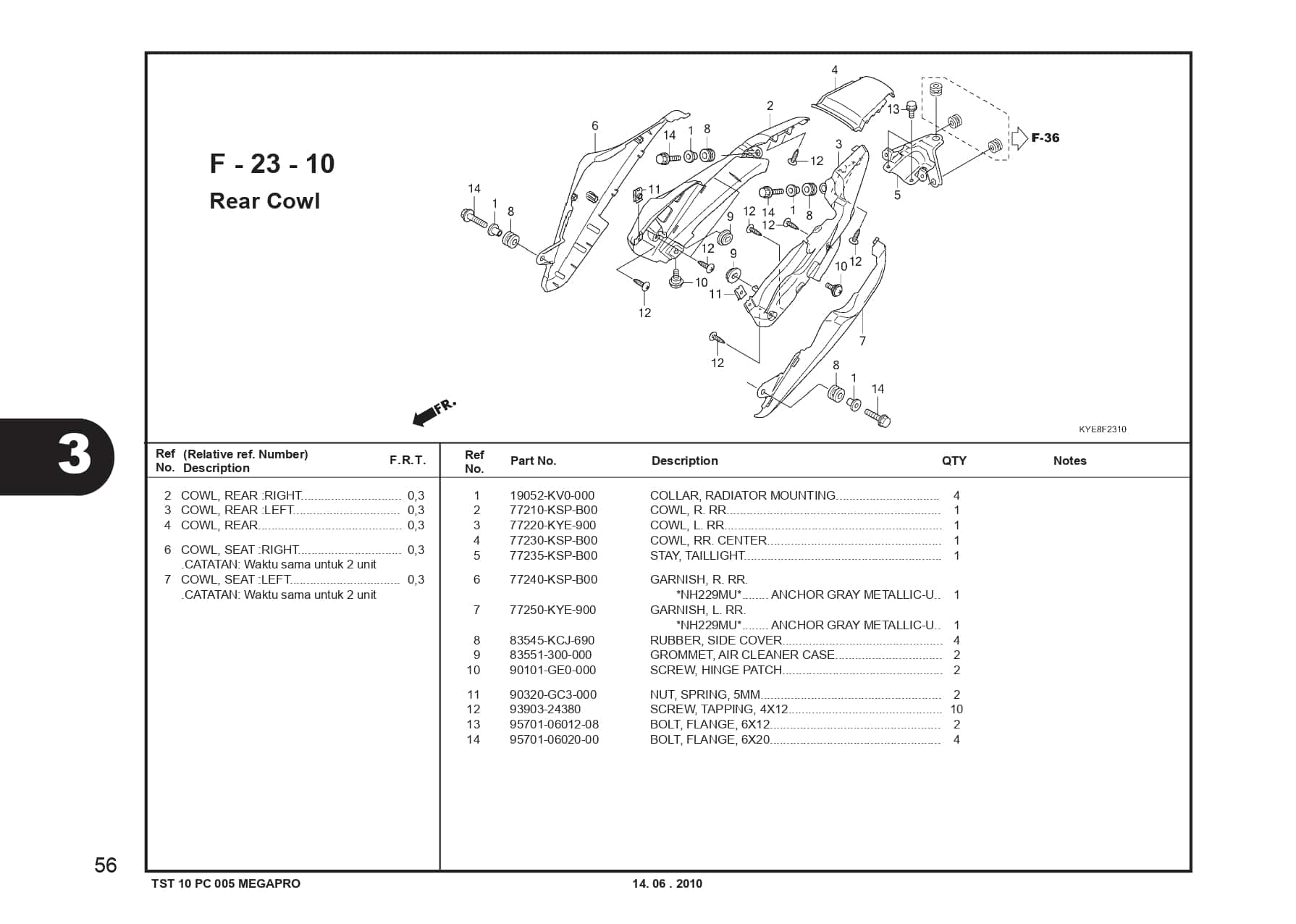

F-23-10 Rear Cowl – Katalog Suku Cadang Honda New Mega Pro Carbu KYE

#	Informasi Produk	Visual
1	COLLAR RADIATOR MOUNTING Part Number : `19052KV0000`
2	COWL RR R Part Number : `77210KSPB00`
3	COWL RR L Part Number : `77220KYE900`
4	COWL CTR RR Part Number : `77230KSPB00`
5	77235KSPB00 Part Number : `77235KSPB00`
6	77240KSPB00 Part Number : `77240KSPB00`
7	77250KYE900 Part Number : `77250KYE900`
8	RUBBER COVER Part Number : `83545KCJ690`
9	CASE GROMMET Part Number : `83551300000`
10	SCREW HINGE PATCH Part Number : `90101GE0000`
11	NUT,SPRING 5MM Part Number : `90320GC3000`
12	SCREW TAPPING 4X12 Part Number : `9390324380`
13	BOLT FLANGE 6X12 Part Number : `957010601208`
14	BOLT FLANGE 6X20 Part Number : `957010602000`
