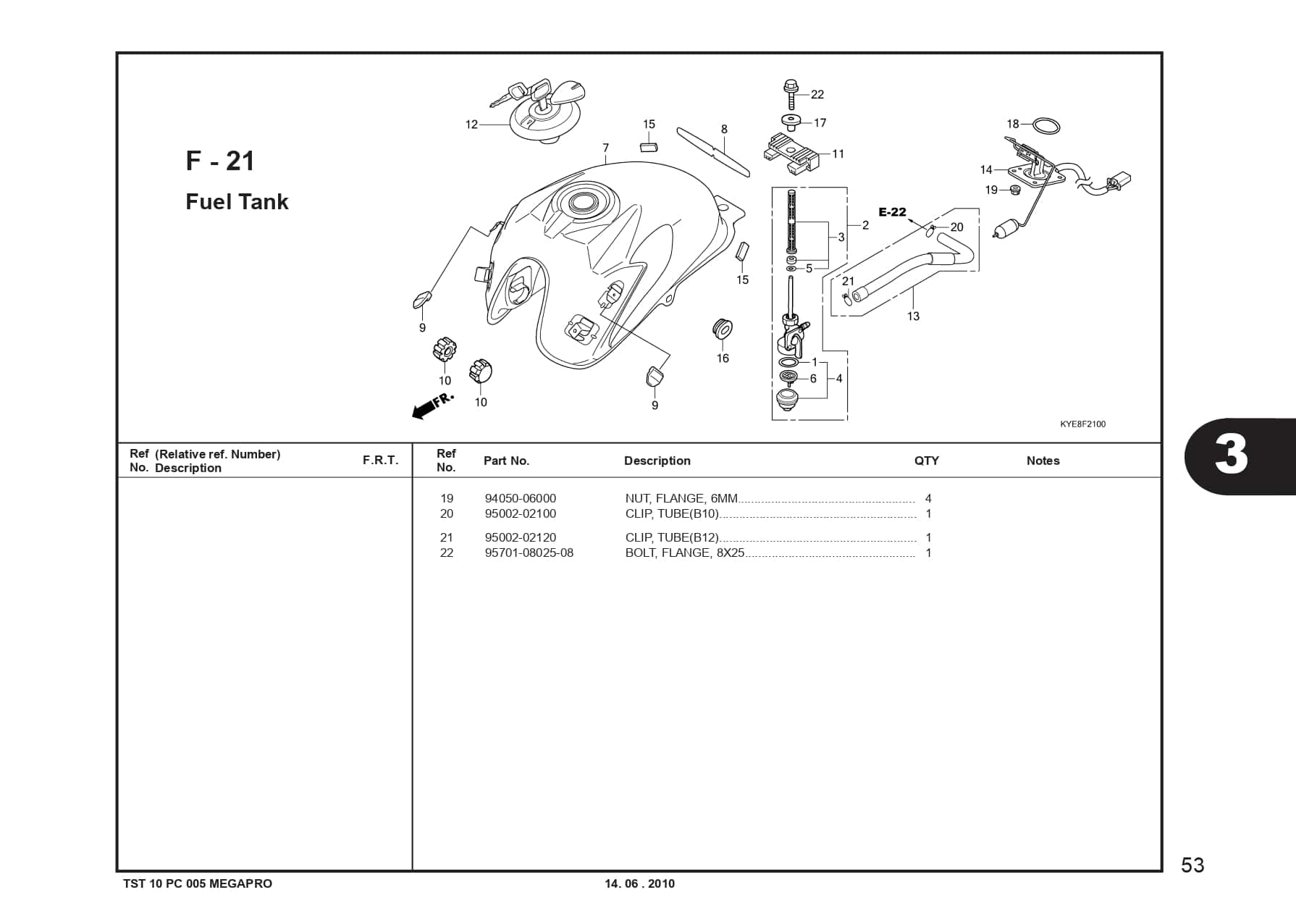

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | 16173001004 | 16173001004 | - |
| 2 | COCK FUEL ASSY | 16950KSPB00 |
|
| 3 | SCREEN SET, FUEL STRAINER | 16952KSPB00 |
|
| 4 | 16953GT4305 | 16953GT4305 | - |
| 5 | O-RING | 16958MA1731 |
|
| 6 | FILTER,CUP | 16959471831 | - |
| 7 | FUEL TANK (DG SL MT) | 17510KYE900DSM | - |
| 8 | FUEL TANK (BLK) | 17510KYE900BNS |
|
| 9 | FUEL TANK (DM RD MT) | 17510KYE900DRM |
|
| 10 | FUEL TANK (VD BL MT) | 17510KYE900VBM | - |
| 11 | FILM TANK PROTECTOR. | 17519KSPB00 |
|
| 12 | RUBBER SHROUD MOUNT | 17529KVN900 |
|
| 13 | CUSHION FR FUEL TANK | 17611KRY970 |
|
| 14 | CUSHION FUEL TANK RR | 17613KSPB00 |
|
| 15 | CAP FUEL FILLER COMP | 17620KEH601 |
|
| 16 | TUBE FUEL | 17681KSPB00 | - |
| 17 | FUEL UNIT | 37800KYE901 |
|
| 18 | RUBBER SIDE COVER | 83547KSPB00 |
|
| 19 | CASE GROMMET | 83551300000 |
|
| 20 | COLLAR FUEL TANK MOUNT | 90324KCJ660 |
|
| 21 | O-RING, 39.5X5 | 91305KEH600 |
|
| 22 | NUT,FLANGE 6MM | 9405006000 |
|
| 23 | CLIP B10,TUBE | 9500202100 |
|
| 24 | CLIP B12,TUBE | 9500202120 |
|
| 25 | BOLT FLANGE 8X25 | 957010802508 |
|
