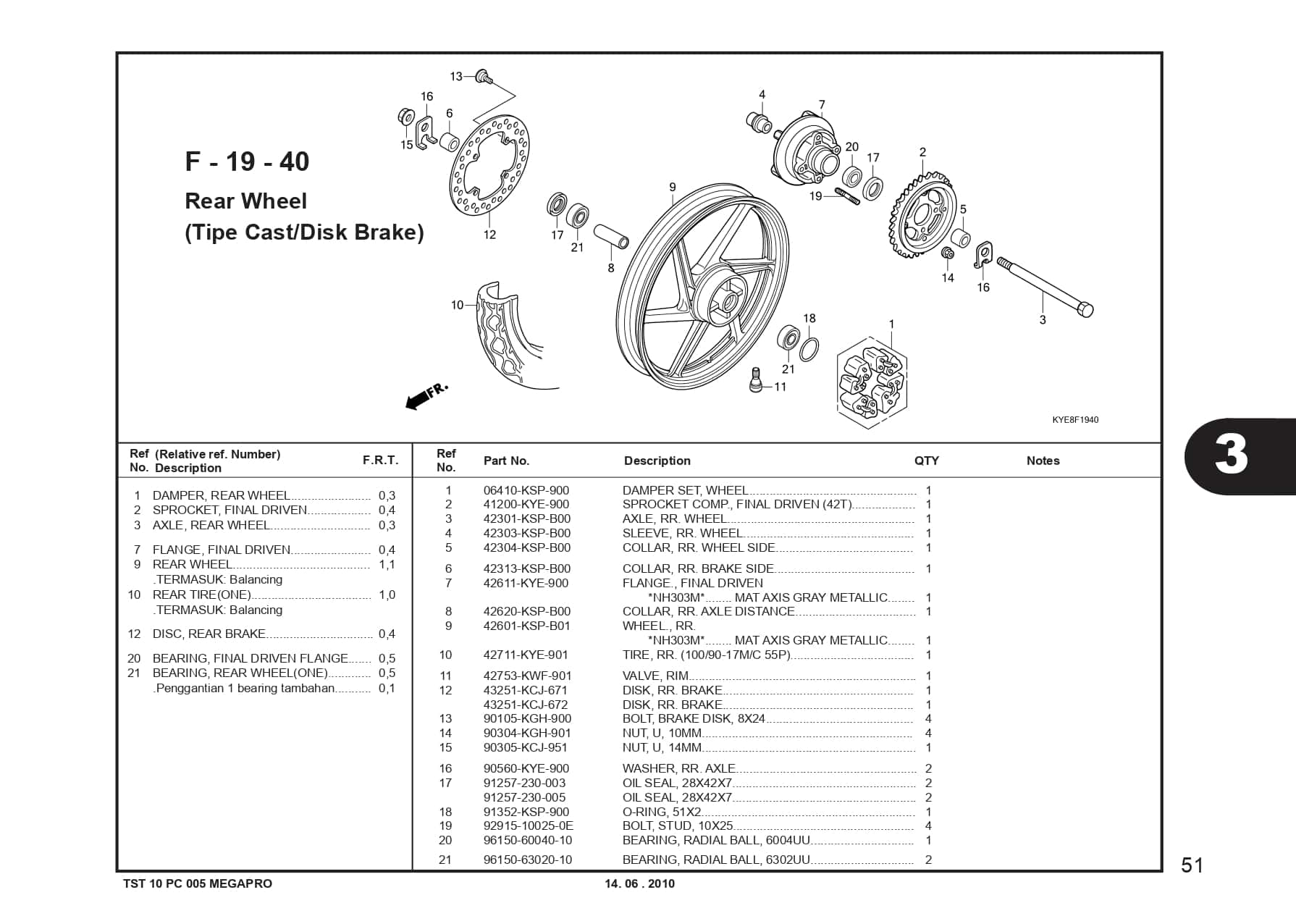

F-19-40 Rear Wheel Tipe Caswheel Disk Brake – Katalog Suku Cadang Honda New Mega Pro Carbu KYE

#	Informasi Produk	Visual
1	DAMPER SET,WHEEL Part Number : `06410KSP900`
1	DAMPER SET,WHEEL Part Number : `41241KSP900`
2	SPRKT COMP FINAL DRIVEN 42T Part Number : `41200KYE900`
3	AXLE RR WHEEL Part Number : `42301KSPB00`
4	SLEEVE, RR. WHEEL Part Number : `42303KSPB00`
5	COLLAR RR WHEEL SIDE Part Number : `42304KSPB00`
6	COLLAR RR BRK SIDE Part Number : `42313KSPB00`
7	FLANGE., FINAL DRIVEN Part Number : `42611KYE900`
8	COLLAR RR AXLE DISTANCE Part Number : `42620KSPB00`
9	CAST, WHEEL RR (MA AX GY) Part Number : `42601KSPB01`
10	TIRE RR TL (100/90-17) Part Number : `42711KYE901`
11	VALVE,RIM(TRITON) Part Number : `42753KWF901`
12	DISK RR BRAKE Part Number : `43251KCJ672`
13	BOLT BRK DISK 8X24 Part Number : `90105KGH900`
14	NUT U10MM Part Number : `90304KGH901`
15	NUT U 14 MM Part Number : `90305KCJ951`
16	WASHER RR AXLE Part Number : `90560KYE900`
17	OIL SEAL, 28X42X7 Part Number : `91257230003`
17	OIL SEAL,28x42x7 Part Number : `91257230005`
18	O-RING,51X2 Part Number : `91352KSP900`
19	BOLT,STUD 2,10X25 Part Number : `92915100250E`
20	BEARING 6302 Part Number : `91051KGA901`
21	BEARING 6004 Part Number : `91052K45N03`
