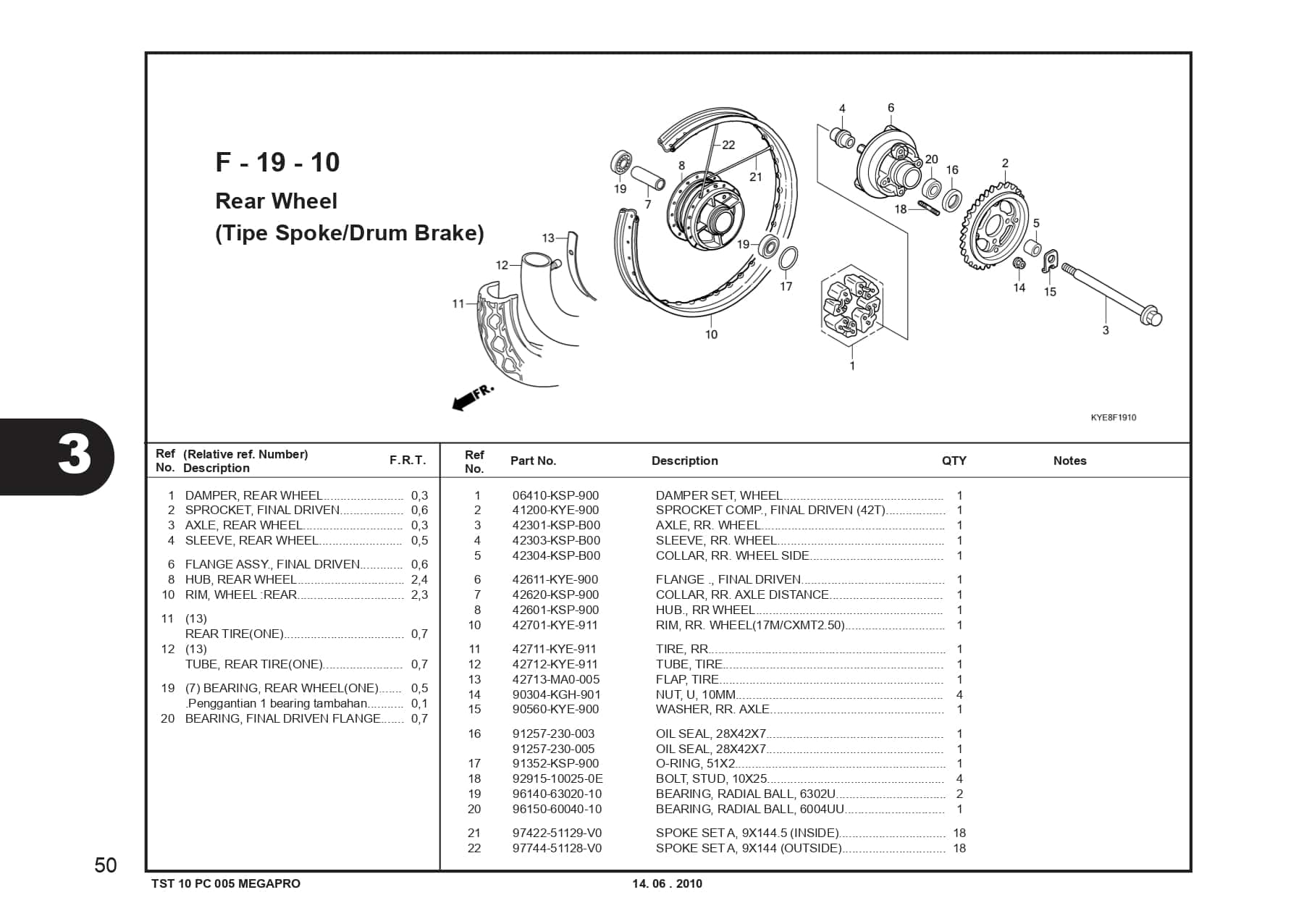

F-19-10 Rear Wheel Tipe Spoke Drum Brake – Katalog Suku Cadang Honda New Mega Pro Carbu KYE

#	Informasi Produk	Visual
1	DAMPER SET,WHEEL Part Number : `06410KSP900`
1	Damper Set Wheel Part Number : `41241KSP900`
2	SPRKT COMP FINAL DRIVEN 42T Part Number : `41200KYE900`
3	AXLE RR WHEEL Part Number : `42301KSPB00`
4	SLEEVE, RR. WHEEL Part Number : `42303KSPB00`
5	COLLAR RR WHEEL SIDE Part Number : `42304KSPB00`
6	FLANGE., FINAL DRIVEN Part Number : `42611KYE900`
7	COLLAR RR AXLE DIST Part Number : `42620KSP900`
8	HUB RR WHEEL (SH SL MT) Part Number : `42601KSP900`
9	RIM, RR WHEEL Part Number : `42701KYE913`
10	TIRE RR TT (100/90-17) Part Number : `42711KYE911`
11	TUBE TIRE 100/90-17 Part Number : `42712KYE911`
12	FLAP,TIRE Part Number : `42713MA0005`
13	NUT U10MM Part Number : `90304KGH901`
14	WASHER RR AXLE Part Number : `90560KYE900`
15	OIL SEAL, 28X42X7 Part Number : `91257230003`
16	OIL SEAL,28x42x7 Part Number : `91257230005`
17	O-RING,51X2 Part Number : `91352KSP900`
18	BOLT,STUD 2,10X25 Part Number : `92915100250E`
19	BEARING 6302 Part Number : `91051KGA901`
20	BEARING 6004 Part Number : `91052K45N03`
21	9742251129V0 Part Number : `9742251129V0`
22	9774451128V0 Part Number : `9774451128V0`
